An interval action is an action that takes place within a certain period of time. More...

#include <CCActionInterval.h>

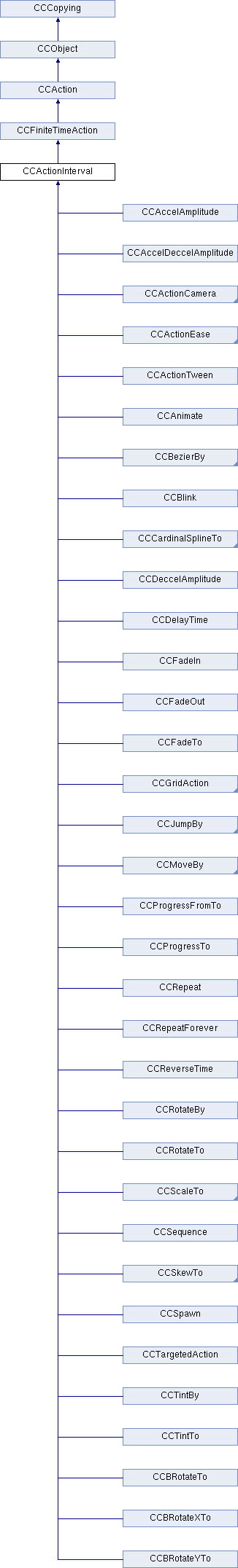

Inheritance diagram for CCActionInterval:

Public Member Functions
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...

bool	initWithDuration (float d)
	initializes the action More...

virtual bool	isDone (void)
	returns true if the action has finished More...

var	isDone ()
	returns true if the action has finished More...

local	isDone ()
	returns true if the action has finished More...

virtual CCObject *	copyWithZone (CCZone *pZone)
virtual void	step (float dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

virtual void	startWithTarget (CCNode *pTarget)
	called before the action start. It will also set the target. More...

local	startWithTarget ( local pTarget)
	called before the action start. It will also set the target. More...

virtual CCActionInterval *	reverse (void)
	returns a reversed action More...

local	reverse ()
	returns a reversed action More...

void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
Public Member Functions inherited from CCFiniteTimeAction
	CCFiniteTimeAction ()
virtual	~CCFiniteTimeAction ()
float	getDuration (void)
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

Public Member Functions inherited from CCAction
	CCAction (void)
	ctor ()
	CCAction ()
virtual	~CCAction (void)
const char *	description ()
virtual void	stop (void)
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

virtual void	update (float time)
	called once per frame. More...

local	update ( local time)
	called once per frame. More...

CCNode *	getTarget (void)
void	setTarget (CCNode *pTarget)
	The action will modify the target properties. More...

var	setTarget ( var pTarget)
	The action will modify the target properties. More...

local	setTarget ( local pTarget)
	The action will modify the target properties. More...

CCNode *	getOriginalTarget (void)
local	getOriginalTarget ()
void	setOriginalTarget (CCNode *pOriginalTarget)
	Set the original target, since target can be nil. More...

int	getTag (void)
var	getTag ()
local	getTag ()
void	setTag (int nTag)
var	setTag ( var nTag)
local	setTag ( local nTag)
Public Member Functions inherited from CCObject
	CCObject (void)
virtual	~CCObject (void)
void	release (void)
void	retain (void)
CCObject *	autorelease (void)
CCObject *	copy (void)
bool	isSingleReference (void) const
unsigned int	retainCount (void) const
virtual bool	isEqual (const CCObject *pObject)
virtual void	acceptVisitor (CCDataVisitor &visitor)

Static Public Member Functions
static CCActionInterval *	create (float d)
	creates the action More...

local	create ( local d)
	creates the action More...

Protected Attributes
float	m_elapsed
bool	m_bFirstTick
var	m_bFirstTick
local	m_bFirstTick
Protected Attributes inherited from CCFiniteTimeAction
float	m_fDuration
	duration in seconds More...

Protected Attributes inherited from CCAction
CCNode *	m_pOriginalTarget
CCNode *	m_pTarget
	The "target". More...

var	m_pTarget
	The "target". More...

local	m_pTarget
	The "target". More...

int	m_nTag
	The action tag. More...

Protected Attributes inherited from CCObject
unsigned int	m_uReference
unsigned int	m_uAutoReleaseCount

Additional Inherited Members
Public Attributes inherited from CCObject
unsigned int	m_uID
int	m_nLuaID

Detailed Description

An interval action is an action that takes place within a certain period of time.

It has an start time, and a finish time. The finish time is the parameter duration plus the start time.

These CCActionInterval actions have some interesting properties, like:

They can run normally (default)
They can run reversed with the reverse method
They can run with the time altered with the Accelerate, AccelDeccel and Speed actions.

For example, you can simulate a Ping Pong effect running the action normally and then running it again in Reverse mode.

Example:

CCAction *pingPongAction = CCSequence::actions(action, action->reverse(), NULL);

Member Function Documentation

virtual CCObject* copyWithZone ( CCZone * pZone)

virtual

Reimplemented from CCAction.

Reimplemented in CCTargetedAction, CCAnimate, CCReverseTime, CCDelayTime, CCTintBy, CCTintTo, CCFadeTo, CCFadeOut, CCFadeIn, CCBlink, CCScaleBy, CCScaleTo, CCBezierTo, CCBezierBy, CCEaseBackInOut, CCEaseBackOut, CCJumpTo, CCEaseBackIn, CCJumpBy, CCEaseBounceInOut, CCEaseBounceOut, CCSkewTo, CCEaseBounceIn, CCMoveTo, CCEaseBounce, CCMoveBy, CCEaseElasticInOut, CCRotateBy, CCEaseElasticOut, CCEaseCubicActionInOut, CCRotateTo, CCEaseElasticIn, CCEaseCubicActionOut, CCEaseElastic, CCEaseCubicActionIn, CCSplitCols, CCEaseCircleActionInOut, CCSplitRows, CCEaseSineInOut, CCSpawn, CCTwirl, CCEaseCircleActionOut, CCEaseSineOut, CCJumpTiles3D, CCEaseCircleActionIn, CCEaseSineIn, CCWaves, CCRepeatForever, CCWavesTiles3D, CCBRotateYTo, CCEaseQuinticActionInOut, CCEaseExponentialInOut, CCBRotateXTo, CCEaseQuinticActionOut, CCLiquid, CCEaseExponentialOut, CCTurnOffTiles, CCBRotateTo, CCEaseQuinticActionIn, CCEaseExponentialIn, CCShaky3D, CCRepeat, CCEaseQuarticActionInOut, CCEaseInOut, CCRipple3D, CCEaseQuarticActionOut, CCCardinalSplineTo, CCEaseOut, CCEaseQuarticActionIn, CCEaseIn, CCOrbitCamera, CCLens3D, CCSequence, CCEaseQuadraticActionInOut, CCShuffleTiles, CCEaseRateAction, CCFlipY3D, CCEaseQuadraticActionOut, CCFlipX3D, CCProgressFromTo, CCEaseQuadraticActionIn, CCShatteredTiles3D, CCActionEase, CCWaves3D, CCProgressTo, CCGridAction, CCShakyTiles3D, and CCEaseBezierAction.

static CCActionInterval* create ( float d)

static

creates the action

var create ( var d)

static

creates the action

local create ( local d)

static

creates the action

float getAmplitudeRate ( void )

var getAmplitudeRate ( )

local getAmplitudeRate ( )

float getElapsed ( void )

inline

how many seconds had elapsed since the actions started to run.

var getElapsed ( )

inline

how many seconds had elapsed since the actions started to run.

local getElapsed ( )

inline

how many seconds had elapsed since the actions started to run.

bool initWithDuration ( float d)

initializes the action

var initWithDuration ( var d)

initializes the action

local initWithDuration ( local d)

initializes the action

virtual bool isDone ( void )

virtual

returns true if the action has finished

Reimplemented from CCAction.

Reimplemented in CCRepeatForever, and CCRepeat.

var isDone ( )

virtual

returns true if the action has finished

Reimplemented from CCAction.

Reimplemented in CCRepeatForever, and CCRepeat.

local isDone ( )

virtual

returns true if the action has finished

Reimplemented from CCAction.

Reimplemented in CCRepeatForever, and CCRepeat.

virtual CCActionInterval* reverse ( void )

virtual

returns a reversed action

Reimplemented from CCFiniteTimeAction.

Reimplemented in CCAnimate, CCReverseTime, CCDelayTime, CCTintBy, CCFadeOut, CCFadeIn, CCBlink, CCScaleBy, CCBezierBy, CCEaseBackInOut, CCEaseBackOut, CCJumpBy, CCEaseBackIn, CCEaseBounceInOut, CCSkewBy, CCEaseBounceOut, CCEaseBounceIn, CCEaseBounce, CCMoveBy, CCEaseElasticInOut, CCRotateBy, CCEaseElasticOut, CCEaseCubicActionInOut, CCEaseElasticIn, CCEaseCubicActionOut, CCEaseElastic, CCEaseCubicActionIn, CCSpawn, CCEaseSineInOut, CCEaseCircleActionInOut, CCEaseCircleActionOut, CCEaseSineOut, CCEaseCircleActionIn, CCEaseSineIn, CCRepeatForever, CCEaseQuinticActionInOut, CCEaseExponentialInOut, CCCardinalSplineBy, CCEaseQuinticActionOut, CCEaseExponentialOut, CCDeccelAmplitude, CCEaseQuinticActionIn, CCEaseExponentialIn, CCRepeat, CCEaseQuarticActionInOut, CCEaseInOut, CCAccelAmplitude, CCCardinalSplineTo, CCEaseQuarticActionOut, CCEaseOut, CCAccelDeccelAmplitude, CCSequence, CCEaseQuarticActionIn, CCEaseIn, CCEaseQuadraticActionInOut, CCEaseRateAction, CCEaseQuadraticActionOut, CCProgressFromTo, CCActionTween, CCEaseQuadraticActionIn, CCActionCamera, CCActionEase, CCGridAction, and CCEaseBezierAction.

var reverse ( )

virtual

returns a reversed action

Reimplemented from CCFiniteTimeAction.

Reimplemented in CCAnimate, CCReverseTime, CCDelayTime, CCTintBy, CCFadeOut, CCFadeIn, CCBlink, CCScaleBy, CCBezierBy, CCEaseBackInOut, CCEaseBackOut, CCJumpBy, CCEaseBackIn, CCEaseBounceInOut, CCSkewBy, CCEaseBounceOut, CCEaseBounceIn, CCEaseBounce, CCMoveBy, CCEaseElasticInOut, CCRotateBy, CCEaseElasticOut, CCEaseCubicActionInOut, CCEaseElasticIn, CCEaseCubicActionOut, CCEaseElastic, CCEaseCubicActionIn, CCSpawn, CCEaseSineInOut, CCEaseCircleActionInOut, CCEaseCircleActionOut, CCEaseSineOut, CCEaseCircleActionIn, CCEaseSineIn, CCRepeatForever, CCEaseQuinticActionInOut, CCEaseExponentialInOut, CCCardinalSplineBy, CCEaseQuinticActionOut, CCEaseExponentialOut, CCDeccelAmplitude, CCEaseQuinticActionIn, CCEaseExponentialIn, CCRepeat, CCEaseQuarticActionInOut, CCEaseInOut, CCAccelAmplitude, CCCardinalSplineTo, CCEaseQuarticActionOut, CCEaseOut, CCAccelDeccelAmplitude, CCSequence, CCEaseQuarticActionIn, CCEaseIn, CCEaseQuadraticActionInOut, CCEaseRateAction, CCEaseQuadraticActionOut, CCProgressFromTo, CCActionTween, CCEaseQuadraticActionIn, CCActionCamera, CCActionEase, CCGridAction, and CCEaseBezierAction.

local reverse ( )

virtual

returns a reversed action

Reimplemented from CCFiniteTimeAction.

Reimplemented in CCAnimate, CCReverseTime, CCDelayTime, CCTintBy, CCFadeOut, CCFadeIn, CCBlink, CCScaleBy, CCBezierBy, CCEaseBackInOut, CCEaseBackOut, CCJumpBy, CCEaseBackIn, CCEaseBounceInOut, CCSkewBy, CCEaseBounceOut, CCEaseBounceIn, CCEaseBounce, CCMoveBy, CCEaseElasticInOut, CCRotateBy, CCEaseElasticOut, CCEaseCubicActionInOut, CCEaseElasticIn, CCEaseCubicActionOut, CCEaseElastic, CCEaseCubicActionIn, CCSpawn, CCEaseSineInOut, CCEaseCircleActionInOut, CCEaseCircleActionOut, CCEaseSineOut, CCEaseCircleActionIn, CCEaseSineIn, CCRepeatForever, CCEaseQuinticActionInOut, CCEaseExponentialInOut, CCCardinalSplineBy, CCEaseQuinticActionOut, CCEaseExponentialOut, CCDeccelAmplitude, CCEaseQuinticActionIn, CCEaseExponentialIn, CCRepeat, CCEaseQuarticActionInOut, CCEaseInOut, CCAccelAmplitude, CCCardinalSplineTo, CCEaseQuarticActionOut, CCEaseOut, CCAccelDeccelAmplitude, CCSequence, CCEaseQuarticActionIn, CCEaseIn, CCEaseQuadraticActionInOut, CCEaseRateAction, CCEaseQuadraticActionOut, CCProgressFromTo, CCActionTween, CCEaseQuadraticActionIn, CCActionCamera, CCActionEase, CCGridAction, and CCEaseBezierAction.

void setAmplitudeRate ( float amp)

var setAmplitudeRate ( var amp)

local setAmplitudeRate ( local amp)

virtual void startWithTarget ( CCNode * pTarget)

virtual

called before the action start. It will also set the target.

Reimplemented from CCAction.

Reimplemented in CCTargetedAction, CCAnimate, CCReverseTime, CCTintBy, CCTintTo, CCFadeTo, CCBlink, CCScaleBy, CCScaleTo, CCBezierTo, CCBezierBy, CCJumpTo, CCJumpBy, CCSkewBy, CCSkewTo, CCMoveTo, CCMoveBy, CCRotateBy, CCRotateTo, CCSplitCols, CCSplitRows, CCSpawn, CCRepeatForever, CCBRotateYTo, CCBRotateXTo, CCCardinalSplineBy, CCTurnOffTiles, CCBRotateTo, CCDeccelAmplitude, CCRepeat, CCAccelAmplitude, CCCardinalSplineTo, CCAccelDeccelAmplitude, CCOrbitCamera, CCSequence, CCShuffleTiles, CCProgressFromTo, CCActionTween, CCActionCamera, CCActionEase, CCProgressTo, and CCGridAction.

var startWithTarget ( var pTarget)

virtual

called before the action start. It will also set the target.

Reimplemented from CCAction.

Reimplemented in CCTargetedAction, CCAnimate, CCReverseTime, CCTintBy, CCTintTo, CCFadeTo, CCBlink, CCScaleBy, CCScaleTo, CCBezierTo, CCBezierBy, CCJumpTo, CCJumpBy, CCSkewBy, CCSkewTo, CCMoveTo, CCMoveBy, CCRotateBy, CCRotateTo, CCSplitCols, CCSplitRows, CCSpawn, CCRepeatForever, CCBRotateYTo, CCBRotateXTo, CCCardinalSplineBy, CCTurnOffTiles, CCBRotateTo, CCDeccelAmplitude, CCRepeat, CCAccelAmplitude, CCCardinalSplineTo, CCAccelDeccelAmplitude, CCOrbitCamera, CCSequence, CCShuffleTiles, CCProgressFromTo, CCActionTween, CCActionCamera, CCActionEase, CCProgressTo, and CCGridAction.

local startWithTarget ( local pTarget)

virtual

called before the action start. It will also set the target.

Reimplemented from CCAction.

Reimplemented in CCTargetedAction, CCAnimate, CCReverseTime, CCTintBy, CCTintTo, CCFadeTo, CCBlink, CCScaleBy, CCScaleTo, CCBezierTo, CCBezierBy, CCJumpTo, CCJumpBy, CCSkewBy, CCSkewTo, CCMoveTo, CCMoveBy, CCRotateBy, CCRotateTo, CCSplitCols, CCSplitRows, CCSpawn, CCRepeatForever, CCBRotateYTo, CCBRotateXTo, CCCardinalSplineBy, CCTurnOffTiles, CCBRotateTo, CCDeccelAmplitude, CCRepeat, CCAccelAmplitude, CCCardinalSplineTo, CCAccelDeccelAmplitude, CCOrbitCamera, CCSequence, CCShuffleTiles, CCProgressFromTo, CCActionTween, CCActionCamera, CCActionEase, CCProgressTo, and CCGridAction.

virtual void step ( float dt)

virtual

called every frame with it's delta time. DON'T override unless you know what you are doing.

Reimplemented from CCAction.

Reimplemented in CCRepeatForever.

var step ( var dt)

virtual

called every frame with it's delta time. DON'T override unless you know what you are doing.

Reimplemented from CCAction.

Reimplemented in CCRepeatForever.

local step ( local dt)

virtual

called every frame with it's delta time. DON'T override unless you know what you are doing.

Reimplemented from CCAction.

Reimplemented in CCRepeatForever.

Member Data Documentation

bool m_bFirstTick

protected

var m_bFirstTick

protected

local m_bFirstTick

protected

float m_elapsed

protected

var m_elapsed

protected

local m_elapsed

protected

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x/cocos2dx/actions/CCActionInterval.h
