Moves a CCNode object x,y pixels by modifying it's position attribute. More...

#include <CCActionInterval.h>

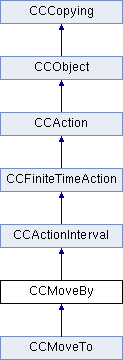

Inheritance diagram for CCMoveBy:

Public Member Functions
bool	initWithDuration (float duration, const CCPoint &deltaPosition)
	initializes the action More...

var	initWithDuration ( var duration, var deltaPosition)
	initializes the action More...

local	initWithDuration ( local duration, local deltaPosition)
	initializes the action More...

virtual CCObject *	copyWithZone (CCZone *pZone)
virtual void	startWithTarget (CCNode *pTarget)
	called before the action start. It will also set the target. More...

virtual CCActionInterval *	reverse (void)
	returns a reversed action More...

local	reverse ()
	returns a reversed action More...

virtual void	update (float time)
	called once per frame. More...

Public Member Functions inherited from CCActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...

bool	initWithDuration (float d)
	initializes the action More...

virtual bool	isDone (void)
	returns true if the action has finished More...

var	isDone ()
	returns true if the action has finished More...

local	isDone ()
	returns true if the action has finished More...

virtual void	step (float dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
Public Member Functions inherited from CCFiniteTimeAction
	CCFiniteTimeAction ()
virtual	~CCFiniteTimeAction ()
float	getDuration (void)
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

Public Member Functions inherited from CCAction
	CCAction (void)
	ctor ()
	CCAction ()
virtual	~CCAction (void)
const char *	description ()
virtual void	stop (void)
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

CCNode *	getTarget (void)
void	setTarget (CCNode *pTarget)
	The action will modify the target properties. More...

var	setTarget ( var pTarget)
	The action will modify the target properties. More...

local	setTarget ( local pTarget)
	The action will modify the target properties. More...

CCNode *	getOriginalTarget (void)
local	getOriginalTarget ()
void	setOriginalTarget (CCNode *pOriginalTarget)
	Set the original target, since target can be nil. More...

int	getTag (void)
var	getTag ()
local	getTag ()
void	setTag (int nTag)
var	setTag ( var nTag)
local	setTag ( local nTag)
Public Member Functions inherited from CCObject
	CCObject (void)
virtual	~CCObject (void)
void	release (void)
void	retain (void)
CCObject *	autorelease (void)
CCObject *	copy (void)
bool	isSingleReference (void) const
unsigned int	retainCount (void) const
virtual bool	isEqual (const CCObject *pObject)
virtual void	acceptVisitor (CCDataVisitor &visitor)

Static Public Member Functions
static CCMoveBy *	create (float duration, const CCPoint &deltaPosition)
	creates the action More...

local	create ( local duration, local deltaPosition)
	creates the action More...

Static Public Member Functions inherited from CCActionInterval
static CCActionInterval *	create (float d)
	creates the action More...

local	create ( local d)
	creates the action More...

Protected Attributes
CCPoint	m_positionDelta
var	m_positionDelta
local	m_positionDelta
CCPoint	m_startPosition
var	m_startPosition
local	m_startPosition
CCPoint	m_previousPosition
var	m_previousPosition
local	m_previousPosition
Protected Attributes inherited from CCActionInterval
float	m_elapsed
bool	m_bFirstTick
var	m_bFirstTick
local	m_bFirstTick
Protected Attributes inherited from CCFiniteTimeAction
float	m_fDuration
	duration in seconds More...

Protected Attributes inherited from CCAction
CCNode *	m_pOriginalTarget
CCNode *	m_pTarget
	The "target". More...

var	m_pTarget
	The "target". More...

local	m_pTarget
	The "target". More...

int	m_nTag
	The action tag. More...

Protected Attributes inherited from CCObject
unsigned int	m_uReference
unsigned int	m_uAutoReleaseCount

Additional Inherited Members
Public Attributes inherited from CCObject
unsigned int	m_uID
int	m_nLuaID

Detailed Description

Moves a CCNode object x,y pixels by modifying it's position attribute.

x and y are relative to the position of the object. Several CCMoveBy actions can be concurrently called, and the resulting movement will be the sum of individual movements.

Since: v2.1beta2-custom

Member Function Documentation

virtual CCObject* copyWithZone ( CCZone * pZone)

virtual

Reimplemented from CCActionInterval.

Reimplemented in CCMoveTo.

static CCMoveBy* create	(	float	duration,
		const CCPoint &	deltaPosition
	)

static

creates the action

var create	(	var	duration,
		var	deltaPosition
	)

static

creates the action

local create	(	local	duration,
		local	deltaPosition
	)

static

creates the action

bool initWithDuration	(	float	duration,
		const CCPoint &	deltaPosition
	)

initializes the action

var initWithDuration	(	var	duration,
		var	deltaPosition
	)

initializes the action

local initWithDuration	(	local	duration,
		local	deltaPosition
	)

initializes the action

virtual CCActionInterval* reverse ( void )

virtual

returns a reversed action

Reimplemented from CCActionInterval.

var reverse ( )

virtual

returns a reversed action

Reimplemented from CCActionInterval.

local reverse ( )

virtual

returns a reversed action

Reimplemented from CCActionInterval.

virtual void startWithTarget ( CCNode * pTarget)

virtual

called before the action start. It will also set the target.

Reimplemented from CCActionInterval.

Reimplemented in CCMoveTo.

var startWithTarget ( var pTarget)

virtual

called before the action start. It will also set the target.

Reimplemented from CCActionInterval.

Reimplemented in CCMoveTo.

local startWithTarget ( local pTarget)

virtual

called before the action start. It will also set the target.

Reimplemented from CCActionInterval.

Reimplemented in CCMoveTo.

virtual void update ( float time)

virtual

called once per frame.

time a value between 0 and 1

For example:

0 means that the action just started
0.5 means that the action is in the middle
1 means that the action is over

Reimplemented from CCAction.

var update ( var time)

virtual

called once per frame.

time a value between 0 and 1

For example:

0 means that the action just started
0.5 means that the action is in the middle
1 means that the action is over

Reimplemented from CCAction.

local update ( local time)

virtual

called once per frame.

time a value between 0 and 1

For example:

0 means that the action just started
0.5 means that the action is in the middle
1 means that the action is over

Reimplemented from CCAction.

Member Data Documentation

CCPoint m_positionDelta

protected

var m_positionDelta

protected

local m_positionDelta

protected

CCPoint m_previousPosition

protected

var m_previousPosition

protected

local m_previousPosition

protected

CCPoint m_startPosition

protected

var m_startPosition

protected

local m_startPosition

protected

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x/cocos2dx/actions/CCActionInterval.h
