FadeOutTRTiles Class Reference

FadeOutTRTiles action Fades out the tiles in a Top-Right direction. More...

#include <CCActionTiledGrid.h>

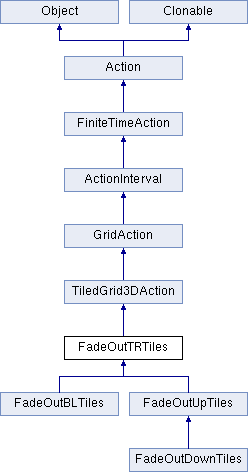

Inheritance diagram for FadeOutTRTiles:
TiledGrid3DAction GridAction ActionInterval FiniteTimeAction Action Object Clonable FadeOutBLTiles FadeOutUpTiles FadeOutDownTiles

Public Member Functions

virtual float testFunc (const Size &pos, float time)
void turnOnTile (const Point &pos)
void turnOffTile (const Point &pos)
virtual void transformTile (const Point &pos, float distance)
virtual void update (float time) override
 called once per frame. More...

virtual FadeOutTRTilesclone () const override
 returns a clone of action More...

- Public Member Functions inherited from TiledGrid3DAction
Quad3 getTile (const Point &position) const
 returns the tile that belongs to a certain position of the grid More...

CC_DEPRECATED_ATTRIBUTE Quad3 tile (const Point &position)
Quad3 getOriginalTile (const Point &position) const
 returns the non-transformed tile that belongs to a certain position of the grid More...

CC_DEPRECATED_ATTRIBUTE Quad3 originalTile (const Point &position)
void setTile (const Point &position, const Quad3 &coords)
 sets a new tile to a certain position of the grid More...

virtual GridBasegetGrid (void)
 returns the grid More...

- Public Member Functions inherited from GridAction
bool initWithDuration (float duration, const Size &gridSize)
 initializes the action with size and duration More...

var initWithDuration ( var duration, var gridSize)
 initializes the action with size and duration More...

local initWithDuration ( local duration, local gridSize)
 initializes the action with size and duration More...

virtual GridActionreverse () const override
 returns a new action that performs the exactly the reverse action More...

virtual void startWithTarget (Node *target) override
 called before the action start. It will also set the target. More...

local startWithTarget ( local target)
 called before the action start. It will also set the target. More...

- Public Member Functions inherited from ActionInterval
float getElapsed (void)
 how many seconds had elapsed since the actions started to run. More...

local getElapsed ()
 how many seconds had elapsed since the actions started to run. More...

bool initWithDuration (float d)
 initializes the action More...

var initWithDuration ( var d)
 initializes the action More...

local initWithDuration ( local d)
 initializes the action More...

void setAmplitudeRate (float amp)
float getAmplitudeRate (void)
virtual bool isDone (void) const override
 return true if the action has finished More...

var isDone ()
 return true if the action has finished More...

local isDone ()
 return true if the action has finished More...

virtual void step (float dt) override
 called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local step ( local dt)
 called every frame with it's delta time. DON'T override unless you know what you are doing. More...

- Public Member Functions inherited from FiniteTimeAction
 FiniteTimeAction ()
virtual ~FiniteTimeAction ()
float getDuration (void) const
 get duration in seconds of the action More...

void setDuration (float duration)
 set duration in seconds of the action More...

- Public Member Functions inherited from Action
 Action (void)
 ctor ()
 Action ()
virtual ~Action (void)
const char * description () const
virtual void stop (void)
 called after the action has finished. More...

var stop ()
 called after the action has finished. More...

local stop ()
 called after the action has finished. More...

NodegetTarget (void) const
void setTarget (Node *target)
 The action will modify the target properties. More...

NodegetOriginalTarget (void) const
local getOriginalTarget ()
void setOriginalTarget (Node *pOriginalTarget)
 Set the original target, since target can be nil. More...

int getTag (void) const
void setTag (int nTag)
- Public Member Functions inherited from Object
 Object ()
 Constructor. More...

virtual ~Object ()
void release ()
 Release the ownership immediately. More...

void retain ()
 Retains the ownership. More...

Objectautorelease ()
 Release the ownership sometime soon automatically. More...

bool isSingleReference () const
 Returns a boolean value that indicates whether there is only one reference to the object. More...

unsigned int retainCount () const
 Returns the object's current reference count. More...

virtual bool isEqual (const Object *object)
 Returns a boolean value that indicates whether this object and a given object are equal. More...

virtual void acceptVisitor (DataVisitor &visitor)
- Public Member Functions inherited from Clonable
virtual ~Clonable ()
CC_DEPRECATED_ATTRIBUTE Objectcopy () const
 returns a copy of the object. More...

local copy ()
 returns a copy of the object. More...


Static Public Member Functions

static FadeOutTRTilescreate (float duration, const Size &gridSize)
 creates the action with the grid size and the duration More...

- Static Public Member Functions inherited from TiledGrid3DAction
static TiledGrid3DActioncreate (float duration, const Size &gridSize)
 creates the action with size and duration More...


Additional Inherited Members

- Public Attributes inherited from Object
unsigned int _ID
 object id, ScriptSupport need public _ID More...

int _luaID
 Lua reference id. More...

- Static Public Attributes inherited from Action
static const int INVALID_TAG = -1
 Default tag used for all the actions. More...

var INVALID_TAG = -1
 Default tag used for all the actions. More...

local INVALID_TAG = -1
 Default tag used for all the actions. More...

- Protected Attributes inherited from GridAction
Size _gridSize

Detailed Description

FadeOutTRTiles action Fades out the tiles in a Top-Right direction.

Member Function Documentation

virtual FadeOutTRTiles* clone ( ) const
overridevirtual

returns a clone of action

Implements TiledGrid3DAction.

Reimplemented in FadeOutDownTiles, FadeOutUpTiles, and FadeOutBLTiles.

static FadeOutTRTiles* create ( float  duration,
const Size gridSize
)
static

creates the action with the grid size and the duration

virtual float testFunc ( const Size pos,
float  time
)
virtual
virtual void transformTile ( const Point pos,
float  distance
)
virtual

Reimplemented in FadeOutUpTiles.

void turnOffTile ( const Point pos)
void turnOnTile ( const Point pos)
virtual void update ( float  time)
overridevirtual

called once per frame.

time a value between 0 and 1

For example:

  • 0 means that the action just started
  • 0.5 means that the action is in the middle
  • 1 means that the action is over

Reimplemented from Action.


The documentation for this class was generated from the following file:
