#include <CCActionGrid3D.h>

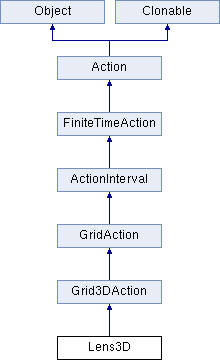

Inheritance diagram for Lens3D:

Public Member Functions
float	getLensEffect (void) const
	Get lens center position. More...

void	setLensEffect (float fLensEffect)
	Set lens center position. More...

void	setConcave (bool bConcave)
	Set whether lens is concave. More...

const Point &	getPosition (void) const
void	setPosition (const Point &position)
bool	initWithDuration (float duration, const Size &gridSize, const Point &position, float radius)
	initializes the action with center position, radius, a grid size and duration More...

virtual Lens3D *	clone () const override
	returns a clone of action More...

virtual void	update (float time) override
	called once per frame. More...

Public Member Functions inherited from Grid3DAction
virtual GridBase *	getGrid (void)
	returns the grid More...

local	getGrid ()
	returns the grid More...

Vertex3F	getVertex (const Point &position) const
	returns the vertex than belongs to certain position in the grid More...

CC_DEPRECATED_ATTRIBUTE Vertex3F	vertex (const Point &position)
Vertex3F	getOriginalVertex (const Point &position) const
	returns the non-transformed vertex than belongs to certain position in the grid More...

CC_DEPRECATED_ATTRIBUTE Vertex3F	originalVertex (const Point &position)
void	setVertex (const Point &position, const Vertex3F &vertex)
	sets a new vertex to a certain position of the grid More...

Public Member Functions inherited from GridAction
bool	initWithDuration (float duration, const Size &gridSize)
	initializes the action with size and duration More...

var	initWithDuration ( var duration, var gridSize)
	initializes the action with size and duration More...

local	initWithDuration ( local duration, local gridSize)
	initializes the action with size and duration More...

virtual GridAction *	reverse () const override
	returns a new action that performs the exactly the reverse action More...

virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...

local	startWithTarget ( local target)
	called before the action start. It will also set the target. More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...

bool	initWithDuration (float d)
	initializes the action More...

var	initWithDuration ( var d)
	initializes the action More...

local	initWithDuration ( local d)
	initializes the action More...

void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
virtual bool	isDone (void) const override
	return true if the action has finished More...

var	isDone ()
	return true if the action has finished More...

local	isDone ()
	return true if the action has finished More...

virtual void	step (float dt) override
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

Public Member Functions inherited from FiniteTimeAction
	FiniteTimeAction ()
virtual	~FiniteTimeAction ()
float	getDuration (void) const
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
	Action (void)
	ctor ()
	Action ()
virtual	~Action (void)
const char *	description () const
virtual void	stop (void)
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

Node *	getTarget (void) const
void	setTarget (Node *target)
	The action will modify the target properties. More...

Node *	getOriginalTarget (void) const
local	getOriginalTarget ()
void	setOriginalTarget (Node *pOriginalTarget)
	Set the original target, since target can be nil. More...

int	getTag (void) const
void	setTag (int nTag)
Public Member Functions inherited from Object
	Object ()
	Constructor. More...

virtual	~Object ()
void	release ()
	Release the ownership immediately. More...

void	retain ()
	Retains the ownership. More...

Object *	autorelease ()
	Release the ownership sometime soon automatically. More...

bool	isSingleReference () const
	Returns a boolean value that indicates whether there is only one reference to the object. More...

unsigned int	retainCount () const
	Returns the object's current reference count. More...

virtual bool	isEqual (const Object *object)
	Returns a boolean value that indicates whether this object and a given object are equal. More...

virtual void	acceptVisitor (DataVisitor &visitor)
Public Member Functions inherited from Clonable
virtual	~Clonable ()
CC_DEPRECATED_ATTRIBUTE Object *	copy () const
	returns a copy of the object. More...

local	copy ()
	returns a copy of the object. More...

Static Public Member Functions
static Lens3D *	create (float duration, const Size &gridSize, const Point &position, float radius)
	creates the action with center position, radius, a grid size and duration More...

Protected Attributes
Point	_position
float	_radius
float	_lensEffect
	lens effect. More...

bool	_concave
	lens is concave. More...

bool	_dirty

Additional Inherited Members
Public Attributes inherited from Object
unsigned int	_ID
	object id, ScriptSupport need public _ID More...

int	_luaID
	Lua reference id. More...

Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Detailed Description

Lens3D action.

Member Function Documentation

virtual Lens3D* clone ( ) const

overridevirtual

returns a clone of action

Implements Grid3DAction.

static Lens3D* create	(	float	duration,
		const Size &	gridSize,
		const Point &	position,
		float	radius
	)

static

creates the action with center position, radius, a grid size and duration

float getLensEffect ( void ) const

inline

Get lens center position.

const Point& getPosition ( void ) const

inline

bool initWithDuration	(	float	duration,
		const Size &	gridSize,
		const Point &	position,
		float	radius
	)

initializes the action with center position, radius, a grid size and duration

void setConcave ( bool bConcave)

inline

Set whether lens is concave.

void setLensEffect ( float fLensEffect)

inline

Set lens center position.

void setPosition ( const Point & position)

virtual void update ( float time)

overridevirtual

called once per frame.

time a value between 0 and 1

For example:

0 means that the action just started
0.5 means that the action is in the middle
1 means that the action is over

Reimplemented from Action.

Member Data Documentation

bool _concave

protected

lens is concave.

(true = concave, false = convex) default is convex i.e. false

bool _dirty

protected

float _lensEffect

protected

lens effect.

Defaults to 0.7 - 0 means no effect, 1 is very strong effect

Point _position

protected

float _radius

protected

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x-develop/cocos2dx/actions/CCActionGrid3D.h
