Moves a Node object to the position x,y. More...

#include <CCActionInterval.h>

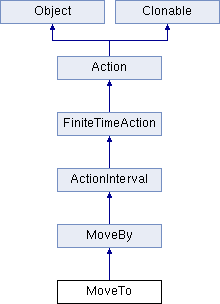

Inheritance diagram for MoveTo:

Public Member Functions
bool	initWithDuration (float duration, const Point &position)
	initializes the action More...

virtual MoveTo *	clone () const override
	returns a clone of action More...

virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...

Public Member Functions inherited from MoveBy
bool	initWithDuration (float duration, const Point &deltaPosition)
	initializes the action More...

virtual MoveBy *	reverse (void) const override
	returns a new action that performs the exactly the reverse action More...

virtual void	update (float time) override
	called once per frame. More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...

bool	initWithDuration (float d)
	initializes the action More...

var	initWithDuration ( var d)
	initializes the action More...

local	initWithDuration ( local d)
	initializes the action More...

void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
virtual bool	isDone (void) const override
	return true if the action has finished More...

var	isDone ()
	return true if the action has finished More...

local	isDone ()
	return true if the action has finished More...

virtual void	step (float dt) override
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

Public Member Functions inherited from FiniteTimeAction
	FiniteTimeAction ()
virtual	~FiniteTimeAction ()
float	getDuration (void) const
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
	Action (void)
	ctor ()
	Action ()
virtual	~Action (void)
const char *	description () const
virtual void	stop (void)
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

Node *	getTarget (void) const
void	setTarget (Node *target)
	The action will modify the target properties. More...

Node *	getOriginalTarget (void) const
local	getOriginalTarget ()
void	setOriginalTarget (Node *pOriginalTarget)
	Set the original target, since target can be nil. More...

int	getTag (void) const
void	setTag (int nTag)
Public Member Functions inherited from Object
	Object ()
	Constructor. More...

virtual	~Object ()
void	release ()
	Release the ownership immediately. More...

void	retain ()
	Retains the ownership. More...

Object *	autorelease ()
	Release the ownership sometime soon automatically. More...

bool	isSingleReference () const
	Returns a boolean value that indicates whether there is only one reference to the object. More...

unsigned int	retainCount () const
	Returns the object's current reference count. More...

virtual bool	isEqual (const Object *object)
	Returns a boolean value that indicates whether this object and a given object are equal. More...

virtual void	acceptVisitor (DataVisitor &visitor)
Public Member Functions inherited from Clonable
virtual	~Clonable ()
CC_DEPRECATED_ATTRIBUTE Object *	copy () const
	returns a copy of the object. More...

local	copy ()
	returns a copy of the object. More...

Static Public Member Functions
static MoveTo *	create (float duration, const Point &position)
	creates the action More...

Static Public Member Functions inherited from MoveBy
static MoveBy *	create (float duration, const Point &deltaPosition)
	creates the action More...

Protected Attributes
Point	_endPosition
Protected Attributes inherited from MoveBy
Point	_positionDelta
Point	_startPosition
Point	_previousPosition
Protected Attributes inherited from ActionInterval
float	_elapsed
bool	_firstTick
Protected Attributes inherited from FiniteTimeAction
float	_duration
	duration in seconds More...

Protected Attributes inherited from Action
Node *	_originalTarget
Node *	_target
	The "target". More...

var	_target
	The "target". More...

local	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Object
unsigned int	_reference
	count of references More...

var	_reference
	count of references More...

local	_reference
	count of references More...

unsigned int	_autoReleaseCount
	count of autorelease More...

var	_autoReleaseCount
	count of autorelease More...

local	_autoReleaseCount
	count of autorelease More...

Additional Inherited Members
Public Attributes inherited from Object
unsigned int	_ID
	object id, ScriptSupport need public _ID More...

int	_luaID
	Lua reference id. More...

Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Detailed Description

Moves a Node object to the position x,y.

x and y are absolute coordinates by modifying it's position attribute. Several MoveTo actions can be concurrently called, and the resulting movement will be the sum of individual movements.

Since: v2.1beta2-custom

Member Function Documentation

virtual MoveTo* clone ( ) const

overridevirtual

returns a clone of action

Reimplemented from MoveBy.

static MoveTo* create	(	float	duration,
		const Point &	position
	)

static

creates the action

bool initWithDuration	(	float	duration,
		const Point &	position
	)

initializes the action

virtual void startWithTarget ( Node * target)

overridevirtual

called before the action start. It will also set the target.

Reimplemented from MoveBy.

Member Data Documentation

Point _endPosition

protected

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x-develop/cocos2dx/actions/CCActionInterval.h
