Ease Elastic Out action. More...

#include <CCActionEase.h>

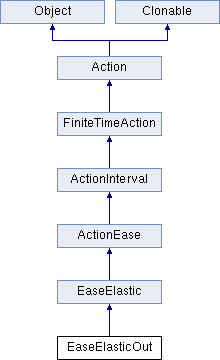

Inheritance diagram for EaseElasticOut:

Public Member Functions
virtual void	update (float time) override
	called once per frame. More...

virtual EaseElasticOut *	clone () const override
	returns a clone of action More...

local	clone ()
	returns a clone of action More...

virtual EaseElastic *	reverse () const override
	returns a new action that performs the exactly the reverse action More...

var	reverse ()
	returns a new action that performs the exactly the reverse action More...

local	reverse ()
	returns a new action that performs the exactly the reverse action More...

Public Member Functions inherited from EaseElastic
bool	initWithAction (ActionInterval *pAction, float fPeriod=0.3f)
	Initializes the action with the inner action and the period in radians (default is 0.3) More...

float	getPeriod (void) const
	get period of the wave in radians. More...

void	setPeriod (float fPeriod)
	set period of the wave in radians. More...

Public Member Functions inherited from ActionEase
virtual	~ActionEase (void)
bool	initWithAction (ActionInterval *pAction)
	initializes the action More...

virtual ActionInterval *	getInnerAction ()
local	getInnerAction ()
virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...

local	startWithTarget ( local target)
	called before the action start. It will also set the target. More...

virtual void	stop (void) override
	called after the action has finished. More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...

bool	initWithDuration (float d)
	initializes the action More...

var	initWithDuration ( var d)
	initializes the action More...

local	initWithDuration ( local d)
	initializes the action More...

void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
virtual bool	isDone (void) const override
	return true if the action has finished More...

var	isDone ()
	return true if the action has finished More...

local	isDone ()
	return true if the action has finished More...

virtual void	step (float dt) override
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

Public Member Functions inherited from FiniteTimeAction
	FiniteTimeAction ()
virtual	~FiniteTimeAction ()
float	getDuration (void) const
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
	Action (void)
	ctor ()
	Action ()
virtual	~Action (void)
const char *	description () const
Node *	getTarget (void) const
void	setTarget (Node *target)
	The action will modify the target properties. More...

Node *	getOriginalTarget (void) const
local	getOriginalTarget ()
void	setOriginalTarget (Node *pOriginalTarget)
	Set the original target, since target can be nil. More...

int	getTag (void) const
void	setTag (int nTag)
Public Member Functions inherited from Object
	Object ()
	Constructor. More...

virtual	~Object ()
void	release ()
	Release the ownership immediately. More...

void	retain ()
	Retains the ownership. More...

Object *	autorelease ()
	Release the ownership sometime soon automatically. More...

bool	isSingleReference () const
	Returns a boolean value that indicates whether there is only one reference to the object. More...

unsigned int	retainCount () const
	Returns the object's current reference count. More...

virtual bool	isEqual (const Object *object)
	Returns a boolean value that indicates whether this object and a given object are equal. More...

virtual void	acceptVisitor (DataVisitor &visitor)
Public Member Functions inherited from Clonable
virtual	~Clonable ()
CC_DEPRECATED_ATTRIBUTE Object *	copy () const
	returns a copy of the object. More...

local	copy ()
	returns a copy of the object. More...

Static Public Member Functions
static EaseElasticOut *	create (ActionInterval *pAction, float fPeriod)
	Creates the action with the inner action and the period in radians (default is 0.3) More...

local	create ( local pAction, local fPeriod)
	Creates the action with the inner action and the period in radians (default is 0.3) More...

static EaseElasticOut *	create (ActionInterval *pAction)
local	create ( local pAction)

Additional Inherited Members
Public Attributes inherited from Object
unsigned int	_ID
	object id, ScriptSupport need public _ID More...

int	_luaID
	Lua reference id. More...

Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Attributes inherited from EaseElastic
float	_period

Detailed Description

Ease Elastic Out action.

Warning: This action doesn't use a bijective function. Actions like Sequence might have an unexpected result when used with this action.

Since: v0.8.2

Member Function Documentation

virtual EaseElasticOut* clone ( ) const

overridevirtual

returns a clone of action

Implements EaseElastic.

var clone ( )

overridevirtual

returns a clone of action

Implements EaseElastic.

local clone ( )

overridevirtual

returns a clone of action

Implements EaseElastic.

static EaseElasticOut* create	(	ActionInterval *	pAction,
		float	fPeriod
	)

static

Creates the action with the inner action and the period in radians (default is 0.3)

var create	(	var	pAction,
		var	fPeriod
	)

static

Creates the action with the inner action and the period in radians (default is 0.3)

local create	(	local	pAction,
		local	fPeriod
	)

static

Creates the action with the inner action and the period in radians (default is 0.3)

static EaseElasticOut* create ( ActionInterval * pAction)

static

var create ( var pAction)

static

local create ( local pAction)

static

virtual EaseElastic* reverse ( ) const

overridevirtual

returns a new action that performs the exactly the reverse action

Implements EaseElastic.

var reverse ( )

overridevirtual

returns a new action that performs the exactly the reverse action

Implements EaseElastic.

local reverse ( )

overridevirtual

returns a new action that performs the exactly the reverse action

Implements EaseElastic.

virtual void update ( float time)

overridevirtual

called once per frame.

time a value between 0 and 1

For example:

0 means that the action just started
0.5 means that the action is in the middle
1 means that the action is over

Reimplemented from ActionEase.

var update ( var time)

overridevirtual

called once per frame.

time a value between 0 and 1

For example:

0 means that the action just started
0.5 means that the action is in the middle
1 means that the action is over

Reimplemented from ActionEase.

local update ( local time)

overridevirtual

called once per frame.

time a value between 0 and 1

For example:

0 means that the action just started
0.5 means that the action is in the middle
1 means that the action is over

Reimplemented from ActionEase.

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x-develop/cocos2dx/actions/CCActionEase.h
