Scales a Node object a zoom factor by modifying it's scale attribute. More...

#include <CCActionInterval.h>

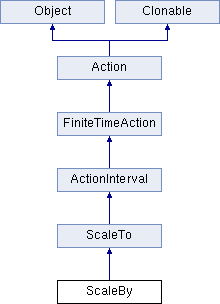

Inheritance diagram for ScaleBy:

Public Member Functions
virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...

virtual ScaleBy *	clone () const override
	returns a clone of action More...

virtual ScaleBy *	reverse (void) const override
	returns a new action that performs the exactly the reverse action More...

Public Member Functions inherited from ScaleTo
virtual void	update (float time) override
	called once per frame. More...

local	update ( local time)
	called once per frame. More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
virtual bool	isDone (void) const override
	return true if the action has finished More...

var	isDone ()
	return true if the action has finished More...

local	isDone ()
	return true if the action has finished More...

virtual void	step (float dt) override
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	get duration in seconds of the action More...

var	getDuration ()
	get duration in seconds of the action More...

local	getDuration ()
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

var	setDuration ( var duration)
	set duration in seconds of the action More...

local	setDuration ( local duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

Node *	getTarget () const
var	getTarget ()
local	getTarget ()
void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

local	setOriginalTarget ( local originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
var	getTag ()
local	getTag ()
void	setTag (int tag)
var	setTag ( var tag)
local	setTag ( local tag)
Public Member Functions inherited from Object
	Object ()
	Constructor. More...

virtual	~Object ()
void	release ()
	Release the ownership immediately. More...

void	retain ()
	Retains the ownership. More...

Object *	autorelease ()
	Release the ownership sometime soon automatically. More...

bool	isSingleReference () const
	Returns a boolean value that indicates whether there is only one reference to the object. More...

unsigned int	retainCount () const
	Returns the object's current reference count. More...

unsigned int	getReferenceCount () const
virtual bool	isEqual (const Object *object)
	Returns a boolean value that indicates whether this object and a given object are equal. More...

virtual void	acceptVisitor (DataVisitor &visitor)
Public Member Functions inherited from Clonable
virtual	~Clonable ()
Object *	copy () const
	returns a copy of the object. More...

var	copy ()
	returns a copy of the object. More...

local	copy ()
	returns a copy of the object. More...

Static Public Member Functions
static ScaleBy *	create (float duration, float s)
	creates the action with the same scale factor for X and Y More...

static ScaleBy *	create (float duration, float sx, float sy)
	creates the action with and X factor and a Y factor More...

Static Public Member Functions inherited from ScaleTo
static ScaleTo *	create (float duration, float s)
	creates the action with the same scale factor for X and Y More...

local	create ( local duration, local s)
	creates the action with the same scale factor for X and Y More...

static ScaleTo *	create (float duration, float sx, float sy)
	creates the action with and X factor and a Y factor More...

Protected Member Functions
	ScaleBy ()
virtual	~ScaleBy ()
Protected Member Functions inherited from ScaleTo
	ScaleTo ()
virtual	~ScaleTo ()
local	~ScaleTo ()
bool	initWithDuration (float duration, float s)
	initializes the action with the same scale factor for X and Y More...

var	initWithDuration ( var duration, var s)
	initializes the action with the same scale factor for X and Y More...

local	initWithDuration ( local duration, local s)
	initializes the action with the same scale factor for X and Y More...

bool	initWithDuration (float duration, float sx, float sy)
	initializes the action with and X factor and a Y factor More...

Protected Member Functions inherited from ActionInterval
bool	initWithDuration (float d)
	initializes the action More...

var	initWithDuration ( var d)
	initializes the action More...

local	initWithDuration ( local d)
	initializes the action More...

Protected Member Functions inherited from FiniteTimeAction
	FiniteTimeAction ()
	FiniteTimeAction ()
	FiniteTimeAction ()
virtual	~FiniteTimeAction ()
var	~FiniteTimeAction ()
local	~FiniteTimeAction ()
Protected Member Functions inherited from Action
	Action ()
	Action ()
	Action ()
virtual	~Action ()
var	~Action ()
local	~Action ()

Additional Inherited Members
Public Attributes inherited from Object
unsigned int	_ID
	object id, ScriptSupport need public _ID More...

int	_luaID
	Lua reference id. More...

Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Attributes inherited from ScaleTo
float	_scaleX
float	_scaleY
float	_startScaleX
var	_startScaleX
local	_startScaleX
float	_startScaleY
var	_startScaleY
local	_startScaleY
float	_endScaleX
var	_endScaleX
local	_endScaleX
float	_endScaleY
var	_endScaleY
local	_endScaleY
float	_deltaX
var	_deltaX
local	_deltaX
float	_deltaY
var	_deltaY
local	_deltaY

Detailed Description

Scales a Node object a zoom factor by modifying it's scale attribute.

Constructor & Destructor Documentation

ScaleBy ( )

inlineprotected

virtual ~ScaleBy ( )

inlineprotectedvirtual

Member Function Documentation

virtual ScaleBy* clone ( ) const

overridevirtual

returns a clone of action

Reimplemented from ScaleTo.

static ScaleBy* create	(	float	duration,
		float	s
	)

static

creates the action with the same scale factor for X and Y

static ScaleBy* create	(	float	duration,
		float	sx,
		float	sy
	)

static

creates the action with and X factor and a Y factor

virtual ScaleBy* reverse ( void ) const

overridevirtual

returns a new action that performs the exactly the reverse action

Reimplemented from ScaleTo.

virtual void startWithTarget ( Node * target)

overridevirtual

called before the action start. It will also set the target.

Reimplemented from ScaleTo.

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x-develop/cocos/2d/CCActionInterval.h
