Node is the base element of the Scene Graph. More...

#include <CCNode.h>

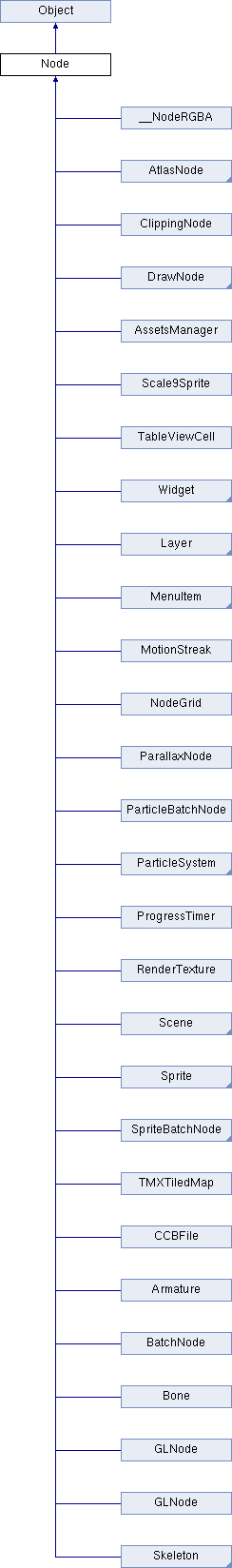

Inheritance diagram for Node:

Public Member Functions
virtual bool	isRunning () const
	Returns whether or not the node accepts event callbacks. More...

void	scheduleUpdateWithPriorityLua (int handler, int priority)
	Schedules for lua script. More...

local	scheduleUpdateWithPriorityLua ( local handler, local priority)
	Schedules for lua script. More...

virtual void	cleanup ()
	Stops all running actions and schedulers. More...

var	cleanup ()
	Stops all running actions and schedulers. More...

local	cleanup ()
	Stops all running actions and schedulers. More...

virtual void	draw ()
	Override this method to draw your own node. More...

local	draw ()
	Override this method to draw your own node. More...

virtual void	visit ()
	Visits this node's children and draw them recursively. More...

local	visit ()
	Visits this node's children and draw them recursively. More...

virtual Scene *	getScene ()
	Returns the Scene that contains the Node. More...

local	getScene ()
	Returns the Scene that contains the Node. More...

virtual Rect	getBoundingBox () const
	Returns a "local" axis aligned bounding box of the node. More...

virtual CC_DEPRECATED_ATTRIBUTE Rect	boundingBox () const
local	boundingBox ()
virtual void	setEventDispatcher (EventDispatcher *dispatcher)
var	setEventDispatcher ( var dispatcher)
local	setEventDispatcher ( local dispatcher)
virtual EventDispatcher *	getEventDispatcher () const
local	getEventDispatcher ()
void	setPhysicsBody (PhysicsBody *body)
	set the PhysicsBody that let the sprite effect with physics More...

var	setPhysicsBody ( var body)
	set the PhysicsBody that let the sprite effect with physics More...

local	setPhysicsBody ( local body)
	set the PhysicsBody that let the sprite effect with physics More...

PhysicsBody *	getPhysicsBody () const
	get the PhysicsBody the sprite have More...

var	getPhysicsBody ()
	get the PhysicsBody the sprite have More...

local	getPhysicsBody ()
	get the PhysicsBody the sprite have More...

virtual bool	updatePhysicsTransform ()
	update rotation and position from physics body More...

var	updatePhysicsTransform ()
	update rotation and position from physics body More...

local	updatePhysicsTransform ()
	update rotation and position from physics body More...

virtual GLubyte	getOpacity () const
virtual GLubyte	getDisplayedOpacity () const
var	getDisplayedOpacity ()
local	getDisplayedOpacity ()
virtual void	setOpacity (GLubyte opacity)
local	setOpacity ( local opacity)
virtual void	updateDisplayedOpacity (GLubyte parentOpacity)
var	updateDisplayedOpacity ( var parentOpacity)
local	updateDisplayedOpacity ( local parentOpacity)
virtual bool	isCascadeOpacityEnabled () const
var	isCascadeOpacityEnabled ()
local	isCascadeOpacityEnabled ()
virtual void	setCascadeOpacityEnabled (bool cascadeOpacityEnabled)
virtual const Color3B &	getColor (void) const
local	getColor ()
virtual const Color3B &	getDisplayedColor () const
local	getDisplayedColor ()
virtual void	setColor (const Color3B &color)
var	setColor ( var color)
local	setColor ( local color)
virtual void	updateDisplayedColor (const Color3B &parentColor)
var	updateDisplayedColor ( var parentColor)
local	updateDisplayedColor ( local parentColor)
virtual bool	isCascadeColorEnabled () const
virtual void	setCascadeColorEnabled (bool cascadeColorEnabled)
virtual void	setOpacityModifyRGB (bool bValue)
var	setOpacityModifyRGB ( var bValue)
local	setOpacityModifyRGB ( local bValue)
virtual bool	isOpacityModifyRGB () const
var	isOpacityModifyRGB ()
local	isOpacityModifyRGB ()
Setters & Getters for Graphic Peroperties
virtual void	setLocalZOrder (int localZOrder)
	LocalZOrder is the 'key' used to sort the node relative to its siblings. More...

virtual CC_DEPRECATED_ATTRIBUTE void	setZOrder (int localZOrder)
local	setZOrder ( local localZOrder)
virtual void	_setLocalZOrder (int z)
virtual int	getLocalZOrder () const
	Gets the local Z order of this node. More...

var	getLocalZOrder ()
	Gets the local Z order of this node. More...

local	getLocalZOrder ()
	Gets the local Z order of this node. More...

virtual CC_DEPRECATED_ATTRIBUTE int	getZOrder () const
var	getZOrder ()
local	getZOrder ()
virtual void	setGlobalZOrder (float globalZOrder)
	Defines the oder in which the nodes are renderer. More...

local	setGlobalZOrder ( local globalZOrder)
	Defines the oder in which the nodes are renderer. More...

virtual float	getGlobalZOrder () const
	Returns the Node's Global Z Order. More...

virtual void	setVertexZ (float vertexZ)
	Sets the 'z' value in the OpenGL Depth Buffer. More...

var	setVertexZ ( var vertexZ)
	Sets the 'z' value in the OpenGL Depth Buffer. More...

local	setVertexZ ( local vertexZ)
	Sets the 'z' value in the OpenGL Depth Buffer. More...

virtual float	getVertexZ () const
	Gets OpenGL Z vertex of this node. More...

virtual void	setScaleX (float scaleX)
	Changes the scale factor on X axis of this node. More...

local	setScaleX ( local scaleX)
	Changes the scale factor on X axis of this node. More...

virtual float	getScaleX () const
	Returns the scale factor on X axis of this node. More...

var	getScaleX ()
	Returns the scale factor on X axis of this node. More...

local	getScaleX ()
	Returns the scale factor on X axis of this node. More...

virtual void	setScaleY (float scaleY)
	Changes the scale factor on Y axis of this node. More...

local	setScaleY ( local scaleY)
	Changes the scale factor on Y axis of this node. More...

virtual float	getScaleY () const
	Returns the scale factor on Y axis of this node. More...

virtual void	setScale (float scale)
	Changes both X and Y scale factor of the node. More...

local	setScale ( local scale)
	Changes both X and Y scale factor of the node. More...

virtual float	getScale () const
	Gets the scale factor of the node, when X and Y have the same scale factor. More...

virtual void	setScale (float scaleX, float scaleY)
	Changes both X and Y scale factor of the node. More...

local	setScale ( local scaleX, local scaleY)
	Changes both X and Y scale factor of the node. More...

virtual void	setPosition (const Point &position)
	Changes the position (x,y) of the node in OpenGL coordinates. More...

virtual const Point &	getPosition () const
	Gets the position (x,y) of the node in OpenGL coordinates. More...

virtual void	setPosition (float x, float y)
	Sets position in a more efficient way. More...

local	setPosition ( local x, local y)
	Sets position in a more efficient way. More...

virtual void	getPosition (float x, float y) const
	Gets position in a more efficient way, returns two number instead of a Point object. More...

var	getPosition ( var x, var y)
	Gets position in a more efficient way, returns two number instead of a Point object. More...

local	getPosition ( local x, local y)
	Gets position in a more efficient way, returns two number instead of a Point object. More...

virtual void	setPositionX (float x)
	Gets/Sets x or y coordinate individually for position. More...

virtual float	getPositionX (void) const
virtual void	setPositionY (float y)
local	setPositionY ( local y)
virtual float	getPositionY (void) const
local	getPositionY ()
virtual void	setSkewX (float fSkewX)
	Changes the X skew angle of the node in degrees. More...

local	setSkewX ( local fSkewX)
	Changes the X skew angle of the node in degrees. More...

virtual float	getSkewX () const
	Returns the X skew angle of the node in degrees. More...

virtual void	setSkewY (float fSkewY)
	Changes the Y skew angle of the node in degrees. More...

local	setSkewY ( local fSkewY)
	Changes the Y skew angle of the node in degrees. More...

virtual float	getSkewY () const
	Returns the Y skew angle of the node in degrees. More...

virtual void	setAnchorPoint (const Point &anchorPoint)
	Sets the anchor point in percent. More...

virtual const Point &	getAnchorPoint () const
	Returns the anchor point in percent. More...

local	getAnchorPoint ()
	Returns the anchor point in percent. More...

virtual const Point &	getAnchorPointInPoints () const
	Returns the anchorPoint in absolute pixels. More...

virtual void	setContentSize (const Size &contentSize)
	Sets the untransformed size of the node. More...

local	setContentSize ( local contentSize)
	Sets the untransformed size of the node. More...

virtual const Size &	getContentSize () const
	Returns the untransformed size of the node. More...

virtual void	setVisible (bool visible)
	Sets whether the node is visible. More...

local	setVisible ( local visible)
	Sets whether the node is visible. More...

virtual bool	isVisible () const
	Determines if the node is visible. More...

virtual void	setRotation (float rotation)
	Sets the rotation (angle) of the node in degrees. More...

local	setRotation ( local rotation)
	Sets the rotation (angle) of the node in degrees. More...

virtual float	getRotation () const
	Returns the rotation of the node in degrees. More...

virtual void	setRotationX (float rotationX)
	Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew. More...

local	setRotationX ( local rotationX)
	Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew. More...

virtual float	getRotationX () const
	Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...

virtual void	setRotationY (float rotationY)
	Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

var	setRotationY ( var rotationY)
	Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

local	setRotationY ( local rotationY)
	Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

virtual float	getRotationY () const
	Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

void	setOrderOfArrival (int orderOfArrival)
	Sets the arrival order when this node has a same ZOrder with other children. More...

int	getOrderOfArrival () const
	Returns the arrival order, indecates which children is added previously. More...

CC_DEPRECATED_ATTRIBUTE void	setGLServerState (int serverState)
CC_DEPRECATED_ATTRIBUTE int	getGLServerState () const
virtual void	ignoreAnchorPointForPosition (bool ignore)
	Sets whether the anchor point will be (0,0) when you position this node. More...

virtual bool	isIgnoreAnchorPointForPosition () const
	Gets whether the anchor point will be (0,0) when you position this node. More...

Children and Parent
virtual void	addChild (Node *child)
	Adds a child to the container with z-order as 0. More...

var	addChild ( var child)
	Adds a child to the container with z-order as 0. More...

local	addChild ( local child)
	Adds a child to the container with z-order as 0. More...

virtual void	addChild (Node *child, int localZOrder)
	Adds a child to the container with a local z-order. More...

var	addChild ( var child, var localZOrder)
	Adds a child to the container with a local z-order. More...

local	addChild ( local child, local localZOrder)
	Adds a child to the container with a local z-order. More...

virtual void	addChild (Node *child, int localZOrder, int tag)
	Adds a child to the container with z order and tag. More...

local	addChild ( local child, local localZOrder, local tag)
	Adds a child to the container with z order and tag. More...

virtual Node *	getChildByTag (int tag)
	Gets a child from the container with its tag. More...

virtual Vector< Node * > &	getChildren ()
	Return an array of children. More...

local	getChildren ()
	Return an array of children. More...

virtual const Vector< Node * > &	getChildren () const
local	getChildren ()
virtual ssize_t	getChildrenCount () const
	Get the amount of children. More...

virtual void	setParent (Node *parent)
	Sets the parent node. More...

local	setParent ( local parent)
	Sets the parent node. More...

virtual Node *	getParent ()
	Returns a pointer to the parent node. More...

virtual const Node *	getParent () const
virtual void	removeFromParent ()
	Removes this node itself from its parent node with a cleanup. More...

virtual void	removeFromParentAndCleanup (bool cleanup)
	Removes this node itself from its parent node. More...

local	removeFromParent ( local cleanup)
	Removes this node itself from its parent node. More...

virtual void	removeChild (Node *child, bool cleanup=true)
	Removes a child from the container. More...

virtual void	removeChildByTag (int tag, bool cleanup=true)
	Removes a child from the container by tag value. More...

virtual void	removeAllChildren ()
	Removes all children from the container with a cleanup. More...

virtual void	removeAllChildrenWithCleanup (bool cleanup)
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...

local	removeAllChildren ( local cleanup)
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...

virtual void	reorderChild (Node *child, int localZOrder)
	Reorders a child according to a new z value. More...

virtual void	sortAllChildren ()
	Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...

var	sortAllChildren ()
	Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...

local	sortAllChildren ()
	Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...

Tag & User data
virtual int	getTag () const
	Returns a tag that is used to identify the node easily. More...

local	getTag ()
	Returns a tag that is used to identify the node easily. More...

virtual void	setTag (int tag)
	Changes the tag that is used to identify the node easily. More...

local	setTag ( local tag)
	Changes the tag that is used to identify the node easily. More...

virtual void *	getUserData ()
	Returns a custom user data pointer. More...

virtual const void *	getUserData () const
virtual void	setUserData (void *userData)
	Sets a custom user data pointer. More...

virtual Object *	getUserObject ()
	Returns a user assigned Object. More...

virtual const Object *	getUserObject () const
virtual void	setUserObject (Object *userObject)
	Returns a user assigned Object. More...

local	setUserObject ( local userObject)
	Returns a user assigned Object. More...

Shader Program
virtual GLProgram *	getShaderProgram ()
	Return the shader program currently used for this node. More...

virtual const GLProgram *	getShaderProgram () const
local	getShaderProgram ()
virtual void	setShaderProgram (GLProgram *shaderProgram)
	Sets the shader program for this node. More...

local	setShaderProgram ( local shaderProgram)
	Sets the shader program for this node. More...

Event Callbacks
virtual void	onEnter ()
	Event callback that is invoked every time when Node enters the 'stage'. More...

virtual void	onEnterTransitionDidFinish ()
	Event callback that is invoked when the Node enters in the 'stage'. More...

virtual void	onExit ()
	Event callback that is invoked every time the Node leaves the 'stage'. More...

virtual void	onExitTransitionDidStart ()
	Event callback that is called every time the Node leaves the 'stage'. More...

Actions
virtual void	setActionManager (ActionManager *actionManager)
	Sets the ActionManager object that is used by all actions. More...

virtual ActionManager *	getActionManager ()
	Gets the ActionManager object that is used by all actions. More...

virtual const ActionManager *	getActionManager () const
local	getActionManager ()
Action *	runAction (Action *action)
	Executes an action, and returns the action that is executed. More...

var	runAction ( var action)
	Executes an action, and returns the action that is executed. More...

local	runAction ( local action)
	Executes an action, and returns the action that is executed. More...

void	stopAllActions ()
	Stops and removes all actions from the running action list . More...

void	stopAction (Action *action)
	Stops and removes an action from the running action list. More...

var	stopAction ( var action)
	Stops and removes an action from the running action list. More...

local	stopAction ( local action)
	Stops and removes an action from the running action list. More...

void	stopActionByTag (int tag)
	Removes an action from the running action list by its tag. More...

var	stopActionByTag ( var tag)
	Removes an action from the running action list by its tag. More...

local	stopActionByTag ( local tag)
	Removes an action from the running action list by its tag. More...

Action *	getActionByTag (int tag)
	Gets an action from the running action list by its tag. More...

var	getActionByTag ( var tag)
	Gets an action from the running action list by its tag. More...

local	getActionByTag ( local tag)
	Gets an action from the running action list by its tag. More...

ssize_t	getNumberOfRunningActions () const
	Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays). More...

CC_DEPRECATED_ATTRIBUTE ssize_t	numberOfRunningActions () const
local	numberOfRunningActions ()
Scheduler and Timer
virtual void	setScheduler (Scheduler *scheduler)
	Sets a Scheduler object that is used to schedule all "updates" and timers. More...

virtual Scheduler *	getScheduler ()
	Gets a Sheduler object. More...

virtual const Scheduler *	getScheduler () const
local	getScheduler ()
bool	isScheduled (SEL_SCHEDULE selector)
	Checks whether a selector is scheduled. More...

void	scheduleUpdate (void)
	Schedules the "update" method. More...

void	scheduleUpdateWithPriority (int priority)
	Schedules the "update" method with a custom priority. More...

void	unscheduleUpdate (void)
var	unscheduleUpdate ()
local	unscheduleUpdate ()
void	schedule (SEL_SCHEDULE selector, float interval, unsigned int repeat, float delay)
	Schedules a custom selector. More...

void	schedule (SEL_SCHEDULE selector, float interval)
	Schedules a custom selector with an interval time in seconds. More...

void	scheduleOnce (SEL_SCHEDULE selector, float delay)
	Schedules a selector that runs only once, with a delay of 0 or larger. More...

void	schedule (SEL_SCHEDULE selector)
	Schedules a custom selector, the scheduled selector will be ticked every frame. More...

void	unschedule (SEL_SCHEDULE selector)
	Unschedules a custom selector. More...

void	unscheduleAllSelectors (void)
	Unschedule all scheduled selectors: custom selectors, and the 'update' selector. More...

var	unscheduleAllSelectors ()
	Unschedule all scheduled selectors: custom selectors, and the 'update' selector. More...

void	resume (void)
	Resumes all scheduled selectors, actions and event listeners. More...

void	pause (void)
	Pauses all scheduled selectors, actions and event listeners. More...

var	pause ()
	Pauses all scheduled selectors, actions and event listeners. More...

local	pause ()
	Pauses all scheduled selectors, actions and event listeners. More...

CC_DEPRECATED_ATTRIBUTE void	resumeSchedulerAndActions (void)
	Resumes all scheduled selectors, actions and event listeners. More...

local	resumeSchedulerAndActions ()
	Resumes all scheduled selectors, actions and event listeners. More...

CC_DEPRECATED_ATTRIBUTE void	pauseSchedulerAndActions (void)
	Pauses all scheduled selectors, actions and event listeners. More...

local	pauseSchedulerAndActions ()
	Pauses all scheduled selectors, actions and event listeners. More...

virtual void	update (float delta)
var	update ( var delta)
local	update ( local delta)
Transformations
void	transform ()
	Performs OpenGL view-matrix transformation based on position, scale, rotation and other attributes. More...

void	transformAncestors ()
	Performs OpenGL view-matrix transformation of it's ancestors. More...

virtual void	updateTransform ()
	Calls children's updateTransform() method recursively. More...

var	updateTransform ()
	Calls children's updateTransform() method recursively. More...

local	updateTransform ()
	Calls children's updateTransform() method recursively. More...

virtual const kmMat4 &	getNodeToParentTransform () const
	Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates. More...

virtual AffineTransform	getNodeToParentAffineTransform () const
local	getNodeToParentAffineTransform ()
virtual void	setNodeToParentTransform (const kmMat4 &transform)
	Sets the Transformation matrix manually. More...

virtual CC_DEPRECATED_ATTRIBUTE AffineTransform	nodeToParentTransform () const
local	nodeToParentTransform ()
virtual const kmMat4 &	getParentToNodeTransform () const
	Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates. More...

local	getParentToNodeTransform ()
	Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates. More...

virtual AffineTransform	getParentToNodeAffineTransform () const
local	getParentToNodeAffineTransform ()
virtual CC_DEPRECATED_ATTRIBUTE AffineTransform	parentToNodeTransform () const
local	parentToNodeTransform ()
virtual kmMat4	getNodeToWorldTransform () const
	Returns the world affine transform matrix. More...

virtual AffineTransform	getNodeToWorldAffineTransform () const
local	getNodeToWorldAffineTransform ()
virtual CC_DEPRECATED_ATTRIBUTE AffineTransform	nodeToWorldTransform () const
local	nodeToWorldTransform ()
virtual kmMat4	getWorldToNodeTransform () const
	Returns the inverse world affine transform matrix. More...

local	getWorldToNodeTransform ()
	Returns the inverse world affine transform matrix. More...

virtual AffineTransform	getWorldToNodeAffineTransform () const
local	getWorldToNodeAffineTransform ()
virtual CC_DEPRECATED_ATTRIBUTE AffineTransform	worldToNodeTransform () const
local	worldToNodeTransform ()
Coordinate Converters
Point	convertToNodeSpace (const Point &worldPoint) const
	Converts a Point to node (local) space coordinates. More...

Point	convertToWorldSpace (const Point &nodePoint) const
	Converts a Point to world space coordinates. More...

Point	convertToNodeSpaceAR (const Point &worldPoint) const
	Converts a Point to node (local) space coordinates. More...

var	convertToNodeSpaceAR ( var worldPoint)
	Converts a Point to node (local) space coordinates. More...

local	convertToNodeSpaceAR ( local worldPoint)
	Converts a Point to node (local) space coordinates. More...

Point	convertToWorldSpaceAR (const Point &nodePoint) const
	Converts a local Point to world space coordinates.The result is in Points. More...

Point	convertTouchToNodeSpace (Touch *touch) const
	convenience methods which take a Touch instead of Point More...

Point	convertTouchToNodeSpaceAR (Touch *touch) const
	converts a Touch (world coordinates) into a local coordinate. More...

var	convertTouchToNodeSpaceAR ( var touch)
	converts a Touch (world coordinates) into a local coordinate. More...

local	convertTouchToNodeSpaceAR ( local touch)
	converts a Touch (world coordinates) into a local coordinate. More...

void	setAdditionalTransform (const AffineTransform &additionalTransform)
	Sets an additional transform matrix to the node. More...

var	setAdditionalTransform ( var additionalTransform)
	Sets an additional transform matrix to the node. More...

local	setAdditionalTransform ( local additionalTransform)
	Sets an additional transform matrix to the node. More...

void	setAdditionalTransform (const kmMat4 &additionalTransform)
component functions
Component *	getComponent (const std::string &pName)
	gets a component by its name More...

var	getComponent ( var pName)
	gets a component by its name More...

local	getComponent ( local pName)
	gets a component by its name More...

virtual bool	addComponent (Component *pComponent)
	adds a component More...

var	addComponent ( var pComponent)
	adds a component More...

local	addComponent ( local pComponent)
	adds a component More...

virtual bool	removeComponent (const std::string &pName)
	removes a component by its name More...

var	removeComponent ( var pName)
	removes a component by its name More...

local	removeComponent ( local pName)
	removes a component by its name More...

virtual void	removeAllComponents ()
	removes all components More...

Public Member Functions inherited from Object
	Object ()
	Constructor. More...

virtual	~Object ()
void	release ()
	Release the ownership immediately. More...

void	retain ()
	Retains the ownership. More...

Object *	autorelease ()
	Release the ownership sometime soon automatically. More...

bool	isSingleReference () const
	Returns a boolean value that indicates whether there is only one reference to the object. More...

unsigned int	retainCount () const
	Returns the object's current reference count. More...

unsigned int	getReferenceCount () const
virtual bool	isEqual (const Object *object)
	Returns a boolean value that indicates whether this object and a given object are equal. More...

virtual void	acceptVisitor (DataVisitor &visitor)

Static Public Attributes
static const int	INVALID_TAG = -1
	Default tag used for all the nodes. More...

var	INVALID_TAG = -1
	Default tag used for all the nodes. More...

local	INVALID_TAG = -1
	Default tag used for all the nodes. More...

Protected Member Functions
	Node ()
	Node ()
	Node ()
virtual	~Node ()
local	~Node ()
virtual bool	init ()
local	init ()
void	childrenAlloc (void)
	lazy allocs More...

var	childrenAlloc ()
	lazy allocs More...

local	childrenAlloc ()
	lazy allocs More...

void	insertChild (Node *child, int z)
	helper that reorder a child More...

var	insertChild ( var child, var z)
	helper that reorder a child More...

local	insertChild ( local child, local z)
	helper that reorder a child More...

void	detachChild (Node *child, ssize_t index, bool doCleanup)
	Removes a child, call child->onExit(), do cleanup, remove it from children array. More...

var	detachChild ( var child, var index, var doCleanup)
	Removes a child, call child->onExit(), do cleanup, remove it from children array. More...

local	detachChild ( local child, local index, local doCleanup)
	Removes a child, call child->onExit(), do cleanup, remove it from children array. More...

Point	convertToWindowSpace (const Point &nodePoint) const
	Convert cocos2d coordinates to UI windows coordinate. More...

var	convertToWindowSpace ( var nodePoint)
	Convert cocos2d coordinates to UI windows coordinate. More...

local	convertToWindowSpace ( local nodePoint)
	Convert cocos2d coordinates to UI windows coordinate. More...

virtual void	updateCascadeOpacity ()
virtual void	disableCascadeOpacity ()
virtual void	updateCascadeColor ()
virtual void	disableCascadeColor ()
virtual void	updateColor ()
var	updateColor ()
local	updateColor ()

Protected Attributes
float	_rotationX
	rotation angle on x-axis More...

float	_rotationY
	rotation angle on y-axis More...

var	_rotationY
	rotation angle on y-axis More...

local	_rotationY
	rotation angle on y-axis More...

float	_scaleX
	scaling factor on x-axis More...

var	_scaleX
	scaling factor on x-axis More...

local	_scaleX
	scaling factor on x-axis More...

float	_scaleY
	scaling factor on y-axis More...

var	_scaleY
	scaling factor on y-axis More...

local	_scaleY
	scaling factor on y-axis More...

Point	_position
	position of the node More...

var	_position
	position of the node More...

local	_position
	position of the node More...

float	_skewX
	skew angle on x-axis More...

var	_skewX
	skew angle on x-axis More...

local	_skewX
	skew angle on x-axis More...

float	_skewY
	skew angle on y-axis More...

var	_skewY
	skew angle on y-axis More...

local	_skewY
	skew angle on y-axis More...

Point	_anchorPointInPoints
	anchor point in points More...

var	_anchorPointInPoints
	anchor point in points More...

local	_anchorPointInPoints
	anchor point in points More...

Point	_anchorPoint
	anchor point normalized (NOT in points) More...

var	_anchorPoint
	anchor point normalized (NOT in points) More...

local	_anchorPoint
	anchor point normalized (NOT in points) More...

Size	_contentSize
	untransformed size of the node More...

var	_contentSize
	untransformed size of the node More...

local	_contentSize
	untransformed size of the node More...

kmMat4	_modelViewTransform
	ModelView transform of the Node. More...

var	_modelViewTransform
	ModelView transform of the Node. More...

local	_modelViewTransform
	ModelView transform of the Node. More...

kmMat4	_additionalTransform
	transform More...

var	_additionalTransform
	transform More...

local	_additionalTransform
	transform More...

kmMat4	_transform
	transform More...

var	_transform
	transform More...

local	_transform
	transform More...

kmMat4	_inverse
	inverse transform More...

var	_inverse
	inverse transform More...

local	_inverse
	inverse transform More...

bool	_useAdditionalTransform
	The flag to check whether the additional transform is dirty. More...

var	_useAdditionalTransform
	The flag to check whether the additional transform is dirty. More...

local	_useAdditionalTransform
	The flag to check whether the additional transform is dirty. More...

bool	_transformDirty
	transform dirty flag More...

var	_transformDirty
	transform dirty flag More...

local	_transformDirty
	transform dirty flag More...

bool	_inverseDirty
	inverse transform dirty flag More...

var	_inverseDirty
	inverse transform dirty flag More...

local	_inverseDirty
	inverse transform dirty flag More...

int	_localZOrder
	Local order (relative to its siblings) used to sort the node. More...

var	_localZOrder
	Local order (relative to its siblings) used to sort the node. More...

local	_localZOrder
	Local order (relative to its siblings) used to sort the node. More...

float	_globalZOrder
	Global order used to sort the node. More...

var	_globalZOrder
	Global order used to sort the node. More...

local	_globalZOrder
	Global order used to sort the node. More...

float	_vertexZ
	OpenGL real Z vertex. More...

var	_vertexZ
	OpenGL real Z vertex. More...

local	_vertexZ
	OpenGL real Z vertex. More...

Vector< Node * >	_children
	array of children nodes More...

var	_children
	array of children nodes More...

local	_children
	array of children nodes More...

Node *	_parent
	weak reference to parent node More...

var	_parent
	weak reference to parent node More...

local	_parent
	weak reference to parent node More...

int	_tag
	a tag. Can be any number you assigned just to identify this node More...

var	_tag
	a tag. Can be any number you assigned just to identify this node More...

local	_tag
	a tag. Can be any number you assigned just to identify this node More...

void *	_userData
	A user assingned void pointer, Can be point to any cpp object. More...

var	_userData
	A user assingned void pointer, Can be point to any cpp object. More...

local	_userData
	A user assingned void pointer, Can be point to any cpp object. More...

Object *	_userObject
	A user assigned Object. More...

var	_userObject
	A user assigned Object. More...

local	_userObject
	A user assigned Object. More...

GLProgram *	_shaderProgram
	OpenGL shader. More...

var	_shaderProgram
	OpenGL shader. More...

local	_shaderProgram
	OpenGL shader. More...

int	_orderOfArrival
	used to preserve sequence while sorting children with the same localZOrder More...

var	_orderOfArrival
	used to preserve sequence while sorting children with the same localZOrder More...

local	_orderOfArrival
	used to preserve sequence while sorting children with the same localZOrder More...

Scheduler *	_scheduler
	scheduler used to schedule timers and updates More...

var	_scheduler
	scheduler used to schedule timers and updates More...

local	_scheduler
	scheduler used to schedule timers and updates More...

ActionManager *	_actionManager
	a pointer to ActionManager singleton, which is used to handle all the actions More...

var	_actionManager
	a pointer to ActionManager singleton, which is used to handle all the actions More...

local	_actionManager
	a pointer to ActionManager singleton, which is used to handle all the actions More...

EventDispatcher *	_eventDispatcher
	event dispatcher used to dispatch all kinds of events More...

var	_eventDispatcher
	event dispatcher used to dispatch all kinds of events More...

local	_eventDispatcher
	event dispatcher used to dispatch all kinds of events More...

bool	_running
	is running More...

bool	_visible
	is this node visible More...

var	_visible
	is this node visible More...

local	_visible
	is this node visible More...

bool	_ignoreAnchorPointForPosition
	true if the Anchor Point will be (0,0) when you position the Node, false otherwise. More...

var	_ignoreAnchorPointForPosition
	true if the Anchor Point will be (0,0) when you position the Node, false otherwise. More...

local	_ignoreAnchorPointForPosition
	true if the Anchor Point will be (0,0) when you position the Node, false otherwise. More...

bool	_reorderChildDirty
	children order dirty flag More...

bool	_isTransitionFinished
	flag to indicate whether the transition was finished More...

var	_isTransitionFinished
	flag to indicate whether the transition was finished More...

local	_isTransitionFinished
	flag to indicate whether the transition was finished More...

int	_scriptHandler
	script handler for onEnter() & onExit(), used in Javascript binding and Lua binding. More...

var	_scriptHandler
	script handler for onEnter() & onExit(), used in Javascript binding and Lua binding. More...

local	_scriptHandler
	script handler for onEnter() & onExit(), used in Javascript binding and Lua binding. More...

int	_updateScriptHandler
	script handler for update() callback per frame, which is invoked from lua & javascript. More...

var	_updateScriptHandler
	script handler for update() callback per frame, which is invoked from lua & javascript. More...

local	_updateScriptHandler
	script handler for update() callback per frame, which is invoked from lua & javascript. More...

ccScriptType	_scriptType
	type of script binding, lua or javascript More...

var	_scriptType
	type of script binding, lua or javascript More...

local	_scriptType
	type of script binding, lua or javascript More...

ComponentContainer *	_componentContainer
	Dictionary of components. More...

var	_componentContainer
	Dictionary of components. More...

local	_componentContainer
	Dictionary of components. More...

PhysicsBody *	_physicsBody
	the physicsBody the node have More...

var	_physicsBody
	the physicsBody the node have More...

local	_physicsBody
	the physicsBody the node have More...

GLubyte	_displayedOpacity
var	_displayedOpacity
local	_displayedOpacity
GLubyte	_realOpacity
var	_realOpacity
local	_realOpacity
Color3B	_displayedColor
var	_displayedColor
local	_displayedColor
Color3B	_realColor
var	_realColor
local	_realColor
bool	_cascadeColorEnabled
var	_cascadeColorEnabled
local	_cascadeColorEnabled
bool	_cascadeOpacityEnabled
var	_cascadeOpacityEnabled
local	_cascadeOpacityEnabled
Protected Attributes inherited from Object
unsigned int	_referenceCount
	count of references More...

Constructor, Destructor and Initializers
static Node *	create (void)
	Allocates and initializes a node. More...

virtual std::string	getDescription () const
	Gets the description string. More...

Additional Inherited Members
Public Attributes inherited from Object
unsigned int	_ID
	object id, ScriptSupport need public _ID More...

int	_luaID
	Lua reference id. More...

Detailed Description

Node is the base element of the Scene Graph.

Element of the Scene Graph must be Node objects or subclasses of it. The most common Node objects are: Scene, Layer, Sprite, Menu.

The main features of a Node are:

They can contain other Node objects (addChild, getChildByTag, removeChild, etc)
They can schedule periodic callback (schedule, unschedule, etc)
They can execute actions (runAction, stopAction, etc)

Some Node objects provide extra functionality for them or their children.

Subclassing a Node usually means (one/all) of:

overriding init to initialize resources and schedule callbacks
create callbacks to handle the advancement of time
overriding draw to render the node

Properties of Node:

position
scale (x, y)
rotation (in degrees, clockwise)
GridBase (to do mesh transformations)
anchor point
size
visible
z-order
openGL z position

Default values:

rotation: 0
position: (x=0,y=0)
scale: (x=1,y=1)
contentSize: (x=0,y=0)
anchorPoint: (x=0,y=0)

Limitations:

A Node is a "invisible" object. If you want to draw something on the screen, you should use a Sprite instead. Or subclass Node and override draw.

Order in transformations with grid disabled

The node will be translated (position)
The node will be rotated (rotation)
The node will be scaled (scale)

Order in transformations with grid enabled

The node will be translated (position)
The node will be rotated (rotation)
The node will be scaled (scale)
The grid will capture the screen
The grid will render the captured screen

Constructor & Destructor Documentation

Node ( )

protected

var Node ( )

protected

local Node ( )

protected

virtual ~Node ( )

protectedvirtual

var ~Node ( )

protectedvirtual

local ~Node ( )

protectedvirtual

Member Function Documentation

virtual void _setLocalZOrder ( int z)

virtual

var _setLocalZOrder ( var z)

virtual

local _setLocalZOrder ( local z)

virtual

virtual void addChild ( Node * child)

virtual

Adds a child to the container with z-order as 0.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child A child node

Reimplemented in ScrollView, Widget, Layout, ListView, PageView, Menu, and BatchNode.

var addChild ( var child)

virtual

Adds a child to the container with z-order as 0.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child A child node

Reimplemented in ScrollView, Widget, Layout, ListView, PageView, Menu, and BatchNode.

local addChild ( local child)

virtual

Adds a child to the container with z-order as 0.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child A child node

Reimplemented in ScrollView, Widget, Layout, ListView, PageView, Menu, and BatchNode.

virtual void addChild	(	Node *	child,
		int	localZOrder
	)

virtual

Adds a child to the container with a local z-order.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node
zOrder	Z order for drawing priority. Please refer to `setLocalZOrder(int)`

Reimplemented in ScrollView, Widget, Layout, ListView, PageView, Menu, and BatchNode.

var addChild	(	var	child,
		var	localZOrder
	)

virtual

Adds a child to the container with a local z-order.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node
zOrder	Z order for drawing priority. Please refer to `setLocalZOrder(int)`

Reimplemented in ScrollView, Widget, Layout, ListView, PageView, Menu, and BatchNode.

local addChild	(	local	child,
		local	localZOrder
	)

virtual

Adds a child to the container with a local z-order.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node
zOrder	Z order for drawing priority. Please refer to `setLocalZOrder(int)`

Reimplemented in ScrollView, Widget, Layout, ListView, PageView, Menu, and BatchNode.

virtual void addChild	(	Node *	child,
		int	localZOrder,
		int	tag
	)

virtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node
zOrder	Z order for drawing priority. Please refer to setLocalZOrder(int)
tag	A interger to identify the node easily. Please refer to setTag(int)

Reimplemented in Sprite, ScrollView, ScrollView, Widget, Layout, TMXLayer, ListView, PageView, SpriteBatchNode, Label, Menu, ParticleBatchNode, Scene, ParallaxNode, and BatchNode.

var addChild	(	var	child,
		var	localZOrder,
		var	tag
	)

virtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node
zOrder	Z order for drawing priority. Please refer to setLocalZOrder(int)
tag	A interger to identify the node easily. Please refer to setTag(int)

Reimplemented in Sprite, ScrollView, ScrollView, Widget, Layout, TMXLayer, ListView, PageView, SpriteBatchNode, Label, Menu, ParticleBatchNode, Scene, ParallaxNode, and BatchNode.

local addChild	(	local	child,
		local	localZOrder,
		local	tag
	)

virtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node
zOrder	Z order for drawing priority. Please refer to setLocalZOrder(int)
tag	A interger to identify the node easily. Please refer to setTag(int)

Reimplemented in Sprite, ScrollView, ScrollView, Widget, Layout, TMXLayer, ListView, PageView, SpriteBatchNode, Label, Menu, ParticleBatchNode, Scene, ParallaxNode, and BatchNode.

virtual bool addComponent ( Component * pComponent)

virtual

adds a component

var addComponent ( var pComponent)

virtual

adds a component

local addComponent ( local pComponent)

virtual

adds a component

virtual
CC_DEPRECATED_ATTRIBUTE Rect
boundingBox ( ) const

inlinevirtual

Deprecated:: Use getBoundingBox instead

var boundingBox ( )

inlinevirtual

Deprecated:: Use getBoundingBox instead

local boundingBox ( )

inlinevirtual

Deprecated:: Use getBoundingBox instead

void childrenAlloc ( void )

protected

lazy allocs

var childrenAlloc ( )

protected

lazy allocs

local childrenAlloc ( )

protected

lazy allocs

virtual void cleanup ( )

virtual

Stops all running actions and schedulers.

Reimplemented in TransitionScene.

var cleanup ( )

virtual

Stops all running actions and schedulers.

Reimplemented in TransitionScene.

local cleanup ( )

virtual

Stops all running actions and schedulers.

Reimplemented in TransitionScene.

Point convertToNodeSpace ( const Point & worldPoint) const

Converts a Point to node (local) space coordinates.

The result is in Points.

var convertToNodeSpace ( var worldPoint)

Converts a Point to node (local) space coordinates.

The result is in Points.

local convertToNodeSpace ( local worldPoint)

Converts a Point to node (local) space coordinates.

The result is in Points.

Point convertToNodeSpaceAR ( const Point & worldPoint) const

Converts a Point to node (local) space coordinates.

The result is in Points. treating the returned/received node point as anchor relative.

var convertToNodeSpaceAR ( var worldPoint)

Converts a Point to node (local) space coordinates.

The result is in Points. treating the returned/received node point as anchor relative.

local convertToNodeSpaceAR ( local worldPoint)

Converts a Point to node (local) space coordinates.

The result is in Points. treating the returned/received node point as anchor relative.

Point convertTouchToNodeSpace ( Touch * touch) const

convenience methods which take a Touch instead of Point

var convertTouchToNodeSpace ( var touch)

convenience methods which take a Touch instead of Point

local convertTouchToNodeSpace ( local touch)

convenience methods which take a Touch instead of Point

Point convertTouchToNodeSpaceAR ( Touch * touch) const

converts a Touch (world coordinates) into a local coordinate.

This method is AR (Anchor Relative).

var convertTouchToNodeSpaceAR ( var touch)

converts a Touch (world coordinates) into a local coordinate.

This method is AR (Anchor Relative).

local convertTouchToNodeSpaceAR ( local touch)

converts a Touch (world coordinates) into a local coordinate.

This method is AR (Anchor Relative).

Point convertToWindowSpace ( const Point & nodePoint) const

protected

Convert cocos2d coordinates to UI windows coordinate.

var convertToWindowSpace ( var nodePoint)

protected

Convert cocos2d coordinates to UI windows coordinate.

local convertToWindowSpace ( local nodePoint)

protected

Convert cocos2d coordinates to UI windows coordinate.

Point convertToWorldSpace ( const Point & nodePoint) const

Converts a Point to world space coordinates.

The result is in Points.

var convertToWorldSpace ( var nodePoint)

Converts a Point to world space coordinates.

The result is in Points.

local convertToWorldSpace ( local nodePoint)

Converts a Point to world space coordinates.

The result is in Points.

Point convertToWorldSpaceAR ( const Point & nodePoint) const

Converts a local Point to world space coordinates.The result is in Points.

treating the returned/received node point as anchor relative.

var convertToWorldSpaceAR ( var nodePoint)

Converts a local Point to world space coordinates.The result is in Points.

treating the returned/received node point as anchor relative.

local convertToWorldSpaceAR ( local nodePoint)

Converts a local Point to world space coordinates.The result is in Points.

treating the returned/received node point as anchor relative.

static Node* create ( void )

static

Allocates and initializes a node.

Returns: A initialized node which is marked as "autorelease".

var create ( )

static

Allocates and initializes a node.

Returns: A initialized node which is marked as "autorelease".

local create ( )

static

Allocates and initializes a node.

Returns: A initialized node which is marked as "autorelease".

void detachChild	(	Node *	child,
		ssize_t	index,
		bool	doCleanup
	)

protected

Removes a child, call child->onExit(), do cleanup, remove it from children array.

var detachChild	(	var	child,
		var	index,
		var	doCleanup
	)

protected

Removes a child, call child->onExit(), do cleanup, remove it from children array.

local detachChild	(	local	child,
		local	index,
		local	doCleanup
	)

protected

Removes a child, call child->onExit(), do cleanup, remove it from children array.

virtual void disableCascadeColor ( )

protectedvirtual

var disableCascadeColor ( )

protectedvirtual

local disableCascadeColor ( )

protectedvirtual

virtual void disableCascadeOpacity ( )

protectedvirtual

var disableCascadeOpacity ( )

protectedvirtual

local disableCascadeOpacity ( )

protectedvirtual

virtual void draw ( )

virtual

Override this method to draw your own node.

The following GL states will be enabled by default:

glEnableClientState(GL_VERTEX_ARRAY);
glEnableClientState(GL_COLOR_ARRAY);
glEnableClientState(GL_TEXTURE_COORD_ARRAY);
glEnable(GL_TEXTURE_2D); AND YOU SHOULD NOT DISABLE THEM AFTER DRAWING YOUR NODE But if you enable any other GL state, you should disable it after drawing your node.

Reimplemented in TransitionFadeTR, TransitionSplitCols, TransitionTurnOffTiles, TransitionCrossFade, Sprite, LayerColor, TextFieldTTF, SpriteBatchNode, Armature, RenderTexture, Label, ProgressTimer, ParticleSystemQuad, ParticleBatchNode, DrawNode, TransitionScene, MotionStreak, TransitionPageTurn, AtlasNode, Skeleton, BatchNode, PhysicsDebugNode, Skin, and GLNode.

var draw ( )

virtual

Override this method to draw your own node.

The following GL states will be enabled by default:

glEnableClientState(GL_VERTEX_ARRAY);
glEnableClientState(GL_COLOR_ARRAY);
glEnableClientState(GL_TEXTURE_COORD_ARRAY);
glEnable(GL_TEXTURE_2D); AND YOU SHOULD NOT DISABLE THEM AFTER DRAWING YOUR NODE But if you enable any other GL state, you should disable it after drawing your node.

Reimplemented in TransitionFadeTR, TransitionSplitCols, TransitionTurnOffTiles, TransitionCrossFade, Sprite, LayerColor, TextFieldTTF, SpriteBatchNode, Armature, RenderTexture, Label, ProgressTimer, ParticleSystemQuad, ParticleBatchNode, DrawNode, TransitionScene, MotionStreak, TransitionPageTurn, AtlasNode, Skeleton, BatchNode, PhysicsDebugNode, Skin, and GLNode.

local draw ( )

virtual

Override this method to draw your own node.

The following GL states will be enabled by default:

glEnableClientState(GL_VERTEX_ARRAY);
glEnableClientState(GL_COLOR_ARRAY);
glEnableClientState(GL_TEXTURE_COORD_ARRAY);
glEnable(GL_TEXTURE_2D); AND YOU SHOULD NOT DISABLE THEM AFTER DRAWING YOUR NODE But if you enable any other GL state, you should disable it after drawing your node.

Reimplemented in TransitionFadeTR, TransitionSplitCols, TransitionTurnOffTiles, TransitionCrossFade, Sprite, LayerColor, TextFieldTTF, SpriteBatchNode, Armature, RenderTexture, Label, ProgressTimer, ParticleSystemQuad, ParticleBatchNode, DrawNode, TransitionScene, MotionStreak, TransitionPageTurn, AtlasNode, Skeleton, BatchNode, PhysicsDebugNode, Skin, and GLNode.

Action* getActionByTag ( int tag)

Gets an action from the running action list by its tag.

See Also: setTag(int), getTag().

Returns: The action object with the given tag.

var getActionByTag ( var tag)

Gets an action from the running action list by its tag.

See Also: setTag(int), getTag().

Returns: The action object with the given tag.

local getActionByTag ( local tag)

Gets an action from the running action list by its tag.

See Also: setTag(int), getTag().

Returns: The action object with the given tag.

virtual ActionManager*
getActionManager ( )

inlinevirtual

Gets the ActionManager object that is used by all actions.

See Also: setActionManager(ActionManager*)

Returns: A ActionManager object.

var getActionManager ( )

inlinevirtual

Gets the ActionManager object that is used by all actions.

See Also: setActionManager(ActionManager*)

Returns: A ActionManager object.

local getActionManager ( )

inlinevirtual

Gets the ActionManager object that is used by all actions.

See Also: setActionManager(ActionManager*)

Returns: A ActionManager object.

virtual const ActionManager*
getActionManager ( ) const

inlinevirtual

var getActionManager ( )

inlinevirtual

local getActionManager ( )

inlinevirtual

virtual const Point& getAnchorPoint ( ) const

virtual

Returns the anchor point in percent.

See Also: setAnchorPoint(const Point&)

Returns: The anchor point of node.

var getAnchorPoint ( )

virtual

Returns the anchor point in percent.

See Also: setAnchorPoint(const Point&)

Returns: The anchor point of node.

local getAnchorPoint ( )

virtual

Returns the anchor point in percent.

See Also: setAnchorPoint(const Point&)

Returns: The anchor point of node.

virtual const Point&
getAnchorPointInPoints ( ) const

virtual

Returns the anchorPoint in absolute pixels.

Warning: You can only read it. If you wish to modify it, use anchorPoint instead.

See Also: getAnchorPoint()

Returns: The anchor point in absolute pixels.

Reimplemented in Armature.

var getAnchorPointInPoints ( )

virtual

Returns the anchorPoint in absolute pixels.

Warning: You can only read it. If you wish to modify it, use anchorPoint instead.

See Also: getAnchorPoint()

Returns: The anchor point in absolute pixels.

Reimplemented in Armature.

local getAnchorPointInPoints ( )

virtual

Returns the anchorPoint in absolute pixels.

Warning: You can only read it. If you wish to modify it, use anchorPoint instead.

See Also: getAnchorPoint()

Returns: The anchor point in absolute pixels.

Reimplemented in Armature.

virtual Rect getBoundingBox ( ) const

virtual

Returns a "local" axis aligned bounding box of the node.

The returned box is relative only to its parent.

Note: This method returns a temporaty variable, so it can't returns const Rect&

Todo:: Rename to getBoundingBox() in the future versions.

Returns: A "local" axis aligned boudning box of the node.

Reimplemented in Armature, and Skeleton.

var getBoundingBox ( )

virtual

Returns a "local" axis aligned bounding box of the node.

The returned box is relative only to its parent.

Note: This method returns a temporaty variable, so it can't returns const Rect&

Todo:: Rename to getBoundingBox() in the future versions.

Returns: A "local" axis aligned boudning box of the node.

Reimplemented in Armature, and Skeleton.

local getBoundingBox ( )

virtual

Returns a "local" axis aligned bounding box of the node.

The returned box is relative only to its parent.

Note: This method returns a temporaty variable, so it can't returns const Rect&

Todo:: Rename to getBoundingBox() in the future versions.

Returns: A "local" axis aligned boudning box of the node.

Reimplemented in Armature, and Skeleton.

virtual Node* getChildByTag ( int tag)

virtual

Gets a child from the container with its tag.

Parameters

tag	An identifier to find the child node.

Returns: a Node object whose tag equals to the input parameter

Reimplemented in ScrollView, Widget, ListView, and PageView.

var getChildByTag ( var tag)

virtual

Gets a child from the container with its tag.

Parameters

tag	An identifier to find the child node.

Returns: a Node object whose tag equals to the input parameter

Reimplemented in ScrollView, Widget, ListView, and PageView.

local getChildByTag ( local tag)

virtual

Gets a child from the container with its tag.

Parameters

tag	An identifier to find the child node.

Returns: a Node object whose tag equals to the input parameter

Reimplemented in ScrollView, Widget, ListView, and PageView.

virtual Vector<Node*>& getChildren ( )

inlinevirtual

Return an array of children.

Composing a "tree" structure is a very important feature of Node Here's a sample code of traversing children array:

Node* node = nullptr;
CCARRAY_FOREACH(parent->getChildren(), node)
{
   node->setPosition(0,0);
}

This sample code traverses all children nodes, and set their position to (0,0)

Returns: An array of children

Reimplemented in ScrollView, Widget, ListView, and PageView.

var getChildren ( )

inlinevirtual

Return an array of children.

Composing a "tree" structure is a very important feature of Node Here's a sample code of traversing children array:

Node* node = nullptr;
CCARRAY_FOREACH(parent->getChildren(), node)
{
   node->setPosition(0,0);
}

This sample code traverses all children nodes, and set their position to (0,0)

Returns: An array of children

Reimplemented in ScrollView, Widget, ListView, and PageView.

local getChildren ( )

inlinevirtual

Return an array of children.

Composing a "tree" structure is a very important feature of Node Here's a sample code of traversing children array:

Node* node = nullptr;
CCARRAY_FOREACH(parent->getChildren(), node)
{
   node->setPosition(0,0);
}

This sample code traverses all children nodes, and set their position to (0,0)

Returns: An array of children

Reimplemented in ScrollView, Widget, ListView, and PageView.

virtual const Vector<Node*>
& getChildren ( ) const

inlinevirtual

Reimplemented in ScrollView, Widget, ListView, and PageView.

var getChildren ( )

inlinevirtual

Reimplemented in ScrollView, Widget, ListView, and PageView.

local getChildren ( )

inlinevirtual

Reimplemented in ScrollView, Widget, ListView, and PageView.

virtual ssize_t getChildrenCount ( ) const

virtual

Get the amount of children.

Returns: The amount of children.

Reimplemented in ScrollView, Widget, ListView, and PageView.

var getChildrenCount ( )

virtual

Get the amount of children.

Returns: The amount of children.

Reimplemented in ScrollView, Widget, ListView, and PageView.

local getChildrenCount ( )

virtual

Get the amount of children.

Returns: The amount of children.

Reimplemented in ScrollView, Widget, ListView, and PageView.

virtual const Color3B& getColor ( void ) const

virtual

Reimplemented in __NodeRGBA, __LayerRGBA, ControlButton, ProgressTimer, and AtlasNode.

var getColor ( )

virtual

Reimplemented in __NodeRGBA, __LayerRGBA, ControlButton, ProgressTimer, and AtlasNode.

local getColor ( )

virtual

Reimplemented in __NodeRGBA, __LayerRGBA, ControlButton, ProgressTimer, and AtlasNode.

Component* getComponent ( const std::string & pName)

gets a component by its name

var getComponent ( var pName)

gets a component by its name

local getComponent ( local pName)

gets a component by its name

virtual const Size& getContentSize ( ) const

virtual

Returns the untransformed size of the node.

See Also: setContentSize(const Size&)

Returns: The untransformed size of the node.

Reimplemented in Widget, ScrollView, Slider, CheckBox, Button, Text, TextField, LoadingBar, ImageView, TextAtlas, and TextBMFont.

var getContentSize ( )

virtual

Returns the untransformed size of the node.

See Also: setContentSize(const Size&)

Returns: The untransformed size of the node.

Reimplemented in Widget, ScrollView, Slider, CheckBox, Button, Text, TextField, LoadingBar, ImageView, TextAtlas, and TextBMFont.

local getContentSize ( )

virtual

Returns the untransformed size of the node.

See Also: setContentSize(const Size&)

Returns: The untransformed size of the node.

Reimplemented in Widget, ScrollView, Slider, CheckBox, Button, Text, TextField, LoadingBar, ImageView, TextAtlas, and TextBMFont.

virtual std::string getDescription ( ) const

virtual

Gets the description string.

It makes debugging easier.

Returns: A string

Reimplemented in Widget, LayerMultiplex, Sprite, LayerGradient, ScrollView, LayerColor, LabelBMFont, TMXLayer, Slider, Button, TMXTiledMap, Layout, CheckBox, SpriteBatchNode, ListView, LabelTTF, Layer, PageView, Text, Label, TextField, LoadingBar, Menu, ParticleSystemQuad, ImageView, MenuItem, LabelAtlas, TextAtlas, TextBMFont, and Scene.

virtual const Color3B&
getDisplayedColor ( ) const

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

var getDisplayedColor ( )

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

local getDisplayedColor ( )

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

virtual GLubyte getDisplayedOpacity ( ) const

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

var getDisplayedOpacity ( )

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

local getDisplayedOpacity ( )

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

virtual EventDispatcher*
getEventDispatcher ( ) const

inlinevirtual

var getEventDispatcher ( )

inlinevirtual

local getEventDispatcher ( )

inlinevirtual

virtual float getGlobalZOrder ( ) const

inlinevirtual

Returns the Node's Global Z Order.

See Also: setGlobalZOrder(int)

Returns: The node's global Z order

var getGlobalZOrder ( )

inlinevirtual

Returns the Node's Global Z Order.

See Also: setGlobalZOrder(int)

Returns: The node's global Z order

local getGlobalZOrder ( )

inlinevirtual

Returns the Node's Global Z Order.

See Also: setGlobalZOrder(int)

Returns: The node's global Z order

CC_DEPRECATED_ATTRIBUTE int
getGLServerState ( ) const

inline

Deprecated:: No longer needed

virtual int getLocalZOrder ( ) const

inlinevirtual

Gets the local Z order of this node.

See Also: setLocalZOrder(int)

Returns: The local (relative to its siblings) Z order.

var getLocalZOrder ( )

inlinevirtual

Gets the local Z order of this node.

See Also: setLocalZOrder(int)

Returns: The local (relative to its siblings) Z order.

local getLocalZOrder ( )

inlinevirtual

Gets the local Z order of this node.

See Also: setLocalZOrder(int)

Returns: The local (relative to its siblings) Z order.

virtual AffineTransform
getNodeToParentAffineTransform ( ) const

virtual

var getNodeToParentAffineTransform ( )

virtual

local
getNodeToParentAffineTransform ( )

virtual

virtual const kmMat4&
getNodeToParentTransform ( ) const

virtual

Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates.

The matrix is in Pixels.

Reimplemented in Armature, and PhysicsSprite.

var getNodeToParentTransform ( )

virtual

Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates.

The matrix is in Pixels.

Reimplemented in Armature, and PhysicsSprite.

local getNodeToParentTransform ( )

virtual

Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates.

The matrix is in Pixels.

Reimplemented in Armature, and PhysicsSprite.

virtual AffineTransform
getNodeToWorldAffineTransform ( ) const

virtual

var getNodeToWorldAffineTransform ( )

virtual

local getNodeToWorldAffineTransform ( )

virtual

virtual kmMat4
getNodeToWorldTransform ( ) const

virtual

Returns the world affine transform matrix.

The matrix is in Pixels.

Reimplemented in Bone, and Skin.

var getNodeToWorldTransform ( )

virtual

Returns the world affine transform matrix.

The matrix is in Pixels.

Reimplemented in Bone, and Skin.

local getNodeToWorldTransform ( )

virtual

Returns the world affine transform matrix.

The matrix is in Pixels.

Reimplemented in Bone, and Skin.

ssize_t getNumberOfRunningActions ( ) const

Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays).

Composable actions are counted as 1 action. Example: If you are running 1 Sequence of 7 actions, it will return 1. If you are running 7 Sequences of 2 actions, it will return 7.

Todo:: Rename to getNumberOfRunningActions()

Returns: The number of actions that are running plus the ones that are schedule to run

var getNumberOfRunningActions ( )

Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays).

Composable actions are counted as 1 action. Example: If you are running 1 Sequence of 7 actions, it will return 1. If you are running 7 Sequences of 2 actions, it will return 7.

Todo:: Rename to getNumberOfRunningActions()

Returns: The number of actions that are running plus the ones that are schedule to run

local getNumberOfRunningActions ( )

Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays).

Composable actions are counted as 1 action. Example: If you are running 1 Sequence of 7 actions, it will return 1. If you are running 7 Sequences of 2 actions, it will return 7.

Todo:: Rename to getNumberOfRunningActions()

Returns: The number of actions that are running plus the ones that are schedule to run

virtual GLubyte getOpacity ( ) const

virtual

Reimplemented in __NodeRGBA, __LayerRGBA, ControlButton, ProgressTimer, and MotionStreak.

var getOpacity ( )

virtual

Reimplemented in __NodeRGBA, __LayerRGBA, ControlButton, ProgressTimer, and MotionStreak.

local getOpacity ( )

virtual

Reimplemented in __NodeRGBA, __LayerRGBA, ControlButton, ProgressTimer, and MotionStreak.

int getOrderOfArrival ( ) const

Returns the arrival order, indecates which children is added previously.

See Also: setOrderOfArrival(unsigned int)

Returns: The arrival order.

var getOrderOfArrival ( )

Returns the arrival order, indecates which children is added previously.

See Also: setOrderOfArrival(unsigned int)

Returns: The arrival order.

local getOrderOfArrival ( )

Returns the arrival order, indecates which children is added previously.

See Also: setOrderOfArrival(unsigned int)

Returns: The arrival order.

virtual Node* getParent ( )

inlinevirtual

Returns a pointer to the parent node.

See Also: setParent(Node*)

Returns: A pointer to the parent node

var getParent ( )

inlinevirtual

Returns a pointer to the parent node.

See Also: setParent(Node*)

Returns: A pointer to the parent node

local getParent ( )

inlinevirtual

Returns a pointer to the parent node.

See Also: setParent(Node*)

Returns: A pointer to the parent node

virtual const Node* getParent ( ) const

inlinevirtual

var getParent ( )

inlinevirtual

local getParent ( )

inlinevirtual

virtual AffineTransform
getParentToNodeAffineTransform ( ) const

virtual

var getParentToNodeAffineTransform ( )

virtual

local
getParentToNodeAffineTransform ( )

virtual

virtual const kmMat4&
getParentToNodeTransform ( ) const

virtual

Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates.

The matrix is in Pixels.

var getParentToNodeTransform ( )

virtual

Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates.

The matrix is in Pixels.

local getParentToNodeTransform ( )

virtual

Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates.

The matrix is in Pixels.

PhysicsBody* getPhysicsBody ( ) const

get the PhysicsBody the sprite have

var getPhysicsBody ( )

get the PhysicsBody the sprite have

local getPhysicsBody ( )

get the PhysicsBody the sprite have

virtual const Point& getPosition ( ) const

virtual

Gets the position (x,y) of the node in OpenGL coordinates.

See Also: setPosition(const Point&)

Returns: The position (x,y) of the node in OpenGL coordinates
In js and lua return value is table which contains x,y

Reimplemented in PhysicsSprite.

var getPosition ( )

virtual

Gets the position (x,y) of the node in OpenGL coordinates.

See Also: setPosition(const Point&)

Returns: The position (x,y) of the node in OpenGL coordinates
In js and lua return value is table which contains x,y

Reimplemented in PhysicsSprite.

local getPosition ( )

virtual

Gets the position (x,y) of the node in OpenGL coordinates.

See Also: setPosition(const Point&)

Returns: The position (x,y) of the node in OpenGL coordinates
In js and lua return value is table which contains x,y

Reimplemented in PhysicsSprite.

virtual void getPosition	(	float *	x,
		float *	y
	)		const

virtual

Gets position in a more efficient way, returns two number instead of a Point object.

See Also: setPosition(float, float) In js,out value not return

Reimplemented in PhysicsSprite.

var getPosition	(	var	x,
		var	y
	)

virtual

Gets position in a more efficient way, returns two number instead of a Point object.

See Also: setPosition(float, float) In js,out value not return

Reimplemented in PhysicsSprite.

local getPosition	(	local	x,
		local	y
	)

virtual

Gets position in a more efficient way, returns two number instead of a Point object.

See Also: setPosition(float, float) In js,out value not return

Reimplemented in PhysicsSprite.

virtual float getPositionX ( void ) const

virtual

Reimplemented in PhysicsSprite.

var getPositionX ( )

virtual

Reimplemented in PhysicsSprite.

local getPositionX ( )

virtual

Reimplemented in PhysicsSprite.

virtual float getPositionY ( void ) const

virtual

Reimplemented in PhysicsSprite.

var getPositionY ( )

virtual

Reimplemented in PhysicsSprite.

local getPositionY ( )

virtual

Reimplemented in PhysicsSprite.

virtual float getRotation ( ) const

virtual

Returns the rotation of the node in degrees.

See Also: setRotation(float)

Returns: The rotation of the node in degrees.

Reimplemented in PhysicsSprite.

var getRotation ( )

virtual

Returns the rotation of the node in degrees.

See Also: setRotation(float)

Returns: The rotation of the node in degrees.

Reimplemented in PhysicsSprite.

local getRotation ( )

virtual

Returns the rotation of the node in degrees.

See Also: setRotation(float)

Returns: The rotation of the node in degrees.

Reimplemented in PhysicsSprite.

virtual float getRotationX ( ) const

virtual

Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew.

See Also: setRotationX(float)

Returns: The X rotation in degrees.

var getRotationX ( )

virtual

Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew.

See Also: setRotationX(float)

Returns: The X rotation in degrees.

local getRotationX ( )

virtual

Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew.

See Also: setRotationX(float)

Returns: The X rotation in degrees.

virtual float getRotationY ( ) const

virtual

Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew.

See Also: setRotationY(float)

Returns: The Y rotation in degrees.

var getRotationY ( )

virtual

Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew.

See Also: setRotationY(float)

Returns: The Y rotation in degrees.

local getRotationY ( )

virtual

Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew.

See Also: setRotationY(float)

Returns: The Y rotation in degrees.

virtual float getScale ( ) const

virtual

Gets the scale factor of the node, when X and Y have the same scale factor.

Warning: Assert when _scaleX != _scaleY

See Also: setScale(float)

Returns: The scale factor of the node.

var getScale ( )

virtual

Gets the scale factor of the node, when X and Y have the same scale factor.

Warning: Assert when _scaleX != _scaleY

See Also: setScale(float)

Returns: The scale factor of the node.

local getScale ( )

virtual

Gets the scale factor of the node, when X and Y have the same scale factor.

Warning: Assert when _scaleX != _scaleY

See Also: setScale(float)

Returns: The scale factor of the node.

virtual float getScaleX ( ) const

virtual

Returns the scale factor on X axis of this node.

See Also: setScaleX(float)

Returns: The scale factor on X axis.

Reimplemented in Label.

var getScaleX ( )

virtual

Returns the scale factor on X axis of this node.

See Also: setScaleX(float)

Returns: The scale factor on X axis.

Reimplemented in Label.

local getScaleX ( )

virtual

Returns the scale factor on X axis of this node.

See Also: setScaleX(float)

Returns: The scale factor on X axis.

Reimplemented in Label.

virtual float getScaleY ( ) const

virtual

Returns the scale factor on Y axis of this node.

See Also: setScaleY(float)

Returns: The scale factor on Y axis.

Reimplemented in Label.

var getScaleY ( )

virtual

Returns the scale factor on Y axis of this node.

See Also: setScaleY(float)

Returns: The scale factor on Y axis.

Reimplemented in Label.

local getScaleY ( )

virtual

Returns the scale factor on Y axis of this node.

See Also: setScaleY(float)

Returns: The scale factor on Y axis.

Reimplemented in Label.

virtual Scene* getScene ( )

virtual

Returns the Scene that contains the Node.

It returns nullptr if the node doesn't belong to any Scene. This function recursively calls parent->getScene() until parent is a Scene object. The results are not cached. It is that the user caches the results in case this functions is being used inside a loop.

Reimplemented in Scene.

var getScene ( )

virtual

Returns the Scene that contains the Node.

It returns nullptr if the node doesn't belong to any Scene. This function recursively calls parent->getScene() until parent is a Scene object. The results are not cached. It is that the user caches the results in case this functions is being used inside a loop.

Reimplemented in Scene.

local getScene ( )

virtual

Returns the Scene that contains the Node.

It returns nullptr if the node doesn't belong to any Scene. This function recursively calls parent->getScene() until parent is a Scene object. The results are not cached. It is that the user caches the results in case this functions is being used inside a loop.

Reimplemented in Scene.

virtual Scheduler* getScheduler ( )

inlinevirtual

Gets a Sheduler object.

See Also: setScheduler(Scheduler*)

Returns: A Scheduler object.

var getScheduler ( )

inlinevirtual

Gets a Sheduler object.

See Also: setScheduler(Scheduler*)

Returns: A Scheduler object.

local getScheduler ( )

inlinevirtual

Gets a Sheduler object.

See Also: setScheduler(Scheduler*)

Returns: A Scheduler object.

virtual const Scheduler*
getScheduler ( ) const

inlinevirtual

var getScheduler ( )

inlinevirtual

local getScheduler ( )

inlinevirtual

virtual GLProgram* getShaderProgram ( )

inlinevirtual

Return the shader program currently used for this node.

Returns: The shader program currelty used for this node

var getShaderProgram ( )

inlinevirtual

Return the shader program currently used for this node.

Returns: The shader program currelty used for this node

local getShaderProgram ( )

inlinevirtual

Return the shader program currently used for this node.

Returns: The shader program currelty used for this node

virtual const GLProgram*
getShaderProgram ( ) const

inlinevirtual

var getShaderProgram ( )

inlinevirtual

local getShaderProgram ( )

inlinevirtual

virtual float getSkewX ( ) const

virtual

Returns the X skew angle of the node in degrees.

See Also: setSkewX(float)

Returns: The X skew angle of the node in degrees.

var getSkewX ( )

virtual

Returns the X skew angle of the node in degrees.

See Also: setSkewX(float)

Returns: The X skew angle of the node in degrees.

local getSkewX ( )

virtual

Returns the X skew angle of the node in degrees.

See Also: setSkewX(float)

Returns: The X skew angle of the node in degrees.

virtual float getSkewY ( ) const

virtual

Returns the Y skew angle of the node in degrees.

See Also: setSkewY(float)

Returns: The Y skew angle of the node in degrees.

var getSkewY ( )

virtual

Returns the Y skew angle of the node in degrees.

See Also: setSkewY(float)

Returns: The Y skew angle of the node in degrees.

local getSkewY ( )

virtual

Returns the Y skew angle of the node in degrees.

See Also: setSkewY(float)

Returns: The Y skew angle of the node in degrees.

virtual int getTag ( ) const

virtual

Returns a tag that is used to identify the node easily.

You can set tags to node then identify them easily.

#define TAG_PLAYER  1
#define TAG_MONSTER 2
#define TAG_BOSS    3
// set tags
node1->setTag(TAG_PLAYER);
node2->setTag(TAG_MONSTER);
node3->setTag(TAG_BOSS);
parent->addChild(node1);
parent->addChild(node2);
parent->addChild(node3);
// identify by tags
Node* node = nullptr;
CCARRAY_FOREACH(parent->getChildren(), node)
{
    switch(node->getTag())
    {
        case TAG_PLAYER:
            break;
        case TAG_MONSTER:
            break;
        case TAG_BOSS:
            break;
    }
}

Returns: A interger that identifies the node.

var getTag ( )

virtual

Returns a tag that is used to identify the node easily.

You can set tags to node then identify them easily.

#define TAG_PLAYER  1
#define TAG_MONSTER 2
#define TAG_BOSS    3
// set tags
node1->setTag(TAG_PLAYER);
node2->setTag(TAG_MONSTER);
node3->setTag(TAG_BOSS);
parent->addChild(node1);
parent->addChild(node2);
parent->addChild(node3);
// identify by tags
Node* node = nullptr;
CCARRAY_FOREACH(parent->getChildren(), node)
{
    switch(node->getTag())
    {
        case TAG_PLAYER:
            break;
        case TAG_MONSTER:
            break;
        case TAG_BOSS:
            break;
    }
}

Returns: A interger that identifies the node.

local getTag ( )

virtual

Returns a tag that is used to identify the node easily.

You can set tags to node then identify them easily.

#define TAG_PLAYER  1
#define TAG_MONSTER 2
#define TAG_BOSS    3
// set tags
node1->setTag(TAG_PLAYER);
node2->setTag(TAG_MONSTER);
node3->setTag(TAG_BOSS);
parent->addChild(node1);
parent->addChild(node2);
parent->addChild(node3);
// identify by tags
Node* node = nullptr;
CCARRAY_FOREACH(parent->getChildren(), node)
{
    switch(node->getTag())
    {
        case TAG_PLAYER:
            break;
        case TAG_MONSTER:
            break;
        case TAG_BOSS:
            break;
    }
}

Returns: A interger that identifies the node.

virtual void* getUserData ( )

inlinevirtual

Returns a custom user data pointer.

You can set everything in UserData pointer, a data block, a structure or an object.

Returns: A custom user data pointer

virtual const void* getUserData ( ) const

inlinevirtual

virtual Object* getUserObject ( )

inlinevirtual

Returns a user assigned Object.

Similar to userData, but instead of holding a void* it holds an object

Returns: A user assigned Object

virtual const Object* getUserObject ( ) const

inlinevirtual

virtual float getVertexZ ( ) const

virtual

Gets OpenGL Z vertex of this node.

See Also: setVertexZ(float)

Returns: OpenGL Z vertex of this node

var getVertexZ ( )

virtual

Gets OpenGL Z vertex of this node.

See Also: setVertexZ(float)

Returns: OpenGL Z vertex of this node

local getVertexZ ( )

virtual

Gets OpenGL Z vertex of this node.

See Also: setVertexZ(float)

Returns: OpenGL Z vertex of this node

virtual AffineTransform
getWorldToNodeAffineTransform ( ) const

virtual

var getWorldToNodeAffineTransform ( )

virtual

local getWorldToNodeAffineTransform ( )

virtual

virtual kmMat4
getWorldToNodeTransform ( ) const

virtual

Returns the inverse world affine transform matrix.

The matrix is in Pixels.

var getWorldToNodeTransform ( )

virtual

Returns the inverse world affine transform matrix.

The matrix is in Pixels.

local getWorldToNodeTransform ( )

virtual

Returns the inverse world affine transform matrix.

The matrix is in Pixels.

virtual
CC_DEPRECATED_ATTRIBUTE int
getZOrder ( ) const

inlinevirtual

var getZOrder ( )

inlinevirtual

local getZOrder ( )

inlinevirtual

virtual void
ignoreAnchorPointForPosition ( bool ignore)

virtual

Sets whether the anchor point will be (0,0) when you position this node.

This is an internal method, only used by Layer and Scene. Don't call it outside framework. The default value is false, while in Layer and Scene are true

Parameters

ignore true if anchor point will be (0,0) when you position this node

Todo:: This method shoud be renamed as setIgnoreAnchorPointForPosition(bool) or something with "set"

Reimplemented in Sprite.

var ignoreAnchorPointForPosition ( var ignore)

virtual

Sets whether the anchor point will be (0,0) when you position this node.

This is an internal method, only used by Layer and Scene. Don't call it outside framework. The default value is false, while in Layer and Scene are true

Parameters

ignore true if anchor point will be (0,0) when you position this node

Todo:: This method shoud be renamed as setIgnoreAnchorPointForPosition(bool) or something with "set"

Reimplemented in Sprite.

local ignoreAnchorPointForPosition ( local ignore)

virtual

Sets whether the anchor point will be (0,0) when you position this node.

This is an internal method, only used by Layer and Scene. Don't call it outside framework. The default value is false, while in Layer and Scene are true

Parameters

ignore true if anchor point will be (0,0) when you position this node

Todo:: This method shoud be renamed as setIgnoreAnchorPointForPosition(bool) or something with "set"

Reimplemented in Sprite.

virtual bool init ( )

protectedvirtual

var init ( )

protectedvirtual

local init ( )

protectedvirtual

void insertChild	(	Node *	child,
		int	z
	)

protected

helper that reorder a child

var insertChild	(	var	child,
		var	z
	)

protected

helper that reorder a child

local insertChild	(	local	child,
		local	z
	)

protected

helper that reorder a child

virtual bool isCascadeColorEnabled ( ) const

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

var isCascadeColorEnabled ( )

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

local isCascadeColorEnabled ( )

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

virtual bool
isCascadeOpacityEnabled ( ) const

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

var isCascadeOpacityEnabled ( )

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

local isCascadeOpacityEnabled ( )

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

virtual bool
isIgnoreAnchorPointForPosition ( ) const

virtual

Gets whether the anchor point will be (0,0) when you position this node.

See Also: ignoreAnchorPointForPosition(bool)

Returns: true if the anchor point will be (0,0) when you position this node.

var isIgnoreAnchorPointForPosition ( )

virtual

Gets whether the anchor point will be (0,0) when you position this node.

See Also: ignoreAnchorPointForPosition(bool)

Returns: true if the anchor point will be (0,0) when you position this node.

local
isIgnoreAnchorPointForPosition ( )

virtual

Gets whether the anchor point will be (0,0) when you position this node.

See Also: ignoreAnchorPointForPosition(bool)

Returns: true if the anchor point will be (0,0) when you position this node.

virtual bool isOpacityModifyRGB ( void ) const

inlinevirtual

Reimplemented in __NodeRGBA, Sprite, ParticleSystem, Scale9Sprite, LabelBMFont, __LayerRGBA, Control, Menu, Label, MotionStreak, and AtlasNode.

var isOpacityModifyRGB ( )

inlinevirtual

Reimplemented in __NodeRGBA, Sprite, ParticleSystem, Scale9Sprite, LabelBMFont, __LayerRGBA, Control, Menu, Label, MotionStreak, and AtlasNode.

local isOpacityModifyRGB ( )

inlinevirtual

Reimplemented in __NodeRGBA, Sprite, ParticleSystem, Scale9Sprite, LabelBMFont, __LayerRGBA, Control, Menu, Label, MotionStreak, and AtlasNode.

virtual bool isRunning ( ) const

virtual

Returns whether or not the node accepts event callbacks.

Running means the node accept event callbacks like onEnter(), onExit(), update()

Returns: Whether or not the node is running.

var isRunning ( )

virtual

Returns whether or not the node accepts event callbacks.

Running means the node accept event callbacks like onEnter(), onExit(), update()

Returns: Whether or not the node is running.

local isRunning ( )

virtual

Returns whether or not the node accepts event callbacks.

Running means the node accept event callbacks like onEnter(), onExit(), update()

Returns: Whether or not the node is running.

bool isScheduled ( SEL_SCHEDULE selector)

Checks whether a selector is scheduled.

Parameters

selector A function selector

Returns: Whether the funcion selector is scheduled.

virtual bool isVisible ( ) const

virtual

Determines if the node is visible.

See Also: setVisible(bool)

Returns: true if the node is visible, false if the node is hidden.

var isVisible ( )

virtual

Determines if the node is visible.

See Also: setVisible(bool)

Returns: true if the node is visible, false if the node is hidden.

local isVisible ( )

virtual

Determines if the node is visible.

See Also: setVisible(bool)

Returns: true if the node is visible, false if the node is hidden.

virtual
CC_DEPRECATED_ATTRIBUTE
AffineTransform
nodeToParentTransform ( ) const

inlinevirtual

Deprecated:: use getNodeToParentTransform() instead

var nodeToParentTransform ( )

inlinevirtual

Deprecated:: use getNodeToParentTransform() instead

local nodeToParentTransform ( )

inlinevirtual

Deprecated:: use getNodeToParentTransform() instead

virtual
CC_DEPRECATED_ATTRIBUTE
AffineTransform
nodeToWorldTransform ( ) const

inlinevirtual

Deprecated:: Use getNodeToWorldTransform() instead

var nodeToWorldTransform ( )

inlinevirtual

Deprecated:: Use getNodeToWorldTransform() instead

local nodeToWorldTransform ( )

inlinevirtual

Deprecated:: Use getNodeToWorldTransform() instead

CC_DEPRECATED_ATTRIBUTE
ssize_t numberOfRunningActions ( ) const

inline

Deprecated:: Use getNumberOfRunningActions() instead

var numberOfRunningActions ( )

inline

Deprecated:: Use getNumberOfRunningActions() instead

local numberOfRunningActions ( )

inline

Deprecated:: Use getNumberOfRunningActions() instead

virtual void onEnter ( )

virtual

Event callback that is invoked every time when Node enters the 'stage'.

If the Node enters the 'stage' with a transition, this event is called when the transition starts. During onEnter you can't access a "sister/brother" node. If you override onEnter, you shall call its parent's one, e.g., Node::onEnter().

Reimplemented in TransitionFadeTR, TransitionSplitCols, TransitionTurnOffTiles, Widget, TransitionCrossFade, TransitionFade, TransitionZoomFlipAngular, TransitionZoomFlipY, TransitionZoomFlipX, TransitionFlipAngular, TransitionFlipY, TransitionFlipX, TransitionShrinkGrow, EditBox, ScrollView, TransitionSlideInL, Layout, TransitionMoveInL, TransitionJumpZoom, Armature, PageView, TransitionRotoZoom, TextField, Menu, TransitionScene, TransitionPageTurn, ClippingNode, TransitionProgress, and UICCTextField.

virtual void
onEnterTransitionDidFinish ( )

virtual

Event callback that is invoked when the Node enters in the 'stage'.

If the Node enters the 'stage' with a transition, this event is called when the transition finishes. If you override onEnterTransitionDidFinish, you shall call its parent's one, e.g. Node::onEnterTransitionDidFinish()

Reimplemented in ClippingNode.

virtual void onExit ( )

virtual

Event callback that is invoked every time the Node leaves the 'stage'.

If the Node leaves the 'stage' with a transition, this event is called when the transition finishes. During onExit you can't access a sibling node. If you override onExit, you shall call its parent's one, e.g., Node::onExit().

Reimplemented in TransitionFadeTR, TransitionSplitCols, TransitionTurnOffTiles, TransitionCrossFade, Widget, TransitionFade, EditBox, Layout, Armature, Menu, ClippingNode, TransitionScene, TransitionPageTurn, and TransitionProgress.

virtual void
onExitTransitionDidStart ( )

virtual

Event callback that is called every time the Node leaves the 'stage'.

If the Node leaves the 'stage' with a transition, this callback is called when the transition starts.

Reimplemented in ClippingNode.

virtual
CC_DEPRECATED_ATTRIBUTE
AffineTransform
parentToNodeTransform ( ) const

inlinevirtual

Deprecated:: Use getParentToNodeTransform() instead

var parentToNodeTransform ( )

inlinevirtual

Deprecated:: Use getParentToNodeTransform() instead

local parentToNodeTransform ( )

inlinevirtual

Deprecated:: Use getParentToNodeTransform() instead

void pause ( void )

Pauses all scheduled selectors, actions and event listeners.

This method is called internally by onExit

var pause ( )

Pauses all scheduled selectors, actions and event listeners.

This method is called internally by onExit

local pause ( )

Pauses all scheduled selectors, actions and event listeners.

This method is called internally by onExit

CC_DEPRECATED_ATTRIBUTE void
pauseSchedulerAndActions ( void )

Pauses all scheduled selectors, actions and event listeners.

This method is called internally by onExit

var pauseSchedulerAndActions ( )

Pauses all scheduled selectors, actions and event listeners.

This method is called internally by onExit

local pauseSchedulerAndActions ( )

Pauses all scheduled selectors, actions and event listeners.

This method is called internally by onExit

virtual void removeAllChildren ( )

virtual

Removes all children from the container with a cleanup.

See Also: removeAllChildrenWithCleanup(bool)

Reimplemented in Widget, ScrollView, ListView, and PageView.

var removeAllChildren ( )

virtual

Removes all children from the container with a cleanup.

See Also: removeAllChildrenWithCleanup(bool)

Reimplemented in Widget, ScrollView, ListView, and PageView.

local removeAllChildren ( )

virtual

Removes all children from the container with a cleanup.

See Also: removeAllChildrenWithCleanup(bool)

Reimplemented in Widget, ScrollView, ListView, and PageView.

virtual void
removeAllChildrenWithCleanup ( bool cleanup)

virtual

Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter.

Parameters

cleanup true if all running actions on all children nodes should be cleanup, false oterwise.

Reimplemented in Sprite, Widget, ScrollView, ListView, PageView, SpriteBatchNode, ParticleBatchNode, and ParallaxNode.

var removeAllChildren ( var cleanup)

virtual

Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter.

Parameters

cleanup true if all running actions on all children nodes should be cleanup, false oterwise.

Reimplemented in Sprite, Widget, ScrollView, ListView, PageView, SpriteBatchNode, ParticleBatchNode, and ParallaxNode.

local removeAllChildren ( local cleanup)

virtual

Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter.

Parameters

cleanup true if all running actions on all children nodes should be cleanup, false oterwise.

Reimplemented in Sprite, Widget, ScrollView, ListView, PageView, SpriteBatchNode, ParticleBatchNode, and ParallaxNode.

virtual void removeAllComponents ( )

virtual

removes all components

var removeAllComponents ( )

virtual

removes all components

local removeAllComponents ( )

virtual

removes all components

virtual void removeChild	(	Node *	child,
		bool	cleanup = `true`
	)

virtual

Removes a child from the container.

It will also cleanup all running actions depending on the cleanup parameter.

Parameters

child	The child node which will be removed.
cleanup	true if all running actions and callbacks on the child node will be cleanup, false otherwise.

Reimplemented in Sprite, Widget, ScrollView, TMXLayer, ListView, PageView, SpriteBatchNode, Menu, ParticleBatchNode, ParallaxNode, and BatchNode.

var removeChild	(	var	child,
		var	cleanup = `true`
	)

virtual

Removes a child from the container.

It will also cleanup all running actions depending on the cleanup parameter.

Parameters

child	The child node which will be removed.
cleanup	true if all running actions and callbacks on the child node will be cleanup, false otherwise.

Reimplemented in Sprite, Widget, ScrollView, TMXLayer, ListView, PageView, SpriteBatchNode, Menu, ParticleBatchNode, ParallaxNode, and BatchNode.

local removeChild	(	local	child,
		local	cleanup = `true`
	)

virtual

Removes a child from the container.

It will also cleanup all running actions depending on the cleanup parameter.

Parameters

child	The child node which will be removed.
cleanup	true if all running actions and callbacks on the child node will be cleanup, false otherwise.

Reimplemented in Sprite, Widget, ScrollView, TMXLayer, ListView, PageView, SpriteBatchNode, Menu, ParticleBatchNode, ParallaxNode, and BatchNode.

virtual void removeChildByTag	(	int	tag,
		bool	cleanup = `true`
	)

virtual

Removes a child from the container by tag value.

It will also cleanup all running actions depending on the cleanup parameter

Parameters

tag	An interger number that identifies a child node
cleanup	true if all running actions and callbacks on the child node will be cleanup, false otherwise.

Reimplemented in Widget.

var removeChildByTag	(	var	tag,
		var	cleanup = `true`
	)

virtual

Removes a child from the container by tag value.

It will also cleanup all running actions depending on the cleanup parameter

Parameters

tag	An interger number that identifies a child node
cleanup	true if all running actions and callbacks on the child node will be cleanup, false otherwise.

Reimplemented in Widget.

local removeChildByTag	(	local	tag,
		local	cleanup = `true`
	)

virtual

Removes a child from the container by tag value.

It will also cleanup all running actions depending on the cleanup parameter

Parameters

tag	An interger number that identifies a child node
cleanup	true if all running actions and callbacks on the child node will be cleanup, false otherwise.

Reimplemented in Widget.

virtual bool removeComponent ( const std::string & pName)

virtual

removes a component by its name

var removeComponent ( var pName)

virtual

removes a component by its name

local removeComponent ( local pName)

virtual

removes a component by its name

virtual void removeFromParent ( )

virtual

Removes this node itself from its parent node with a cleanup.

If the node orphan, then nothing happens.

See Also: removeFromParentAndCleanup(bool)

Reimplemented in Widget.

var removeFromParent ( )

virtual

Removes this node itself from its parent node with a cleanup.

If the node orphan, then nothing happens.

See Also: removeFromParentAndCleanup(bool)

Reimplemented in Widget.

local removeFromParent ( )

virtual

Removes this node itself from its parent node with a cleanup.

If the node orphan, then nothing happens.

See Also: removeFromParentAndCleanup(bool)

Reimplemented in Widget.

virtual void
removeFromParentAndCleanup ( bool cleanup)

virtual

Removes this node itself from its parent node.

If the node orphan, then nothing happens.

Parameters

cleanup true if all actions and callbacks on this node should be removed, false otherwise.

Reimplemented in Widget.

var removeFromParent ( var cleanup)

virtual

Removes this node itself from its parent node.

If the node orphan, then nothing happens.

Parameters

cleanup true if all actions and callbacks on this node should be removed, false otherwise.

Reimplemented in Widget.

local removeFromParent ( local cleanup)

virtual

Removes this node itself from its parent node.

If the node orphan, then nothing happens.

Parameters

cleanup true if all actions and callbacks on this node should be removed, false otherwise.

Reimplemented in Widget.

virtual void reorderChild	(	Node *	child,
		int	localZOrder
	)

virtual

Reorders a child according to a new z value.

Parameters

child	An already added child node. It MUST be already added.
localZOrder	Z order for drawing priority. Please refer to setLocalZOrder(int)

Reimplemented in Sprite, SpriteBatchNode, and ParticleBatchNode.

var reorderChild	(	var	child,
		var	localZOrder
	)

virtual

Reorders a child according to a new z value.

Parameters

child	An already added child node. It MUST be already added.
localZOrder	Z order for drawing priority. Please refer to setLocalZOrder(int)

Reimplemented in Sprite, SpriteBatchNode, and ParticleBatchNode.

local reorderChild	(	local	child,
		local	localZOrder
	)

virtual

Reorders a child according to a new z value.

Parameters

child	An already added child node. It MUST be already added.
localZOrder	Z order for drawing priority. Please refer to setLocalZOrder(int)

Reimplemented in Sprite, SpriteBatchNode, and ParticleBatchNode.

void resume ( void )

Resumes all scheduled selectors, actions and event listeners.

This method is called internally by onEnter

var resume ( )

Resumes all scheduled selectors, actions and event listeners.

This method is called internally by onEnter

local resume ( )

Resumes all scheduled selectors, actions and event listeners.

This method is called internally by onEnter

CC_DEPRECATED_ATTRIBUTE void
resumeSchedulerAndActions ( void )

Resumes all scheduled selectors, actions and event listeners.

This method is called internally by onEnter

var resumeSchedulerAndActions ( )

Resumes all scheduled selectors, actions and event listeners.

This method is called internally by onEnter

local resumeSchedulerAndActions ( )

Resumes all scheduled selectors, actions and event listeners.

This method is called internally by onEnter

Action* runAction ( Action * action)

Executes an action, and returns the action that is executed.

This node becomes the action's target. Refer to Action::getTarget()

Warning: Actions don't retain their target.

Returns: An Action pointer

var runAction ( var action)

Executes an action, and returns the action that is executed.

This node becomes the action's target. Refer to Action::getTarget()

Warning: Actions don't retain their target.

Returns: An Action pointer

local runAction ( local action)

Executes an action, and returns the action that is executed.

This node becomes the action's target. Refer to Action::getTarget()

Warning: Actions don't retain their target.

Returns: An Action pointer

void schedule	(	SEL_SCHEDULE	selector,
		float	interval,
		unsigned int	repeat,
		float	delay
	)

Schedules a custom selector.

If the selector is already scheduled, then the interval parameter will be updated without scheduling it again.

// firstly, implement a schedule function
void MyNode::TickMe(float dt);
// wrap this function into a selector via schedule_selector marco.
this->schedule(schedule_selector(MyNode::TickMe), 0, 0, 0);

Parameters

selector	The SEL_SCHEDULE selector to be scheduled.
interval	Tick interval in seconds. 0 means tick every frame. If interval = 0, it's recommended to use scheduleUpdate() instead.
repeat	The selector will be excuted (repeat + 1) times, you can use kRepeatForever for tick infinitely.
delay	The amount of time that the first tick will wait before execution.

var schedule	(	var	selector,
		var	interval,
		var	repeat,
		var	delay
	)

Schedules a custom selector.

If the selector is already scheduled, then the interval parameter will be updated without scheduling it again.

// firstly, implement a schedule function
void MyNode::TickMe(float dt);
// wrap this function into a selector via schedule_selector marco.
this->schedule(schedule_selector(MyNode::TickMe), 0, 0, 0);

Parameters

selector	The SEL_SCHEDULE selector to be scheduled.
interval	Tick interval in seconds. 0 means tick every frame. If interval = 0, it's recommended to use scheduleUpdate() instead.
repeat	The selector will be excuted (repeat + 1) times, you can use kRepeatForever for tick infinitely.
delay	The amount of time that the first tick will wait before execution.

void schedule	(	SEL_SCHEDULE	selector,
		float	interval
	)

Schedules a custom selector with an interval time in seconds.

See Also: schedule(SEL_SCHEDULE, float, unsigned int, float)

Parameters

selector	The SEL_SCHEDULE selector to be scheduled.
interval	Callback interval time in seconds. 0 means tick every frame,

var schedule	(	var	selector,
		var	interval
	)

Schedules a custom selector with an interval time in seconds.

See Also: schedule(SEL_SCHEDULE, float, unsigned int, float)

Parameters

selector	The SEL_SCHEDULE selector to be scheduled.
interval	Callback interval time in seconds. 0 means tick every frame,

void schedule ( SEL_SCHEDULE selector)

Schedules a custom selector, the scheduled selector will be ticked every frame.

See Also: schedule(SEL_SCHEDULE, float, unsigned int, float)

Parameters

selector A function wrapped as a selector

var schedule ( var selector)

Schedules a custom selector, the scheduled selector will be ticked every frame.

See Also: schedule(SEL_SCHEDULE, float, unsigned int, float)

Parameters

selector A function wrapped as a selector

void scheduleOnce	(	SEL_SCHEDULE	selector,
		float	delay
	)

Schedules a selector that runs only once, with a delay of 0 or larger.

See Also: schedule(SEL_SCHEDULE, float, unsigned int, float)

Parameters

selector	The SEL_SCHEDULE selector to be scheduled.
delay	The amount of time that the first tick will wait before execution.

var scheduleOnce	(	var	selector,
		var	delay
	)

Schedules a selector that runs only once, with a delay of 0 or larger.

See Also: schedule(SEL_SCHEDULE, float, unsigned int, float)

Parameters

selector	The SEL_SCHEDULE selector to be scheduled.
delay	The amount of time that the first tick will wait before execution.

void scheduleUpdate ( void )

Schedules the "update" method.

It will use the order number 0. This method will be called every frame. Scheduled methods with a lower order value will be called before the ones that have a higher order value. Only one "update" method could be scheduled per node.

void scheduleUpdateWithPriority ( int priority)

Schedules the "update" method with a custom priority.

This selector will be called every frame. Scheduled methods with a lower priority will be called before the ones that have a higher value. Only one "update" selector could be scheduled per node (You can't have 2 'update' selectors).

void scheduleUpdateWithPriorityLua	(	int	handler,
		int	priority
	)

Schedules for lua script.

local scheduleUpdateWithPriorityLua	(	local	handler,
		local	priority
	)

Schedules for lua script.

virtual void setActionManager ( ActionManager * actionManager)

virtual

Sets the ActionManager object that is used by all actions.

Warning: If you set a new ActionManager, then previously created actions will be removed.

Parameters

actionManager A ActionManager object that is used by all actions.

var setActionManager ( var actionManager)

virtual

Sets the ActionManager object that is used by all actions.

Warning: If you set a new ActionManager, then previously created actions will be removed.

Parameters

actionManager A ActionManager object that is used by all actions.

local setActionManager ( local actionManager)

virtual

Sets the ActionManager object that is used by all actions.

Warning: If you set a new ActionManager, then previously created actions will be removed.

Parameters

actionManager A ActionManager object that is used by all actions.

void setAdditionalTransform ( const AffineTransform & additionalTransform)

Sets an additional transform matrix to the node.

In order to remove it, set the Identity Matrix to the additional transform.

Note: The additional transform will be concatenated at the end of getNodeToParentTransform. It could be used to simulate parent-child relationship between two nodes (e.g. one is in BatchNode, another isn't).
// create a batchNode

SpriteBatchNode* batch= SpriteBatchNode::create("Icon-114.png");

this->addChild(batch);

// create two sprites, spriteA will be added to batchNode, they are using different textures.

Sprite* spriteA = Sprite::createWithTexture(batch->getTexture());

Sprite* spriteB = Sprite::create("Icon-72.png");

batch->addChild(spriteA);

// We can't make spriteB as spriteA's child since they use different textures. So just add it to layer.

// But we want to simulate `parent-child` relationship for these two node.

this->addChild(spriteB);

//position

spriteA->setPosition(Point(200, 200));

// Gets the spriteA's transform.

auto t = spriteA->getNodeToParentTransform();

// Sets the additional transform to spriteB, spriteB's postion will based on its pseudo parent i.e. spriteA.

spriteB->setAdditionalTransform(t);

//scale

spriteA->setScale(2);

// Gets the spriteA's transform.

t = spriteA->getNodeToParentTransform();

// Sets the additional transform to spriteB, spriteB's scale will based on its pseudo parent i.e. spriteA.

spriteB->setAdditionalTransform(t);

//rotation

spriteA->setRotation(20);

// Gets the spriteA's transform.

t = spriteA->getNodeToParentTransform();

// Sets the additional transform to spriteB, spriteB's rotation will based on its pseudo parent i.e. spriteA.

spriteB->setAdditionalTransform(t);

var setAdditionalTransform ( var additionalTransform)

Sets an additional transform matrix to the node.

In order to remove it, set the Identity Matrix to the additional transform.

Note: The additional transform will be concatenated at the end of getNodeToParentTransform. It could be used to simulate parent-child relationship between two nodes (e.g. one is in BatchNode, another isn't).
// create a batchNode

SpriteBatchNode* batch= SpriteBatchNode::create("Icon-114.png");

this->addChild(batch);

// create two sprites, spriteA will be added to batchNode, they are using different textures.

Sprite* spriteA = Sprite::createWithTexture(batch->getTexture());

Sprite* spriteB = Sprite::create("Icon-72.png");

batch->addChild(spriteA);

// We can't make spriteB as spriteA's child since they use different textures. So just add it to layer.

// But we want to simulate `parent-child` relationship for these two node.

this->addChild(spriteB);

//position

spriteA->setPosition(Point(200, 200));

// Gets the spriteA's transform.

auto t = spriteA->getNodeToParentTransform();

// Sets the additional transform to spriteB, spriteB's postion will based on its pseudo parent i.e. spriteA.

spriteB->setAdditionalTransform(t);

//scale

spriteA->setScale(2);

// Gets the spriteA's transform.

t = spriteA->getNodeToParentTransform();

// Sets the additional transform to spriteB, spriteB's scale will based on its pseudo parent i.e. spriteA.

spriteB->setAdditionalTransform(t);

//rotation

spriteA->setRotation(20);

// Gets the spriteA's transform.

t = spriteA->getNodeToParentTransform();

// Sets the additional transform to spriteB, spriteB's rotation will based on its pseudo parent i.e. spriteA.

spriteB->setAdditionalTransform(t);

local setAdditionalTransform ( local additionalTransform)

Sets an additional transform matrix to the node.

In order to remove it, set the Identity Matrix to the additional transform.

Note: The additional transform will be concatenated at the end of getNodeToParentTransform. It could be used to simulate parent-child relationship between two nodes (e.g. one is in BatchNode, another isn't).
// create a batchNode

SpriteBatchNode* batch= SpriteBatchNode::create("Icon-114.png");

this->addChild(batch);

// create two sprites, spriteA will be added to batchNode, they are using different textures.

Sprite* spriteA = Sprite::createWithTexture(batch->getTexture());

Sprite* spriteB = Sprite::create("Icon-72.png");

batch->addChild(spriteA);

// We can't make spriteB as spriteA's child since they use different textures. So just add it to layer.

// But we want to simulate `parent-child` relationship for these two node.

this->addChild(spriteB);

//position

spriteA->setPosition(Point(200, 200));

// Gets the spriteA's transform.

auto t = spriteA->getNodeToParentTransform();

// Sets the additional transform to spriteB, spriteB's postion will based on its pseudo parent i.e. spriteA.

spriteB->setAdditionalTransform(t);

//scale

spriteA->setScale(2);

// Gets the spriteA's transform.

t = spriteA->getNodeToParentTransform();

// Sets the additional transform to spriteB, spriteB's scale will based on its pseudo parent i.e. spriteA.

spriteB->setAdditionalTransform(t);

//rotation

spriteA->setRotation(20);

// Gets the spriteA's transform.

t = spriteA->getNodeToParentTransform();

// Sets the additional transform to spriteB, spriteB's rotation will based on its pseudo parent i.e. spriteA.

spriteB->setAdditionalTransform(t);

void setAdditionalTransform ( const kmMat4 & additionalTransform)

var setAdditionalTransform ( var additionalTransform)

local setAdditionalTransform ( local additionalTransform)

virtual void setAnchorPoint ( const Point & anchorPoint)

virtual

Sets the anchor point in percent.

anchorPoint is the point around which all transformations and positioning manipulations take place. It's like a pin in the node where it is "attached" to its parent. The anchorPoint is normalized, like a percentage. (0,0) means the bottom-left corner and (1,1) means the top-right corner. But you can use values higher than (1,1) and lower than (0,0) too. The default anchorPoint is (0.5,0.5), so it starts in the center of the node.

Parameters

anchorPoint The anchor point of node.

Reimplemented in Sprite, EditBox, LabelBMFont, Armature, Text, CheckBox, TextField, Button, ProgressTimer, ImageView, TextAtlas, and TextBMFont.

var setAnchorPoint ( var anchorPoint)

virtual

Sets the anchor point in percent.

anchorPoint is the point around which all transformations and positioning manipulations take place. It's like a pin in the node where it is "attached" to its parent. The anchorPoint is normalized, like a percentage. (0,0) means the bottom-left corner and (1,1) means the top-right corner. But you can use values higher than (1,1) and lower than (0,0) too. The default anchorPoint is (0.5,0.5), so it starts in the center of the node.

Parameters

anchorPoint The anchor point of node.

Reimplemented in Sprite, EditBox, LabelBMFont, Armature, Text, CheckBox, TextField, Button, ProgressTimer, ImageView, TextAtlas, and TextBMFont.

local setAnchorPoint ( local anchorPoint)

virtual

Sets the anchor point in percent.

anchorPoint is the point around which all transformations and positioning manipulations take place. It's like a pin in the node where it is "attached" to its parent. The anchorPoint is normalized, like a percentage. (0,0) means the bottom-left corner and (1,1) means the top-right corner. But you can use values higher than (1,1) and lower than (0,0) too. The default anchorPoint is (0.5,0.5), so it starts in the center of the node.

Parameters

anchorPoint The anchor point of node.

Reimplemented in Sprite, EditBox, LabelBMFont, Armature, Text, CheckBox, TextField, Button, ProgressTimer, ImageView, TextAtlas, and TextBMFont.

virtual void setCascadeColorEnabled ( bool cascadeColorEnabled)

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

var setCascadeColorEnabled ( var cascadeColorEnabled)

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

local setCascadeColorEnabled ( local cascadeColorEnabled)

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

virtual void
setCascadeOpacityEnabled ( bool cascadeOpacityEnabled)

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

var setCascadeOpacityEnabled ( var cascadeOpacityEnabled)

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

local setCascadeOpacityEnabled ( local cascadeOpacityEnabled)

virtual

Reimplemented in __NodeRGBA, and __LayerRGBA.

virtual void setColor ( const Color3B & color)

virtual

Reimplemented in __NodeRGBA, Scale9Sprite, __LayerRGBA, ControlButton, Button, Label, ProgressTimer, AtlasNode, and ControlColourPicker.

var setColor ( var color)

virtual

Reimplemented in __NodeRGBA, Scale9Sprite, __LayerRGBA, ControlButton, Button, Label, ProgressTimer, AtlasNode, and ControlColourPicker.

local setColor ( local color)

virtual

Reimplemented in __NodeRGBA, Scale9Sprite, __LayerRGBA, ControlButton, Button, Label, ProgressTimer, AtlasNode, and ControlColourPicker.

virtual void setContentSize ( const Size & contentSize)

virtual

Sets the untransformed size of the node.

The contentSize remains the same no matter the node is scaled or rotated. All nodes has a size. Layer and Scene has the same size of the screen.

Parameters

contentSize The untransformed size of the node.

Reimplemented in EditBox, LayerColor, Scale9Sprite, and ScrollView.

var setContentSize ( var contentSize)

virtual

Sets the untransformed size of the node.

The contentSize remains the same no matter the node is scaled or rotated. All nodes has a size. Layer and Scene has the same size of the screen.

Parameters

contentSize The untransformed size of the node.

Reimplemented in EditBox, LayerColor, Scale9Sprite, and ScrollView.

local setContentSize ( local contentSize)

virtual

Sets the untransformed size of the node.

The contentSize remains the same no matter the node is scaled or rotated. All nodes has a size. Layer and Scene has the same size of the screen.

Parameters

contentSize The untransformed size of the node.

Reimplemented in EditBox, LayerColor, Scale9Sprite, and ScrollView.

virtual void setEventDispatcher ( EventDispatcher * dispatcher)

virtual

var setEventDispatcher ( var dispatcher)

virtual

local setEventDispatcher ( local dispatcher)

virtual

virtual void setGlobalZOrder ( float globalZOrder)

virtual

Defines the oder in which the nodes are renderer.

Nodes that have a Global Z Order lower, are renderer first.

In case two or more nodes have the same Global Z Order, the oder is not guaranteed. The only exception if the Nodes have a Global Z Order == 0. In that case, the Scene Graph order is used.

By default, all nodes have a Global Z Order = 0. That means that by default, the Scene Graph order is used to render the nodes.

Global Z Order is useful when you need to render nodes in an order different than the Scene Graph order.

Limitations: Global Z Order can't be used used by Nodes that have SpriteBatchNode as one of their acenstors. And if ClippingNode is one of the ancestors, then "global Z order" will be relative to the ClippingNode.

See Also: setLocalZOrder(); setVertexZ()

Since: v3.0

var setGlobalZOrder ( var globalZOrder)

virtual

Defines the oder in which the nodes are renderer.

Nodes that have a Global Z Order lower, are renderer first.

In case two or more nodes have the same Global Z Order, the oder is not guaranteed. The only exception if the Nodes have a Global Z Order == 0. In that case, the Scene Graph order is used.

By default, all nodes have a Global Z Order = 0. That means that by default, the Scene Graph order is used to render the nodes.

Global Z Order is useful when you need to render nodes in an order different than the Scene Graph order.

Limitations: Global Z Order can't be used used by Nodes that have SpriteBatchNode as one of their acenstors. And if ClippingNode is one of the ancestors, then "global Z order" will be relative to the ClippingNode.

See Also: setLocalZOrder(); setVertexZ()

Since: v3.0

local setGlobalZOrder ( local globalZOrder)

virtual

Defines the oder in which the nodes are renderer.

Nodes that have a Global Z Order lower, are renderer first.

In case two or more nodes have the same Global Z Order, the oder is not guaranteed. The only exception if the Nodes have a Global Z Order == 0. In that case, the Scene Graph order is used.

By default, all nodes have a Global Z Order = 0. That means that by default, the Scene Graph order is used to render the nodes.

Global Z Order is useful when you need to render nodes in an order different than the Scene Graph order.

Limitations: Global Z Order can't be used used by Nodes that have SpriteBatchNode as one of their acenstors. And if ClippingNode is one of the ancestors, then "global Z order" will be relative to the ClippingNode.

See Also: setLocalZOrder(); setVertexZ()

Since: v3.0

CC_DEPRECATED_ATTRIBUTE void
setGLServerState ( int serverState)

inline

Deprecated:: No longer needed

virtual void setLocalZOrder ( int localZOrder)

virtual

LocalZOrder is the 'key' used to sort the node relative to its siblings.

The Node's parent will sort all its children based ont the LocalZOrder value. If two nodes have the same LocalZOrder, then the node that was added first to the children's array will be in front of the other node in the array.

Also, the Scene Graph is traversed using the "In-Order" tree traversal algorithm ( http://en.wikipedia.org/wiki/Tree_traversal#In-order ) And Nodes that have LocalZOder values < 0 are the "left" subtree While Nodes with LocalZOder >=0 are the "right" subtree.

See Also: setGlobalZOrder; setVertexZ

Reimplemented in Bone.

var setLocalZOrder ( var localZOrder)

virtual

LocalZOrder is the 'key' used to sort the node relative to its siblings.

The Node's parent will sort all its children based ont the LocalZOrder value. If two nodes have the same LocalZOrder, then the node that was added first to the children's array will be in front of the other node in the array.

Also, the Scene Graph is traversed using the "In-Order" tree traversal algorithm ( http://en.wikipedia.org/wiki/Tree_traversal#In-order ) And Nodes that have LocalZOder values < 0 are the "left" subtree While Nodes with LocalZOder >=0 are the "right" subtree.

See Also: setGlobalZOrder; setVertexZ

Reimplemented in Bone.

local setLocalZOrder ( local localZOrder)

virtual

LocalZOrder is the 'key' used to sort the node relative to its siblings.

The Node's parent will sort all its children based ont the LocalZOrder value. If two nodes have the same LocalZOrder, then the node that was added first to the children's array will be in front of the other node in the array.

Also, the Scene Graph is traversed using the "In-Order" tree traversal algorithm ( http://en.wikipedia.org/wiki/Tree_traversal#In-order ) And Nodes that have LocalZOder values < 0 are the "left" subtree While Nodes with LocalZOder >=0 are the "right" subtree.

See Also: setGlobalZOrder; setVertexZ

Reimplemented in Bone.

virtual void
setNodeToParentTransform ( const kmMat4 & transform)

virtual

Sets the Transformation matrix manually.

var setNodeToParentTransform ( var transform)

virtual

Sets the Transformation matrix manually.

local setNodeToParentTransform ( local transform)

virtual

Sets the Transformation matrix manually.

virtual void setOpacity ( GLubyte opacity)

virtual

Reimplemented in __NodeRGBA, Scale9Sprite, __LayerRGBA, ControlButton, ProgressTimer, MotionStreak, and AtlasNode.

var setOpacity ( var opacity)

virtual

Reimplemented in __NodeRGBA, Scale9Sprite, __LayerRGBA, ControlButton, ProgressTimer, MotionStreak, and AtlasNode.

local setOpacity ( local opacity)

virtual

Reimplemented in __NodeRGBA, Scale9Sprite, __LayerRGBA, ControlButton, ProgressTimer, MotionStreak, and AtlasNode.

virtual void setOpacityModifyRGB ( bool bValue)

inlinevirtual

Reimplemented in __NodeRGBA, Sprite, ParticleSystem, Scale9Sprite, LabelBMFont, __LayerRGBA, Control, Menu, Label, MotionStreak, and AtlasNode.

var setOpacityModifyRGB ( var bValue)

inlinevirtual

Reimplemented in __NodeRGBA, Sprite, ParticleSystem, Scale9Sprite, LabelBMFont, __LayerRGBA, Control, Menu, Label, MotionStreak, and AtlasNode.

local setOpacityModifyRGB ( local bValue)

inlinevirtual

Reimplemented in __NodeRGBA, Sprite, ParticleSystem, Scale9Sprite, LabelBMFont, __LayerRGBA, Control, Menu, Label, MotionStreak, and AtlasNode.

void setOrderOfArrival ( int orderOfArrival)

Sets the arrival order when this node has a same ZOrder with other children.

A node which called addChild subsequently will take a larger arrival order, If two children have the same Z order, the child with larger arrival order will be drawn later.

Warning: This method is used internally for localZOrder sorting, don't change this manually

Parameters

orderOfArrival The arrival order.

var setOrderOfArrival ( var orderOfArrival)

Sets the arrival order when this node has a same ZOrder with other children.

A node which called addChild subsequently will take a larger arrival order, If two children have the same Z order, the child with larger arrival order will be drawn later.

Warning: This method is used internally for localZOrder sorting, don't change this manually

Parameters

orderOfArrival The arrival order.

local setOrderOfArrival ( local orderOfArrival)

Sets the arrival order when this node has a same ZOrder with other children.

A node which called addChild subsequently will take a larger arrival order, If two children have the same Z order, the child with larger arrival order will be drawn later.

Warning: This method is used internally for localZOrder sorting, don't change this manually

Parameters

orderOfArrival The arrival order.

virtual void setParent ( Node * parent)

virtual

Sets the parent node.

Parameters

parent A pointer to the parent node

var setParent ( var parent)

virtual

Sets the parent node.

Parameters

parent A pointer to the parent node

local setParent ( local parent)

virtual

Sets the parent node.

Parameters

parent A pointer to the parent node

void setPhysicsBody ( PhysicsBody * body)

set the PhysicsBody that let the sprite effect with physics

var setPhysicsBody ( var body)

set the PhysicsBody that let the sprite effect with physics

local setPhysicsBody ( local body)

set the PhysicsBody that let the sprite effect with physics

virtual void setPosition ( const Point & position)

virtual

Changes the position (x,y) of the node in OpenGL coordinates.

Usually we use Point(x,y) to compose Point object. The original point (0,0) is at the left-bottom corner of screen. For example, this codesnip sets the node in the center of screen.

Size size = Director::getInstance()->getWinSize();

node->setPosition( Point(size.width/2, size.height/2) )

Parameters

position The position (x,y) of the node in OpenGL coordinates

Reimplemented in Sprite, EditBox, Widget, PhysicsSprite, and MotionStreak.

var setPosition ( var position)

virtual

Changes the position (x,y) of the node in OpenGL coordinates.

Usually we use Point(x,y) to compose Point object. The original point (0,0) is at the left-bottom corner of screen. For example, this codesnip sets the node in the center of screen.

Size size = Director::getInstance()->getWinSize();

node->setPosition( Point(size.width/2, size.height/2) )

Parameters

position The position (x,y) of the node in OpenGL coordinates

Reimplemented in Sprite, EditBox, Widget, PhysicsSprite, and MotionStreak.

local setPosition ( local position)

virtual

Changes the position (x,y) of the node in OpenGL coordinates.

Usually we use Point(x,y) to compose Point object. The original point (0,0) is at the left-bottom corner of screen. For example, this codesnip sets the node in the center of screen.

Size size = Director::getInstance()->getWinSize();

node->setPosition( Point(size.width/2, size.height/2) )

Parameters

position The position (x,y) of the node in OpenGL coordinates

Reimplemented in Sprite, EditBox, Widget, PhysicsSprite, and MotionStreak.

virtual void setPosition	(	float	x,
		float	y
	)

virtual

Sets position in a more efficient way.

Passing two numbers (x,y) is much efficient than passing Point object. This method is binded to lua and javascript. Passing a number is 10 times faster than passing a object from lua to c++

// sample code in lua
local pos  = node::getPosition()  -- returns Point object from C++
node:setPosition(x, y)            -- pass x, y coordinate to C++

Parameters

x	X coordinate for position
y	Y coordinate for position

Reimplemented in Sprite.

var setPosition	(	var	x,
		var	y
	)

virtual

Sets position in a more efficient way.

Passing two numbers (x,y) is much efficient than passing Point object. This method is binded to lua and javascript. Passing a number is 10 times faster than passing a object from lua to c++

// sample code in lua
local pos  = node::getPosition()  -- returns Point object from C++
node:setPosition(x, y)            -- pass x, y coordinate to C++

Parameters

x	X coordinate for position
y	Y coordinate for position

Reimplemented in Sprite.

local setPosition	(	local	x,
		local	y
	)

virtual

Sets position in a more efficient way.

Passing two numbers (x,y) is much efficient than passing Point object. This method is binded to lua and javascript. Passing a number is 10 times faster than passing a object from lua to c++

// sample code in lua
local pos  = node::getPosition()  -- returns Point object from C++
node:setPosition(x, y)            -- pass x, y coordinate to C++

Parameters

x	X coordinate for position
y	Y coordinate for position

Reimplemented in Sprite.

virtual void setPositionX ( float x)

virtual

Gets/Sets x or y coordinate individually for position.

These methods are used in Lua and Javascript Bindings

var setPositionX ( var x)

virtual

Gets/Sets x or y coordinate individually for position.

These methods are used in Lua and Javascript Bindings

local setPositionX ( local x)

virtual

Gets/Sets x or y coordinate individually for position.

These methods are used in Lua and Javascript Bindings

virtual void setPositionY ( float y)

virtual

var setPositionY ( var y)

virtual

local setPositionY ( local y)

virtual

virtual void setRotation ( float rotation)

virtual

Sets the rotation (angle) of the node in degrees.

0 is the default rotation angle. Positive values rotate node clockwise, and negative values for anti-clockwise.

Parameters

rotation The rotation of the node in degrees.

Reimplemented in Sprite, ParticleSystem, and PhysicsSprite.

var setRotation ( var rotation)

virtual

Sets the rotation (angle) of the node in degrees.

0 is the default rotation angle. Positive values rotate node clockwise, and negative values for anti-clockwise.

Parameters

rotation The rotation of the node in degrees.

Reimplemented in Sprite, ParticleSystem, and PhysicsSprite.

local setRotation ( local rotation)

virtual

Sets the rotation (angle) of the node in degrees.

0 is the default rotation angle. Positive values rotate node clockwise, and negative values for anti-clockwise.

Parameters

rotation The rotation of the node in degrees.

Reimplemented in Sprite, ParticleSystem, and PhysicsSprite.

virtual void setRotationX ( float rotationX)

virtual

Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew.

0 is the default rotation angle. Positive values rotate node clockwise, and negative values for anti-clockwise.

Parameters

rotationX The X rotation in degrees which performs a horizontal rotational skew.

Reimplemented in Sprite.

var setRotationX ( var rotationX)

virtual

Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew.

0 is the default rotation angle. Positive values rotate node clockwise, and negative values for anti-clockwise.

Parameters

rotationX The X rotation in degrees which performs a horizontal rotational skew.

Reimplemented in Sprite.

local setRotationX ( local rotationX)

virtual

Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew.

0 is the default rotation angle. Positive values rotate node clockwise, and negative values for anti-clockwise.

Parameters

rotationX The X rotation in degrees which performs a horizontal rotational skew.

Reimplemented in Sprite.

virtual void setRotationY ( float rotationY)

virtual

Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew.

0 is the default rotation angle. Positive values rotate node clockwise, and negative values for anti-clockwise.

Parameters

rotationY The Y rotation in degrees.

Reimplemented in Sprite.

var setRotationY ( var rotationY)

virtual

Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew.

0 is the default rotation angle. Positive values rotate node clockwise, and negative values for anti-clockwise.

Parameters

rotationY The Y rotation in degrees.

Reimplemented in Sprite.

local setRotationY ( local rotationY)

virtual

Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew.

0 is the default rotation angle. Positive values rotate node clockwise, and negative values for anti-clockwise.

Parameters

rotationY The Y rotation in degrees.

Reimplemented in Sprite.

virtual void setScale ( float scale)

virtual

Changes both X and Y scale factor of the node.

1.0 is the default scale factor. It modifies the X and Y scale at the same time.

Parameters

scale The scale factor for both X and Y axis.

Reimplemented in Sprite, LabelBMFont, ParticleSystem, Text, and Label.

var setScale ( var scale)

virtual

Changes both X and Y scale factor of the node.

1.0 is the default scale factor. It modifies the X and Y scale at the same time.

Parameters

scale The scale factor for both X and Y axis.

Reimplemented in Sprite, LabelBMFont, ParticleSystem, Text, and Label.

local setScale ( local scale)

virtual

Changes both X and Y scale factor of the node.

1.0 is the default scale factor. It modifies the X and Y scale at the same time.

Parameters

scale The scale factor for both X and Y axis.

Reimplemented in Sprite, LabelBMFont, ParticleSystem, Text, and Label.

virtual void setScale	(	float	scaleX,
		float	scaleY
	)

virtual

Changes both X and Y scale factor of the node.

1.0 is the default scale factor. It modifies the X and Y scale at the same time.

Parameters

scaleX	The scale factor on X axis.
scaleY	The scale factor on Y axis.

Reimplemented in Sprite.

var setScale	(	var	scaleX,
		var	scaleY
	)

virtual

Changes both X and Y scale factor of the node.

1.0 is the default scale factor. It modifies the X and Y scale at the same time.

Parameters

scaleX	The scale factor on X axis.
scaleY	The scale factor on Y axis.

Reimplemented in Sprite.

local setScale	(	local	scaleX,
		local	scaleY
	)

virtual

Changes both X and Y scale factor of the node.

1.0 is the default scale factor. It modifies the X and Y scale at the same time.

Parameters

scaleX	The scale factor on X axis.
scaleY	The scale factor on Y axis.

Reimplemented in Sprite.

virtual void setScaleX ( float scaleX)

virtual

Changes the scale factor on X axis of this node.

The deafult value is 1.0 if you haven't changed it before

Parameters

scaleX The scale factor on X axis.

Reimplemented in Sprite, LabelBMFont, ParticleSystem, Text, and Label.

var setScaleX ( var scaleX)

virtual

Changes the scale factor on X axis of this node.

The deafult value is 1.0 if you haven't changed it before

Parameters

scaleX The scale factor on X axis.

Reimplemented in Sprite, LabelBMFont, ParticleSystem, Text, and Label.

local setScaleX ( local scaleX)

virtual

Changes the scale factor on X axis of this node.

The deafult value is 1.0 if you haven't changed it before

Parameters

scaleX The scale factor on X axis.

Reimplemented in Sprite, LabelBMFont, ParticleSystem, Text, and Label.

virtual void setScaleY ( float scaleY)

virtual

Changes the scale factor on Y axis of this node.

The Default value is 1.0 if you haven't changed it before.

Parameters

scaleY The scale factor on Y axis.

Reimplemented in Sprite, LabelBMFont, ParticleSystem, Text, and Label.

var setScaleY ( var scaleY)

virtual

Changes the scale factor on Y axis of this node.

The Default value is 1.0 if you haven't changed it before.

Parameters

scaleY The scale factor on Y axis.

Reimplemented in Sprite, LabelBMFont, ParticleSystem, Text, and Label.

local setScaleY ( local scaleY)

virtual

Changes the scale factor on Y axis of this node.

The Default value is 1.0 if you haven't changed it before.

Parameters

scaleY The scale factor on Y axis.

Reimplemented in Sprite, LabelBMFont, ParticleSystem, Text, and Label.

virtual void setScheduler ( Scheduler * scheduler)

virtual

Sets a Scheduler object that is used to schedule all "updates" and timers.

Warning: If you set a new Scheduler, then previously created timers/update are going to be removed.

Parameters

scheduler A Shdeduler object that is used to schedule all "update" and timers.

var setScheduler ( var scheduler)

virtual

Sets a Scheduler object that is used to schedule all "updates" and timers.

Warning: If you set a new Scheduler, then previously created timers/update are going to be removed.

Parameters

scheduler A Shdeduler object that is used to schedule all "update" and timers.

local setScheduler ( local scheduler)

virtual

Sets a Scheduler object that is used to schedule all "updates" and timers.

Warning: If you set a new Scheduler, then previously created timers/update are going to be removed.

Parameters

scheduler A Shdeduler object that is used to schedule all "update" and timers.

virtual void setShaderProgram ( GLProgram * shaderProgram)

virtual

Sets the shader program for this node.

Since v2.0, each rendering node must set its shader program. It should be set in initialize phase.

node->setShaderProgram(ShaderCache::getInstance()->getProgram(GLProgram::SHADER_NAME_POSITION_TEXTURE_COLOR));

Parameters

shaderProgram The shader program which fetchs from ShaderCache.

var setShaderProgram ( var shaderProgram)

virtual

Sets the shader program for this node.

Since v2.0, each rendering node must set its shader program. It should be set in initialize phase.

node->setShaderProgram(ShaderCache::getInstance()->getProgram(GLProgram::SHADER_NAME_POSITION_TEXTURE_COLOR));

Parameters

shaderProgram The shader program which fetchs from ShaderCache.

local setShaderProgram ( local shaderProgram)

virtual

Sets the shader program for this node.

Since v2.0, each rendering node must set its shader program. It should be set in initialize phase.

node->setShaderProgram(ShaderCache::getInstance()->getProgram(GLProgram::SHADER_NAME_POSITION_TEXTURE_COLOR));

Parameters

shaderProgram The shader program which fetchs from ShaderCache.

virtual void setSkewX ( float fSkewX)

virtual

Changes the X skew angle of the node in degrees.

This angle describes the shear distortion in the X direction. Thus, it is the angle between the Y axis and the left edge of the shape The default skewX angle is 0. Positive values distort the node in a CW direction.

Parameters

fSkewX The X skew angle of the node in degrees.

Reimplemented in Sprite.

var setSkewX ( var fSkewX)

virtual

Changes the X skew angle of the node in degrees.

This angle describes the shear distortion in the X direction. Thus, it is the angle between the Y axis and the left edge of the shape The default skewX angle is 0. Positive values distort the node in a CW direction.

Parameters

fSkewX The X skew angle of the node in degrees.

Reimplemented in Sprite.

local setSkewX ( local fSkewX)

virtual

Changes the X skew angle of the node in degrees.

This angle describes the shear distortion in the X direction. Thus, it is the angle between the Y axis and the left edge of the shape The default skewX angle is 0. Positive values distort the node in a CW direction.

Parameters

fSkewX The X skew angle of the node in degrees.

Reimplemented in Sprite.

virtual void setSkewY ( float fSkewY)

virtual

Changes the Y skew angle of the node in degrees.

This angle describes the shear distortion in the Y direction. Thus, it is the angle between the X axis and the bottom edge of the shape The default skewY angle is 0. Positive values distort the node in a CCW direction.

Parameters

fSkewY The Y skew angle of the node in degrees.

Reimplemented in Sprite.

var setSkewY ( var fSkewY)

virtual

Changes the Y skew angle of the node in degrees.

This angle describes the shear distortion in the Y direction. Thus, it is the angle between the X axis and the bottom edge of the shape The default skewY angle is 0. Positive values distort the node in a CCW direction.

Parameters

fSkewY The Y skew angle of the node in degrees.

Reimplemented in Sprite.

local setSkewY ( local fSkewY)

virtual

Changes the Y skew angle of the node in degrees.

This angle describes the shear distortion in the Y direction. Thus, it is the angle between the X axis and the bottom edge of the shape The default skewY angle is 0. Positive values distort the node in a CCW direction.

Parameters

fSkewY The Y skew angle of the node in degrees.

Reimplemented in Sprite.

virtual void setTag ( int tag)

virtual

Changes the tag that is used to identify the node easily.

Please refer to getTag for the sample code.

Parameters

tag	A interger that indentifies the node.

var setTag ( var tag)

virtual

Changes the tag that is used to identify the node easily.

Please refer to getTag for the sample code.

Parameters

tag	A interger that indentifies the node.

local setTag ( local tag)

virtual

Changes the tag that is used to identify the node easily.

Please refer to getTag for the sample code.

Parameters

tag	A interger that indentifies the node.

virtual void setUserData ( void * userData)

virtual

Sets a custom user data pointer.

You can set everything in UserData pointer, a data block, a structure or an object, etc.

Warning: Don't forget to release the memory manually, especially before you change this data pointer, and before this node is autoreleased.

Parameters

userData A custom user data pointer

virtual void setUserObject ( Object * userObject)

virtual

Returns a user assigned Object.

Similar to UserData, but instead of holding a void* it holds an object. The UserObject will be retained once in this method, and the previous UserObject (if existed) will be relese. The UserObject will be released in Node's destructure.

Parameters

userObject A user assigned Object

var setUserObject ( var userObject)

virtual

Returns a user assigned Object.

Similar to UserData, but instead of holding a void* it holds an object. The UserObject will be retained once in this method, and the previous UserObject (if existed) will be relese. The UserObject will be released in Node's destructure.

Parameters

userObject A user assigned Object

local setUserObject ( local userObject)

virtual

Returns a user assigned Object.

Similar to UserData, but instead of holding a void* it holds an object. The UserObject will be retained once in this method, and the previous UserObject (if existed) will be relese. The UserObject will be released in Node's destructure.

Parameters

userObject A user assigned Object

virtual void setVertexZ ( float vertexZ)

virtual

Sets the 'z' value in the OpenGL Depth Buffer.

The OpenGL depth buffer and depth testing are disabled by default. You need to turn them on in order to use this property correctly.

setVertexZ() also sets the setGlobalZValue() with the vertexZ value.

See Also: setGlobalZValue()

Parameters

vertexZ OpenGL Z vertex of this node.

Reimplemented in Sprite.

var setVertexZ ( var vertexZ)

virtual

Sets the 'z' value in the OpenGL Depth Buffer.

The OpenGL depth buffer and depth testing are disabled by default. You need to turn them on in order to use this property correctly.

setVertexZ() also sets the setGlobalZValue() with the vertexZ value.

See Also: setGlobalZValue()

Parameters

vertexZ OpenGL Z vertex of this node.

Reimplemented in Sprite.

local setVertexZ ( local vertexZ)

virtual

Sets the 'z' value in the OpenGL Depth Buffer.

The OpenGL depth buffer and depth testing are disabled by default. You need to turn them on in order to use this property correctly.

setVertexZ() also sets the setGlobalZValue() with the vertexZ value.

See Also: setGlobalZValue()

Parameters

vertexZ OpenGL Z vertex of this node.

Reimplemented in Sprite.

virtual void setVisible ( bool visible)

virtual

Sets whether the node is visible.

The default value is true, a node is default to visible

Parameters

visible true if the node is visible, false if the node is hidden.

Reimplemented in Sprite, and EditBox.

var setVisible ( var visible)

virtual

Sets whether the node is visible.

The default value is true, a node is default to visible

Parameters

visible true if the node is visible, false if the node is hidden.

Reimplemented in Sprite, and EditBox.

local setVisible ( local visible)

virtual

Sets whether the node is visible.

The default value is true, a node is default to visible

Parameters

visible true if the node is visible, false if the node is hidden.

Reimplemented in Sprite, and EditBox.

virtual
CC_DEPRECATED_ATTRIBUTE void
setZOrder ( int localZOrder)

inlinevirtual

var setZOrder ( var localZOrder)

inlinevirtual

local setZOrder ( local localZOrder)

inlinevirtual

virtual void sortAllChildren ( )

virtual

Sorts the children array once before drawing, instead of every time when a child is added or reordered.

This appraoch can improves the performance massively.

Note: Don't call this manually unless a child added needs to be removed in the same frame

Reimplemented in Sprite, Widget, Layout, SpriteBatchNode, and ListView.

var sortAllChildren ( )

virtual

Sorts the children array once before drawing, instead of every time when a child is added or reordered.

This appraoch can improves the performance massively.

Note: Don't call this manually unless a child added needs to be removed in the same frame

Reimplemented in Sprite, Widget, Layout, SpriteBatchNode, and ListView.

local sortAllChildren ( )

virtual

Sorts the children array once before drawing, instead of every time when a child is added or reordered.

This appraoch can improves the performance massively.

Note: Don't call this manually unless a child added needs to be removed in the same frame

Reimplemented in Sprite, Widget, Layout, SpriteBatchNode, and ListView.

void stopAction ( Action * action)

Stops and removes an action from the running action list.

Parameters

action The action object to be removed.

var stopAction ( var action)

Stops and removes an action from the running action list.

Parameters

action The action object to be removed.

local stopAction ( local action)

Stops and removes an action from the running action list.

Parameters

action The action object to be removed.

void stopActionByTag ( int tag)

Removes an action from the running action list by its tag.

Parameters

tag	A tag that indicates the action to be removed.

var stopActionByTag ( var tag)

Removes an action from the running action list by its tag.

Parameters

tag	A tag that indicates the action to be removed.

local stopActionByTag ( local tag)

Removes an action from the running action list by its tag.

Parameters

tag	A tag that indicates the action to be removed.

void stopAllActions ( )

Stops and removes all actions from the running action list .

var stopAllActions ( )

Stops and removes all actions from the running action list .

local stopAllActions ( )

Stops and removes all actions from the running action list .

void transform ( )

Performs OpenGL view-matrix transformation based on position, scale, rotation and other attributes.

var transform ( )

Performs OpenGL view-matrix transformation based on position, scale, rotation and other attributes.

local transform ( )

Performs OpenGL view-matrix transformation based on position, scale, rotation and other attributes.

void transformAncestors ( )

Performs OpenGL view-matrix transformation of it's ancestors.

Generally the ancestors are already transformed, but in certain cases (eg: attaching a FBO) It's necessary to transform the ancestors again.

var transformAncestors ( )

Performs OpenGL view-matrix transformation of it's ancestors.

Generally the ancestors are already transformed, but in certain cases (eg: attaching a FBO) It's necessary to transform the ancestors again.

local transformAncestors ( )

Performs OpenGL view-matrix transformation of it's ancestors.

Generally the ancestors are already transformed, but in certain cases (eg: attaching a FBO) It's necessary to transform the ancestors again.

void unschedule ( SEL_SCHEDULE selector)

Unschedules a custom selector.

See Also: schedule(SEL_SCHEDULE, float, unsigned int, float)

Parameters

selector A function wrapped as a selector

var unschedule ( var selector)

Unschedules a custom selector.

See Also: schedule(SEL_SCHEDULE, float, unsigned int, float)

Parameters

selector A function wrapped as a selector

void unscheduleAllSelectors ( void )

Unschedule all scheduled selectors: custom selectors, and the 'update' selector.

Actions are not affected by this method.

var unscheduleAllSelectors ( )

Unschedule all scheduled selectors: custom selectors, and the 'update' selector.

Actions are not affected by this method.

void unscheduleUpdate ( void )

var unscheduleUpdate ( )

local unscheduleUpdate ( )

virtual void update ( float delta)

virtual

Reimplemented from Object.

Reimplemented in ParticleSystem, ScrollView, Armature, PageView, Bone, TextField, MotionStreak, ControlStepper, Scene, Skeleton, and SkeletonAnimation.

var update ( var delta)

virtual

Reimplemented from Object.

Reimplemented in ParticleSystem, ScrollView, Armature, PageView, Bone, TextField, MotionStreak, ControlStepper, Scene, Skeleton, and SkeletonAnimation.

local update ( local delta)

virtual

Reimplemented from Object.

Reimplemented in ParticleSystem, ScrollView, Armature, PageView, Bone, TextField, MotionStreak, ControlStepper, Scene, Skeleton, and SkeletonAnimation.

virtual void updateCascadeColor ( )

protectedvirtual

var updateCascadeColor ( )

protectedvirtual

local updateCascadeColor ( )

protectedvirtual

virtual void updateCascadeOpacity ( )

protectedvirtual

var updateCascadeOpacity ( )

protectedvirtual

local updateCascadeOpacity ( )

protectedvirtual

virtual void updateColor ( void )

inlineprotectedvirtual

Reimplemented in Sprite, LayerGradient, LayerColor, ProgressTimer, and Bone.

var updateColor ( )

inlineprotectedvirtual

Reimplemented in Sprite, LayerGradient, LayerColor, ProgressTimer, and Bone.

local updateColor ( )

inlineprotectedvirtual

Reimplemented in Sprite, LayerGradient, LayerColor, ProgressTimer, and Bone.

virtual void updateDisplayedColor ( const Color3B & parentColor)

virtual

Reimplemented in __NodeRGBA, Scale9Sprite, __LayerRGBA, and Bone.

var updateDisplayedColor ( var parentColor)

virtual

Reimplemented in __NodeRGBA, Scale9Sprite, __LayerRGBA, and Bone.

local updateDisplayedColor ( local parentColor)

virtual

Reimplemented in __NodeRGBA, Scale9Sprite, __LayerRGBA, and Bone.

virtual void updateDisplayedOpacity ( GLubyte parentOpacity)

virtual

Reimplemented in __NodeRGBA, Scale9Sprite, __LayerRGBA, and Bone.

var updateDisplayedOpacity ( var parentOpacity)

virtual

Reimplemented in __NodeRGBA, Scale9Sprite, __LayerRGBA, and Bone.

local updateDisplayedOpacity ( local parentOpacity)

virtual

Reimplemented in __NodeRGBA, Scale9Sprite, __LayerRGBA, and Bone.

virtual bool updatePhysicsTransform ( )

virtual

update rotation and position from physics body

var updatePhysicsTransform ( )

virtual

update rotation and position from physics body

local updatePhysicsTransform ( )

virtual

update rotation and position from physics body

virtual void updateTransform ( )

virtual

Calls children's updateTransform() method recursively.

This method is moved from Sprite, so it's no longer specific to Sprite. As the result, you apply SpriteBatchNode's optimization on your customed Node. e.g., batchNode->addChild(myCustomNode), while you can only addChild(sprite) before.

Reimplemented in Sprite, and Skin.

var updateTransform ( )

virtual

Calls children's updateTransform() method recursively.

This method is moved from Sprite, so it's no longer specific to Sprite. As the result, you apply SpriteBatchNode's optimization on your customed Node. e.g., batchNode->addChild(myCustomNode), while you can only addChild(sprite) before.

Reimplemented in Sprite, and Skin.

local updateTransform ( )

virtual

Calls children's updateTransform() method recursively.

This method is moved from Sprite, so it's no longer specific to Sprite. As the result, you apply SpriteBatchNode's optimization on your customed Node. e.g., batchNode->addChild(myCustomNode), while you can only addChild(sprite) before.

Reimplemented in Sprite, and Skin.

virtual void visit ( )

virtual

Visits this node's children and draw them recursively.

Reimplemented in EditBox, Widget, Scale9Sprite, ScrollView, Layout, Armature, SpriteBatchNode, RenderTexture, ParticleBatchNode, ClippingNode, ParallaxNode, BatchNode, and NodeGrid.

var visit ( )

virtual

Visits this node's children and draw them recursively.

Reimplemented in EditBox, Widget, Scale9Sprite, ScrollView, Layout, Armature, SpriteBatchNode, RenderTexture, ParticleBatchNode, ClippingNode, ParallaxNode, BatchNode, and NodeGrid.

local visit ( )

virtual

Visits this node's children and draw them recursively.

Reimplemented in EditBox, Widget, Scale9Sprite, ScrollView, Layout, Armature, SpriteBatchNode, RenderTexture, ParticleBatchNode, ClippingNode, ParallaxNode, BatchNode, and NodeGrid.

virtual
CC_DEPRECATED_ATTRIBUTE
AffineTransform
worldToNodeTransform ( ) const

inlinevirtual

Deprecated:: Use worldToNodeTransform() instead

var worldToNodeTransform ( )

inlinevirtual

Deprecated:: Use worldToNodeTransform() instead

local worldToNodeTransform ( )

inlinevirtual

Deprecated:: Use worldToNodeTransform() instead

Member Data Documentation

ActionManager* _actionManager

protected

a pointer to ActionManager singleton, which is used to handle all the actions

var _actionManager

protected

a pointer to ActionManager singleton, which is used to handle all the actions

local _actionManager

protected

a pointer to ActionManager singleton, which is used to handle all the actions

kmMat4 _additionalTransform

mutableprotected

transform

var _additionalTransform

mutableprotected

transform

local _additionalTransform

mutableprotected

transform

Point _anchorPoint

protected

anchor point normalized (NOT in points)

var _anchorPoint

protected

anchor point normalized (NOT in points)

local _anchorPoint

protected

anchor point normalized (NOT in points)

Point _anchorPointInPoints

protected

anchor point in points

var _anchorPointInPoints

protected

anchor point in points

local _anchorPointInPoints

protected

anchor point in points

bool _cascadeColorEnabled

protected

var _cascadeColorEnabled

protected

local _cascadeColorEnabled

protected

bool _cascadeOpacityEnabled

protected

var _cascadeOpacityEnabled

protected

local _cascadeOpacityEnabled

protected

Vector<Node*> _children

protected

array of children nodes

var _children

protected

array of children nodes

local _children

protected

array of children nodes

ComponentContainer*
_componentContainer

protected

Dictionary of components.

var _componentContainer

protected

Dictionary of components.

local _componentContainer

protected

Dictionary of components.

Size _contentSize

protected

untransformed size of the node

var _contentSize

protected

untransformed size of the node

local _contentSize

protected

untransformed size of the node

Color3B _displayedColor

protected

var _displayedColor

protected

local _displayedColor

protected

GLubyte _displayedOpacity

protected

var _displayedOpacity

protected

local _displayedOpacity

protected

EventDispatcher* _eventDispatcher

protected

event dispatcher used to dispatch all kinds of events

var _eventDispatcher

protected

event dispatcher used to dispatch all kinds of events

local _eventDispatcher

protected

event dispatcher used to dispatch all kinds of events

float _globalZOrder

protected

Global order used to sort the node.

var _globalZOrder

protected

Global order used to sort the node.

local _globalZOrder

protected

Global order used to sort the node.

bool _ignoreAnchorPointForPosition

protected

true if the Anchor Point will be (0,0) when you position the Node, false otherwise.

Used by Layer and Scene.

var _ignoreAnchorPointForPosition

protected

true if the Anchor Point will be (0,0) when you position the Node, false otherwise.

Used by Layer and Scene.

local _ignoreAnchorPointForPosition

protected

true if the Anchor Point will be (0,0) when you position the Node, false otherwise.

Used by Layer and Scene.

kmMat4 _inverse

mutableprotected

inverse transform

var _inverse

mutableprotected

inverse transform

local _inverse

mutableprotected

inverse transform

bool _inverseDirty

mutableprotected

inverse transform dirty flag

var _inverseDirty

mutableprotected

inverse transform dirty flag

local _inverseDirty

mutableprotected

inverse transform dirty flag

bool _isTransitionFinished

protected

flag to indicate whether the transition was finished

var _isTransitionFinished

protected

flag to indicate whether the transition was finished

local _isTransitionFinished

protected

flag to indicate whether the transition was finished

int _localZOrder

protected

Local order (relative to its siblings) used to sort the node.

var _localZOrder

protected

Local order (relative to its siblings) used to sort the node.

local _localZOrder

protected

Local order (relative to its siblings) used to sort the node.

kmMat4 _modelViewTransform

protected

ModelView transform of the Node.

var _modelViewTransform

protected

ModelView transform of the Node.

local _modelViewTransform

protected

ModelView transform of the Node.

int _orderOfArrival

protected

used to preserve sequence while sorting children with the same localZOrder

var _orderOfArrival

protected

used to preserve sequence while sorting children with the same localZOrder

local _orderOfArrival

protected

used to preserve sequence while sorting children with the same localZOrder

Node* _parent

protected

weak reference to parent node

var _parent

protected

weak reference to parent node

local _parent

protected

weak reference to parent node

PhysicsBody* _physicsBody

protected

the physicsBody the node have

var _physicsBody

protected

the physicsBody the node have

local _physicsBody

protected

the physicsBody the node have

Point _position

protected

position of the node

var _position

protected

position of the node

local _position

protected

position of the node

Color3B _realColor

protected

var _realColor

protected

local _realColor

protected

GLubyte _realOpacity

protected

var _realOpacity

protected

local _realOpacity

protected

bool _reorderChildDirty

protected

children order dirty flag

var _reorderChildDirty

protected

children order dirty flag

local _reorderChildDirty

protected

children order dirty flag

float _rotationX

protected

rotation angle on x-axis

float _rotationY

protected

rotation angle on y-axis

var _rotationY

protected

rotation angle on y-axis

local _rotationY

protected

rotation angle on y-axis

bool _running

protected

is running

var _running

protected

is running

local _running

protected

is running

float _scaleX

protected

scaling factor on x-axis

var _scaleX

protected

scaling factor on x-axis

local _scaleX

protected

scaling factor on x-axis

float _scaleY

protected

scaling factor on y-axis

var _scaleY

protected

scaling factor on y-axis

local _scaleY

protected

scaling factor on y-axis

Scheduler* _scheduler

protected

scheduler used to schedule timers and updates

var _scheduler

protected

scheduler used to schedule timers and updates

local _scheduler

protected

scheduler used to schedule timers and updates

int _scriptHandler

protected

script handler for onEnter() & onExit(), used in Javascript binding and Lua binding.

var _scriptHandler

protected

script handler for onEnter() & onExit(), used in Javascript binding and Lua binding.

local _scriptHandler

protected

script handler for onEnter() & onExit(), used in Javascript binding and Lua binding.

ccScriptType _scriptType

protected

type of script binding, lua or javascript

var _scriptType

protected

type of script binding, lua or javascript

local _scriptType

protected

type of script binding, lua or javascript

GLProgram* _shaderProgram

protected

OpenGL shader.

var _shaderProgram

protected

OpenGL shader.

local _shaderProgram

protected

OpenGL shader.

float _skewX

protected

skew angle on x-axis

var _skewX

protected

skew angle on x-axis

local _skewX

protected

skew angle on x-axis

float _skewY

protected

skew angle on y-axis

var _skewY

protected

skew angle on y-axis

local _skewY

protected

skew angle on y-axis

int _tag

protected

a tag. Can be any number you assigned just to identify this node

var _tag

protected

a tag. Can be any number you assigned just to identify this node

local _tag

protected

a tag. Can be any number you assigned just to identify this node

kmMat4 _transform

mutableprotected

transform

var _transform

mutableprotected

transform

local _transform

mutableprotected

transform

bool _transformDirty

mutableprotected

transform dirty flag

var _transformDirty

mutableprotected

transform dirty flag

local _transformDirty

mutableprotected

transform dirty flag

int _updateScriptHandler

protected

script handler for update() callback per frame, which is invoked from lua & javascript.

var _updateScriptHandler

protected

script handler for update() callback per frame, which is invoked from lua & javascript.

local _updateScriptHandler

protected

script handler for update() callback per frame, which is invoked from lua & javascript.

bool _useAdditionalTransform

protected

The flag to check whether the additional transform is dirty.

var _useAdditionalTransform

protected

The flag to check whether the additional transform is dirty.

local _useAdditionalTransform

protected

The flag to check whether the additional transform is dirty.

void* _userData

protected

A user assingned void pointer, Can be point to any cpp object.

var _userData

protected

A user assingned void pointer, Can be point to any cpp object.

local _userData

protected

A user assingned void pointer, Can be point to any cpp object.

Object* _userObject

protected

A user assigned Object.

var _userObject

protected

A user assigned Object.

local _userObject

protected

A user assigned Object.

float _vertexZ

protected

OpenGL real Z vertex.

var _vertexZ

protected

OpenGL real Z vertex.

local _vertexZ

protected

OpenGL real Z vertex.

bool _visible

protected

is this node visible

var _visible

protected

is this node visible

local _visible

protected

is this node visible

const int INVALID_TAG = -1

static

Default tag used for all the nodes.

var INVALID_TAG = -1

static

Default tag used for all the nodes.

local INVALID_TAG = -1

static

Default tag used for all the nodes.

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x-develop/cocos/2d/CCNode.h

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Constructor, Destructor and Initializers

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
