#include <CCActionTiledGrid.h>

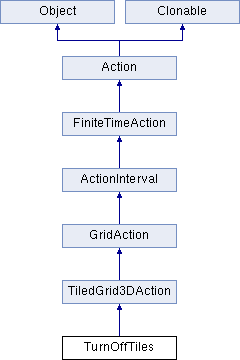

Inheritance diagram for TurnOffTiles:

Public Member Functions
void	shuffle (unsigned int *array, unsigned int len)
void	turnOnTile (const Point &pos)
void	turnOffTile (const Point &pos)
virtual TurnOffTiles *	clone () const override
	returns a clone of action More...

virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...

virtual void	update (float time) override
	called once per frame. More...

var	update ( var time)
	called once per frame. More...

local	update ( local time)
	called once per frame. More...

Public Member Functions inherited from TiledGrid3DAction
Quad3	getTile (const Point &position) const
	returns the tile that belongs to a certain position of the grid More...

CC_DEPRECATED_ATTRIBUTE Quad3	tile (const Point &position)
Quad3	getOriginalTile (const Point &position) const
	returns the non-transformed tile that belongs to a certain position of the grid More...

CC_DEPRECATED_ATTRIBUTE Quad3	originalTile (const Point &position)
void	setTile (const Point &position, const Quad3 &coords)
	sets a new tile to a certain position of the grid More...

virtual GridBase *	getGrid ()
	returns the grid More...

Public Member Functions inherited from GridAction
virtual GridAction *	reverse () const override
	returns a new action that performs the exactly the reverse action More...

var	reverse ()
	returns a new action that performs the exactly the reverse action More...

local	reverse ()
	returns a new action that performs the exactly the reverse action More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
virtual bool	isDone (void) const override
	return true if the action has finished More...

var	isDone ()
	return true if the action has finished More...

local	isDone ()
	return true if the action has finished More...

virtual void	step (float dt) override
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	get duration in seconds of the action More...

var	getDuration ()
	get duration in seconds of the action More...

local	getDuration ()
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

var	setDuration ( var duration)
	set duration in seconds of the action More...

local	setDuration ( local duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

Node *	getTarget () const
var	getTarget ()
local	getTarget ()
void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

local	setOriginalTarget ( local originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
var	getTag ()
local	getTag ()
void	setTag (int tag)
var	setTag ( var tag)
local	setTag ( local tag)
Public Member Functions inherited from Object
	Object ()
	Constructor. More...

virtual	~Object ()
void	release ()
	Release the ownership immediately. More...

void	retain ()
	Retains the ownership. More...

Object *	autorelease ()
	Release the ownership sometime soon automatically. More...

bool	isSingleReference () const
	Returns a boolean value that indicates whether there is only one reference to the object. More...

unsigned int	retainCount () const
	Returns the object's current reference count. More...

unsigned int	getReferenceCount () const
virtual bool	isEqual (const Object *object)
	Returns a boolean value that indicates whether this object and a given object are equal. More...

virtual void	acceptVisitor (DataVisitor &visitor)
Public Member Functions inherited from Clonable
virtual	~Clonable ()
Object *	copy () const
	returns a copy of the object. More...

var	copy ()
	returns a copy of the object. More...

local	copy ()
	returns a copy of the object. More...

Static Public Member Functions
static TurnOffTiles *	create (float duration, const Size &gridSize)
	creates the action with the grid size and the duration More...

var	create ( var duration, var gridSize)
	creates the action with the grid size and the duration More...

local	create ( local duration, local gridSize)
	creates the action with the grid size and the duration More...

static TurnOffTiles *	create (float duration, const Size &gridSize, unsigned int seed)
	creates the action with a random seed, the grid size and the duration More...

Static Public Member Functions inherited from TiledGrid3DAction
static TiledGrid3DAction *	create (float duration, const Size &gridSize)
	creates the action with size and duration More...

Protected Member Functions
	TurnOffTiles ()
virtual	~TurnOffTiles ()
local	~TurnOffTiles ()
bool	initWithDuration (float duration, const Size &gridSize, unsigned int seed)
	initializes the action with a random seed, the grid size and the duration More...

var	initWithDuration ( var duration, var gridSize, var seed)
	initializes the action with a random seed, the grid size and the duration More...

local	initWithDuration ( local duration, local gridSize, local seed)
	initializes the action with a random seed, the grid size and the duration More...

Protected Attributes
unsigned int	_seed
var	_seed
local	_seed
unsigned int	_tilesCount
var	_tilesCount
local	_tilesCount
unsigned int *	_tilesOrder
var	_tilesOrder
local	_tilesOrder

Additional Inherited Members
Public Attributes inherited from Object
unsigned int	_ID
	object id, ScriptSupport need public _ID More...

int	_luaID
	Lua reference id. More...

Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Detailed Description

TurnOffTiles action.

Turn off the files in random order

Constructor & Destructor Documentation

TurnOffTiles ( )

inlineprotected

var TurnOffTiles ( )

inlineprotected

local TurnOffTiles ( )

inlineprotected

virtual ~TurnOffTiles ( )

protectedvirtual

var ~TurnOffTiles ( )

protectedvirtual

local ~TurnOffTiles ( )

protectedvirtual

Member Function Documentation

virtual TurnOffTiles* clone ( ) const

overridevirtual

returns a clone of action

Implements TiledGrid3DAction.

var clone ( )

overridevirtual

returns a clone of action

Implements TiledGrid3DAction.

local clone ( )

overridevirtual

returns a clone of action

Implements TiledGrid3DAction.

static TurnOffTiles* create	(	float	duration,
		const Size &	gridSize
	)

static

creates the action with the grid size and the duration

var create	(	var	duration,
		var	gridSize
	)

static

creates the action with the grid size and the duration

local create	(	local	duration,
		local	gridSize
	)

static

creates the action with the grid size and the duration

static TurnOffTiles* create	(	float	duration,
		const Size &	gridSize,
		unsigned int	seed
	)

static

creates the action with a random seed, the grid size and the duration

var create	(	var	duration,
		var	gridSize,
		var	seed
	)

static

creates the action with a random seed, the grid size and the duration

local create	(	local	duration,
		local	gridSize,
		local	seed
	)

static

creates the action with a random seed, the grid size and the duration

bool initWithDuration	(	float	duration,
		const Size &	gridSize,
		unsigned int	seed
	)

protected

initializes the action with a random seed, the grid size and the duration

var initWithDuration	(	var	duration,
		var	gridSize,
		var	seed
	)

protected

initializes the action with a random seed, the grid size and the duration

local initWithDuration	(	local	duration,
		local	gridSize,
		local	seed
	)

protected

initializes the action with a random seed, the grid size and the duration

void shuffle	(	unsigned int *	array,
		unsigned int	len
	)

var shuffle	(	var	array,
		var	len
	)

local shuffle	(	local	array,
		local	len
	)

virtual void startWithTarget ( Node * target)

overridevirtual

called before the action start. It will also set the target.

Reimplemented from GridAction.

var startWithTarget ( var target)

overridevirtual

called before the action start. It will also set the target.

Reimplemented from GridAction.

local startWithTarget ( local target)

overridevirtual

called before the action start. It will also set the target.

Reimplemented from GridAction.

void turnOffTile ( const Point & pos)

var turnOffTile ( var pos)

local turnOffTile ( local pos)

void turnOnTile ( const Point & pos)

var turnOnTile ( var pos)

local turnOnTile ( local pos)

virtual void update ( float time)

overridevirtual

called once per frame.

time a value between 0 and 1

For example:

0 means that the action just started
0.5 means that the action is in the middle
1 means that the action is over

Reimplemented from Action.

var update ( var time)

overridevirtual

called once per frame.

time a value between 0 and 1

For example:

0 means that the action just started
0.5 means that the action is in the middle
1 means that the action is over

Reimplemented from Action.

local update ( local time)

overridevirtual

called once per frame.

time a value between 0 and 1

For example:

0 means that the action just started
0.5 means that the action is in the middle
1 means that the action is over

Reimplemented from Action.

Member Data Documentation

unsigned int _seed

protected

var _seed

protected

local _seed

protected

unsigned int _tilesCount

protected

var _tilesCount

protected

local _tilesCount

protected

unsigned int* _tilesOrder

protected

var _tilesOrder

protected

local _tilesOrder

protected

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x-develop/cocos/2d/CCActionTiledGrid.h
