#include <CCActionGrid3D.h>

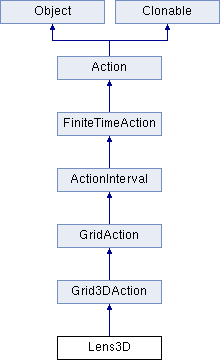

Inheritance diagram for Lens3D:

Public Member Functions
float	getLensEffect () const
	Get lens center position. More...

void	setLensEffect (float lensEffect)
	Set lens center position. More...

void	setConcave (bool concave)
	Set whether lens is concave. More...

const Point &	getPosition () const
local	getPosition ()
void	setPosition (const Point &position)
bool	initWithDuration (float duration, const Size &gridSize, const Point &position, float radius)
	initializes the action with center position, radius, a grid size and duration More...

local	initWithDuration ( local duration, local gridSize, local position, local radius)
	initializes the action with center position, radius, a grid size and duration More...

virtual Lens3D *	clone () const override
	returns a clone of action More...

virtual void	update (float time) override
	called once per frame. More...

local	update ( local time)
	called once per frame. More...

Public Member Functions inherited from Grid3DAction
virtual GridBase *	getGrid ()
	returns the grid More...

local	getGrid ()
	returns the grid More...

Vertex3F	getVertex (const Point &position) const
	returns the vertex than belongs to certain position in the grid More...

CC_DEPRECATED_ATTRIBUTE Vertex3F	vertex (const Point &position)
Vertex3F	getOriginalVertex (const Point &position) const
	returns the non-transformed vertex than belongs to certain position in the grid More...

CC_DEPRECATED_ATTRIBUTE Vertex3F	originalVertex (const Point &position)
void	setVertex (const Point &position, const Vertex3F &vertex)
	sets a new vertex to a certain position of the grid More...

Public Member Functions inherited from GridAction
bool	initWithDuration (float duration, const Size &gridSize)
	initializes the action with size and duration More...

var	initWithDuration ( var duration, var gridSize)
	initializes the action with size and duration More...

local	initWithDuration ( local duration, local gridSize)
	initializes the action with size and duration More...

virtual GridAction *	reverse () const override
	returns a new action that performs the exactly the reverse action More...

var	reverse ()
	returns a new action that performs the exactly the reverse action More...

local	reverse ()
	returns a new action that performs the exactly the reverse action More...

virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...

var	startWithTarget ( var target)
	called before the action start. It will also set the target. More...

local	startWithTarget ( local target)
	called before the action start. It will also set the target. More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...

bool	initWithDuration (float d)
	initializes the action More...

var	initWithDuration ( var d)
	initializes the action More...

local	initWithDuration ( local d)
	initializes the action More...

void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
virtual bool	isDone (void) const override
	return true if the action has finished More...

var	isDone ()
	return true if the action has finished More...

local	isDone ()
	return true if the action has finished More...

virtual void	step (float dt) override
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

Public Member Functions inherited from FiniteTimeAction
	FiniteTimeAction ()
virtual	~FiniteTimeAction ()
float	getDuration () const
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
	Action ()
virtual	~Action ()
const char *	description () const
virtual void	stop ()
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

Node *	getTarget () const
var	getTarget ()
local	getTarget ()
void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

local	setOriginalTarget ( local originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
var	getTag ()
local	getTag ()
void	setTag (int tag)
var	setTag ( var tag)
local	setTag ( local tag)
Public Member Functions inherited from Object
	Object ()
	Constructor. More...

virtual	~Object ()
void	release ()
	Release the ownership immediately. More...

void	retain ()
	Retains the ownership. More...

Object *	autorelease ()
	Release the ownership sometime soon automatically. More...

bool	isSingleReference () const
	Returns a boolean value that indicates whether there is only one reference to the object. More...

unsigned int	retainCount () const
	Returns the object's current reference count. More...

virtual bool	isEqual (const Object *object)
	Returns a boolean value that indicates whether this object and a given object are equal. More...

virtual void	acceptVisitor (DataVisitor &visitor)
Public Member Functions inherited from Clonable
virtual	~Clonable ()
Object *	copy () const
	returns a copy of the object. More...

var	copy ()
	returns a copy of the object. More...

local	copy ()
	returns a copy of the object. More...

Static Public Member Functions
static Lens3D *	create (float duration, const Size &gridSize, const Point &position, float radius)
	creates the action with center position, radius, a grid size and duration More...

Protected Attributes
Point	_position
float	_radius
local	_radius
float	_lensEffect
	lens effect. More...

local	_lensEffect
	lens effect. More...

bool	_concave
	lens is concave. More...

bool	_dirty

Additional Inherited Members
Public Attributes inherited from Object
unsigned int	_ID
	object id, ScriptSupport need public _ID More...

int	_luaID
	Lua reference id. More...

Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Detailed Description

Lens3D action.

Member Function Documentation

virtual Lens3D* clone ( ) const

overridevirtual

returns a clone of action

Implements Grid3DAction.

local clone ( )

overridevirtual

returns a clone of action

Implements Grid3DAction.

static Lens3D* create	(	float	duration,
		const Size &	gridSize,
		const Point &	position,
		float	radius
	)

static

creates the action with center position, radius, a grid size and duration

local create	(	local	duration,
		local	gridSize,
		local	position,
		local	radius
	)

static

creates the action with center position, radius, a grid size and duration

float getLensEffect ( ) const

inline

Get lens center position.

local getLensEffect ( )

inline

Get lens center position.

const Point& getPosition ( ) const

inline

local getPosition ( )

inline

bool initWithDuration	(	float	duration,
		const Size &	gridSize,
		const Point &	position,
		float	radius
	)

initializes the action with center position, radius, a grid size and duration

local initWithDuration	(	local	duration,
		local	gridSize,
		local	position,
		local	radius
	)

initializes the action with center position, radius, a grid size and duration

void setConcave ( bool concave)

inline

Set whether lens is concave.

local setConcave ( local concave)

inline

Set whether lens is concave.

void setLensEffect ( float lensEffect)

inline

Set lens center position.

local setLensEffect ( local lensEffect)

inline

Set lens center position.

void setPosition ( const Point & position)

local setPosition ( local position)

virtual void update ( float time)

overridevirtual

called once per frame.

time a value between 0 and 1

For example:

0 means that the action just started
0.5 means that the action is in the middle
1 means that the action is over

Reimplemented from Action.

local update ( local time)

overridevirtual

called once per frame.

time a value between 0 and 1

For example:

0 means that the action just started
0.5 means that the action is in the middle
1 means that the action is over

Reimplemented from Action.

Member Data Documentation

bool _concave

protected

lens is concave.

(true = concave, false = convex) default is convex i.e. false

local _concave

protected

lens is concave.

(true = concave, false = convex) default is convex i.e. false

bool _dirty

protected

local _dirty

protected

float _lensEffect

protected

lens effect.

Defaults to 0.7 - 0 means no effect, 1 is very strong effect

local _lensEffect

protected

lens effect.

Defaults to 0.7 - 0 means no effect, 1 is very strong effect

Point _position

protected

local _position

protected

float _radius

protected

local _radius

protected

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x-develop/cocos/2d/CCActionGrid3D.h
