Class for edit box. More...

#include <CCEditBox.h>

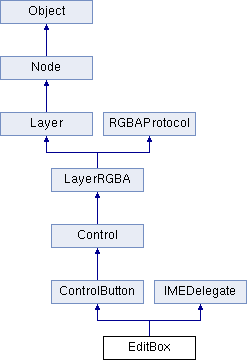

Inheritance diagram for EditBox:

Public Types
enum	KeyboardReturnType { DEFAULT, DONE, SEND, SEARCH, GO }

enum	InputMode { ANY, EMAIL_ADDRESS, NUMERIC, PHONE_NUMBER, URL, DECIMAL, SINGLE_LINE }
	The EditBox::InputMode defines the type of text that the user is allowed to enter. More...

enum	InputFlag { PASSWORD, SENSITIVE, INITIAL_CAPS_WORD, INITIAL_CAPS_SENTENCE, INTIAL_CAPS_ALL_CHARACTERS }
	The EditBox::InputFlag defines how the input text is displayed/formatted. More...

Public Member Functions
	EditBox (void)
	Constructor. More...

virtual	~EditBox (void)
	Destructor. More...

bool	initWithSizeAndBackgroundSprite (const Size &size, Scale9Sprite *pNormal9SpriteBg)
	Init edit box with specified size. More...

void	setDelegate (EditBoxDelegate *pDelegate)
	Gets/Sets the delegate for edit box. More...

EditBoxDelegate *	getDelegate ()
void	registerScriptEditBoxHandler (int handler)
	Registers a script function that will be called for EditBox events. More...

void	unregisterScriptEditBoxHandler (void)
	Unregisters a script function that will be called for EditBox events. More...

int	getScriptEditBoxHandler (void)
	get a script Handler More...

void	setText (const char *pText)
	Set the text entered in the edit box. More...

const char *	getText (void)
	Get the text entered in the edit box. More...

void	setFont (const char *pFontName, int fontSize)
	Set the font. More...

void	setFontName (const char *pFontName)
	Set the font name. More...

void	setFontSize (int fontSize)
	Set the font size. More...

void	setFontColor (const Color3B &color)
	Set the font color of the widget's text. More...

void	setPlaceholderFont (const char *pFontName, int fontSize)
	Set the placeholder's font. More...

void	setPlaceholderFontName (const char *pFontName)
	Set the placeholder's font name. More...

void	setPlaceholderFontSize (int fontSize)
	Set the placeholder's font size. More...

void	setPlaceholderFontColor (const Color3B &color)
	Set the font color of the placeholder text when the edit box is empty. More...

void	setPlaceHolder (const char *pText)
	Set a text in the edit box that acts as a placeholder when an edit box is empty. More...

const char *	getPlaceHolder (void)
	Get a text in the edit box that acts as a placeholder when an edit box is empty. More...

void	setInputMode (InputMode inputMode)
	Set the input mode of the edit box. More...

void	setMaxLength (int maxLength)
	Sets the maximum input length of the edit box. More...

int	getMaxLength ()
	Gets the maximum input length of the edit box. More...

void	setInputFlag (InputFlag inputFlag)
	Set the input flags that are to be applied to the edit box. More...

void	setReturnType (EditBox::KeyboardReturnType returnType)
	Set the return type that are to be applied to the edit box. More...

virtual void	setPosition (const Point &pos)
	Changes the position (x,y) of the node in OpenGL coordinates. More...

virtual void	setVisible (bool visible)
	Sets whether the node is visible. More...

virtual void	setContentSize (const Size &size)
	Sets the untransformed size of the node. More...

virtual void	setAnchorPoint (const Point &anchorPoint)
	Sets the anchor point in percent. More...

virtual void	visit (void)
	Visits this node's children and draw them recursively. More...

virtual void	onEnter (void)
	Event callback that is invoked every time when Node enters the 'stage'. More...

virtual void	onExit (void)
	Event callback that is invoked every time the Node leaves the 'stage'. More...

virtual void	keyboardWillShow (IMEKeyboardNotificationInfo &info)
virtual void	keyboardDidShow (IMEKeyboardNotificationInfo &info)
virtual void	keyboardWillHide (IMEKeyboardNotificationInfo &info)
virtual void	keyboardDidHide (IMEKeyboardNotificationInfo &info)
void	touchDownAction (Object *sender, Control::EventType controlEvent)
Public Member Functions inherited from ControlButton
	ControlButton ()
virtual	~ControlButton ()
virtual bool	init ()
	Initializes the instance of Node. More...

virtual bool	initWithLabelAndBackgroundSprite (Node label, Scale9Sprite backgroundSprite)
virtual bool	initWithBackgroundSprite (Scale9Sprite *sprite)
var	initWithBackgroundSprite ( var sprite)
local	initWithBackgroundSprite ( local sprite)
virtual bool	initWithTitleAndFontNameAndFontSize (std::string title, const char *fontName, float fontSize)
var	initWithTitleAndFontNameAndFontSize ( var title, var fontName, var fontSize)
local	initWithTitleAndFontNameAndFontSize ( local title, local fontName, local fontSize)
virtual void	needsLayout (void)
	Updates the control layout using its current internal state. More...

var	needsLayout ()
	Updates the control layout using its current internal state. More...

local	needsLayout ()
	Updates the control layout using its current internal state. More...

virtual void	setEnabled (bool enabled)
	Tells whether the control is enabled. More...

var	setEnabled ( var enabled)
	Tells whether the control is enabled. More...

local	setEnabled ( local enabled)
	Tells whether the control is enabled. More...

virtual void	setSelected (bool enabled)
	A Boolean value that determines the control selected state. More...

var	setSelected ( var enabled)
	A Boolean value that determines the control selected state. More...

local	setSelected ( local enabled)
	A Boolean value that determines the control selected state. More...

virtual void	setHighlighted (bool enabled)
	A Boolean value that determines whether the control is highlighted. More...

var	setHighlighted ( var enabled)
	A Boolean value that determines whether the control is highlighted. More...

local	setHighlighted ( local enabled)
	A Boolean value that determines whether the control is highlighted. More...

bool	isPushed () const
virtual String *	getTitleForState (State state)
	Returns the title used for a state. More...

var	getTitleForState ( var state)
	Returns the title used for a state. More...

local	getTitleForState ( local state)
	Returns the title used for a state. More...

virtual void	setTitleForState (String *title, State state)
	Sets the title string to use for the specified state. More...

var	setTitleForState ( var title, var state)
	Sets the title string to use for the specified state. More...

local	setTitleForState ( local title, local state)
	Sets the title string to use for the specified state. More...

virtual Color3B	getTitleColorForState (State state) const
	Returns the title color used for a state. More...

local	getTitleColorForState ( local state)
	Returns the title color used for a state. More...

virtual void	setTitleColorForState (Color3B color, State state)
	Sets the color of the title to use for the specified state. More...

virtual Node *	getTitleLabelForState (State state)
	Returns the title label used for a state. More...

virtual void	setTitleLabelForState (Node *label, State state)
	Sets the title label to use for the specified state. More...

virtual void	setTitleTTFForState (const char *fntFile, State state)
virtual const char *	getTitleTTFForState (State state)
local	getTitleTTFForState ( local state)
virtual void	setTitleTTFSizeForState (float size, State state)
virtual float	getTitleTTFSizeForState (State state)
virtual void	setTitleBMFontForState (const char *fntFile, State state)
	Sets the font of the label, changes the label to a LabelBMFont if neccessary. More...

local	setTitleBMFontForState ( local fntFile, local state)
	Sets the font of the label, changes the label to a LabelBMFont if neccessary. More...

virtual const char *	getTitleBMFontForState (State state)
virtual Scale9Sprite *	getBackgroundSpriteForState (State state)
	Returns the background sprite used for a state. More...

virtual void	setBackgroundSpriteForState (Scale9Sprite *sprite, State state)
	Sets the background sprite to use for the specified button state. More...

var	setBackgroundSpriteForState ( var sprite, var state)
	Sets the background sprite to use for the specified button state. More...

local	setBackgroundSpriteForState ( local sprite, local state)
	Sets the background sprite to use for the specified button state. More...

virtual void	setBackgroundSpriteFrameForState (SpriteFrame *spriteFrame, State state)
	Sets the background spriteFrame to use for the specified button state. More...

var	setBackgroundSpriteFrameForState ( var spriteFrame, var state)
	Sets the background spriteFrame to use for the specified button state. More...

local	setBackgroundSpriteFrameForState ( local spriteFrame, local state)
	Sets the background spriteFrame to use for the specified button state. More...

virtual void	setMargins (int marginH, int marginV)
virtual bool	onTouchBegan (Touch touch, Event event) override
var	onTouchBegan ( var touch, var event)
local	onTouchBegan ( local touch, local event)
virtual void	onTouchMoved (Touch touch, Event event) override
var	onTouchMoved ( var touch, var event)
local	onTouchMoved ( local touch, local event)
virtual void	onTouchEnded (Touch touch, Event event) override
var	onTouchEnded ( var touch, var event)
local	onTouchEnded ( local touch, local event)
virtual void	onTouchCancelled (Touch touch, Event event) override
virtual GLubyte	getOpacity (void) const override
	Returns the opacity. More...

virtual void	setOpacity (GLubyte var) override
	Changes the opacity. More...

var	setOpacity ( var var)
	Changes the opacity. More...

local	setOpacity ( local var)
	Changes the opacity. More...

virtual const Color3B &	getColor (void) const override
	Returns color that is currently used. More...

var	getColor ()
	Returns color that is currently used. More...

local	getColor ()
	Returns color that is currently used. More...

virtual void	setColor (const Color3B &) override
	Changes the color with R,G,B bytes. More...

var	setColor ()
	Changes the color with R,G,B bytes. More...

local	setColor ()
	Changes the color with R,G,B bytes. More...

bool	doesAdjustBackgroundImage ()
	Adjust the background image. More...

void	setAdjustBackgroundImage (bool adjustBackgroundImage)
virtual String *	getCurrentTitle (void)
	getCurrentTitle More...

var	getCurrentTitle ()
	getCurrentTitle More...

local	getCurrentTitle ()
	getCurrentTitle More...

virtual const Color3B &	getCurrentTitleColor (void)
	getCurrentTitleColor More...

local	getCurrentTitleColor ()
	getCurrentTitleColor More...

virtual Node *	getTitleLabel (void)
	getTitleLabel More...

var	getTitleLabel ()
	getTitleLabel More...

local	getTitleLabel ()
	getTitleLabel More...

virtual void	setTitleLabel (Node *var)
	setTitleLabel More...

var	setTitleLabel ( var var)
	setTitleLabel More...

local	setTitleLabel ( local var)
	setTitleLabel More...

virtual Scale9Sprite *	getBackgroundSprite (void)
	getBackgroundSprite More...

var	getBackgroundSprite ()
	getBackgroundSprite More...

local	getBackgroundSprite ()
	getBackgroundSprite More...

virtual void	setBackgroundSprite (Scale9Sprite *var)
	setBackgroundSprite More...

local	setBackgroundSprite ( local var)
	setBackgroundSprite More...

virtual Size	getPreferredSize (void)
	getPreferredSize More...

virtual void	setPreferredSize (Size var)
	setPreferredSize More...

virtual bool	getZoomOnTouchDown (void)
	getZoomOnTouchDown More...

var	getZoomOnTouchDown ()
	getZoomOnTouchDown More...

local	getZoomOnTouchDown ()
	getZoomOnTouchDown More...

virtual void	setZoomOnTouchDown (bool var)
	setZoomOnTouchDown More...

var	setZoomOnTouchDown ( var var)
	setZoomOnTouchDown More...

local	setZoomOnTouchDown ( local var)
	setZoomOnTouchDown More...

virtual Point	getLabelAnchorPoint (void)
	getLabelAnchorPoint More...

var	getLabelAnchorPoint ()
	getLabelAnchorPoint More...

local	getLabelAnchorPoint ()
	getLabelAnchorPoint More...

virtual void	setLabelAnchorPoint (Point var)
	setLabelAnchorPoint More...

virtual Dictionary *	getTitleDispatchTable (void)
	getTitleDispatchTable More...

virtual void	setTitleDispatchTable (Dictionary *var)
	setTitleDispatchTable More...

virtual Dictionary *	getTitleColorDispatchTable (void)
	getTitleColorDispatchTable More...

virtual void	setTitleColorDispatchTable (Dictionary *var)
	setTitleColorDispatchTable More...

virtual Dictionary *	getTitleLabelDispatchTable (void)
	getTitleLabelDispatchTable More...

virtual void	setTitleLabelDispatchTable (Dictionary *var)
	setTitleLabelDispatchTable More...

virtual Dictionary *	getBackgroundSpriteDispatchTable (void)
	getBackgroundSpriteDispatchTable More...

var	getBackgroundSpriteDispatchTable ()
	getBackgroundSpriteDispatchTable More...

local	getBackgroundSpriteDispatchTable ()
	getBackgroundSpriteDispatchTable More...

virtual void	setBackgroundSpriteDispatchTable (Dictionary *var)
	setBackgroundSpriteDispatchTable More...

virtual int	getVerticalMargin (void)
	getVerticalMargin More...

virtual int	getHorizontalOrigin (void)
	getHorizontalOrigin More...

Public Member Functions inherited from Control
	Control ()
virtual	~Control ()
virtual bool	isEnabled () const
virtual bool	isSelected () const
virtual bool	isHighlighted () const
bool	hasVisibleParents () const
var	hasVisibleParents ()
local	hasVisibleParents ()
virtual void	sendActionsForControlEvents (EventType controlEvents)
	Sends action messages for the given control events. More...

local	sendActionsForControlEvents ( local controlEvents)
	Sends action messages for the given control events. More...

virtual void	addTargetWithActionForControlEvents (Object *target, Handler action, EventType controlEvents)
	Adds a target and action for a particular event (or events) to an internal dispatch table. More...

local	addTargetWithActionForControlEvents ( local target, local action, local controlEvents)
	Adds a target and action for a particular event (or events) to an internal dispatch table. More...

virtual void	removeTargetWithActionForControlEvents (Object *target, Handler action, EventType controlEvents)
	Removes a target and action for a particular event (or events) from an internal dispatch table. More...

virtual Point	getTouchLocation (Touch *touch)
	Returns a point corresponding to the touh location converted into the control space coordinates. More...

virtual bool	isTouchInside (Touch *touch)
	Returns a boolean value that indicates whether a touch is inside the bounds of the receiver. More...

virtual bool	isOpacityModifyRGB () const override
	Returns whether or not the opacity will be applied using glColor(R,G,B,opacity) or glColor(opacity, opacity, opacity, opacity) More...

virtual void	setOpacityModifyRGB (bool bOpacityModifyRGB) override
	Changes the OpacityModifyRGB property. More...

var	setOpacityModifyRGB ( var bOpacityModifyRGB)
	Changes the OpacityModifyRGB property. More...

local	setOpacityModifyRGB ( local bOpacityModifyRGB)
	Changes the OpacityModifyRGB property. More...

virtual State	getState (void)
	getState More...

Public Member Functions inherited from LayerRGBA
	CREATE_FUNC (LayerRGBA)
	LayerRGBA ()
virtual	~LayerRGBA ()
virtual GLubyte	getDisplayedOpacity () const override
	Returns the displayed opacity. More...

virtual void	updateDisplayedOpacity (GLubyte parentOpacity) override
	recursive method that updates the displayed opacity. More...

virtual bool	isCascadeOpacityEnabled () const override
	whether or not opacity should be propagated to its children. More...

virtual void	setCascadeOpacityEnabled (bool cascadeOpacityEnabled) override
virtual const Color3B &	getDisplayedColor () const override
	Returns the displayed color. More...

virtual void	updateDisplayedColor (const Color3B &parentColor) override
	recursive method that updates display color More...

virtual bool	isCascadeColorEnabled () const override
	whether or not color should be propagated to its children. More...

virtual void	setCascadeColorEnabled (bool cascadeColorEnabled) override
Public Member Functions inherited from Layer
	Layer ()
virtual	~Layer ()
virtual CC_DEPRECATED_ATTRIBUTE bool	ccTouchBegan (Touch pTouch, Event pEvent) final
local	ccTouchBegan ( local pTouch, local pEvent)
virtual CC_DEPRECATED_ATTRIBUTE void	ccTouchMoved (Touch pTouch, Event pEvent) final
local	ccTouchMoved ( local pTouch, local pEvent)
virtual CC_DEPRECATED_ATTRIBUTE void	ccTouchEnded (Touch pTouch, Event pEvent) final
local	ccTouchEnded ( local pTouch, local pEvent)
virtual CC_DEPRECATED_ATTRIBUTE void	ccTouchCancelled (Touch pTouch, Event pEvent) final
local	ccTouchCancelled ( local pTouch, local pEvent)
virtual CC_DEPRECATED_ATTRIBUTE void	ccTouchesBegan (Set pTouches, Event pEvent) final
local	ccTouchesBegan ( local pTouches, local pEvent)
virtual CC_DEPRECATED_ATTRIBUTE void	ccTouchesMoved (Set pTouches, Event pEvent) final
local	ccTouchesMoved ( local pTouches, local pEvent)
virtual CC_DEPRECATED_ATTRIBUTE void	ccTouchesEnded (Set pTouches, Event pEvent) final
local	ccTouchesEnded ( local pTouches, local pEvent)
virtual CC_DEPRECATED_ATTRIBUTE void	ccTouchesCancelled (Set pTouches, Event pEvent) final
local	ccTouchesCancelled ( local pTouches, local pEvent)
virtual void	onTouchesBegan (const std::vector< Touch * > &touches, Event *unused_event)
virtual void	onTouchesMoved (const std::vector< Touch * > &touches, Event *unused_event)
local	onTouchesMoved ( local touches, local unused_event)
virtual void	onTouchesEnded (const std::vector< Touch * > &touches, Event *unused_event)
local	onTouchesEnded ( local touches, local unused_event)
virtual void	onTouchesCancelled (const std::vector< Touch * > &touches, Event *unused_event)
virtual CC_DEPRECATED_ATTRIBUTE void	didAccelerate (Acceleration *accelerationValue) final
local	didAccelerate ( local accelerationValue)
virtual void	onAcceleration (Acceleration acc, Event unused_event)
var	onAcceleration ( var acc, var unused_event)
local	onAcceleration ( local acc, local unused_event)
virtual CC_DEPRECATED_ATTRIBUTE void	registerWithTouchDispatcher () final
	If isTouchEnabled, this method is called onEnter. More...

var	registerWithTouchDispatcher ()
	If isTouchEnabled, this method is called onEnter. More...

local	registerWithTouchDispatcher ()
	If isTouchEnabled, this method is called onEnter. More...

CC_DEPRECATED_ATTRIBUTE bool	isTouchEnabled () const
	whether or not it will receive Touch events. More...

local	isTouchEnabled ()
	whether or not it will receive Touch events. More...

CC_DEPRECATED_ATTRIBUTE void	setTouchEnabled (bool value)
virtual CC_DEPRECATED_ATTRIBUTE void	setTouchMode (Touch::DispatchMode mode)
local	setTouchMode ( local mode)
virtual CC_DEPRECATED_ATTRIBUTE Touch::DispatchMode	getTouchMode () const
var	getTouchMode ()
local	getTouchMode ()
virtual CC_DEPRECATED_ATTRIBUTE void	setSwallowsTouches (bool swallowsTouches)
	swallowsTouches of the touch events. More...

local	setSwallowsTouches ( local swallowsTouches)
	swallowsTouches of the touch events. More...

virtual CC_DEPRECATED_ATTRIBUTE bool	isSwallowsTouches () const
local	isSwallowsTouches ()
virtual CC_DEPRECATED_ATTRIBUTE bool	isAccelerometerEnabled () const
	whether or not it will receive Accelerometer events You can enable / disable accelerometer events with this property. More...

local	isAccelerometerEnabled ()
	whether or not it will receive Accelerometer events You can enable / disable accelerometer events with this property. More...

virtual CC_DEPRECATED_ATTRIBUTE void	setAccelerometerEnabled (bool value)
local	setAccelerometerEnabled ( local value)
virtual CC_DEPRECATED_ATTRIBUTE void	setAccelerometerInterval (double interval)
local	setAccelerometerInterval ( local interval)
virtual CC_DEPRECATED_ATTRIBUTE bool	isKeyboardEnabled () const
	whether or not it will receive keyboard or keypad events You can enable / disable accelerometer events with this property. More...

var	isKeyboardEnabled ()
	whether or not it will receive keyboard or keypad events You can enable / disable accelerometer events with this property. More...

local	isKeyboardEnabled ()
	whether or not it will receive keyboard or keypad events You can enable / disable accelerometer events with this property. More...

virtual CC_DEPRECATED_ATTRIBUTE void	setKeyboardEnabled (bool value)
var	setKeyboardEnabled ( var value)
local	setKeyboardEnabled ( local value)
virtual CC_DEPRECATED_ATTRIBUTE void	keyPressed (int keyCode) final
	Please use onKeyPressed instead. More...

local	keyPressed ( local keyCode)
	Please use onKeyPressed instead. More...

virtual CC_DEPRECATED_ATTRIBUTE void	keyReleased (int keyCode) final
	Please use onKeyReleased instead. More...

local	keyReleased ( local keyCode)
	Please use onKeyReleased instead. More...

virtual void	onKeyPressed (EventKeyboard::KeyCode keyCode, Event *event)
var	onKeyPressed ( var keyCode, var event)
local	onKeyPressed ( local keyCode, local event)
virtual void	onKeyReleased (EventKeyboard::KeyCode keyCode, Event *event)
local	onKeyReleased ( local keyCode, local event)
virtual CC_DEPRECATED_ATTRIBUTE bool	isKeypadEnabled () const final
local	isKeypadEnabled ()
virtual CC_DEPRECATED_ATTRIBUTE void	setKeypadEnabled (bool value)
local	setKeypadEnabled ( local value)
virtual CC_DEPRECATED_ATTRIBUTE void	keyBackClicked () final
local	keyBackClicked ()
virtual CC_DEPRECATED_ATTRIBUTE void	keyMenuClicked () final
local	keyMenuClicked ()
Public Member Functions inherited from Node
virtual Camera *	getCamera ()
	Returns a camera object that lets you move the node using a gluLookAt. More...

local	getCamera ()
	Returns a camera object that lets you move the node using a gluLookAt. More...

virtual bool	isRunning () const
	Returns whether or not the node accepts event callbacks. More...

local	isRunning ()
	Returns whether or not the node accepts event callbacks. More...

void	scheduleUpdateWithPriorityLua (int handler, int priority)
	Schedules for lua script. More...

local	scheduleUpdateWithPriorityLua ( local handler, local priority)
	Schedules for lua script. More...

virtual void	cleanup ()
	Stops all running actions and schedulers. More...

var	cleanup ()
	Stops all running actions and schedulers. More...

local	cleanup ()
	Stops all running actions and schedulers. More...

virtual void	draw ()
	Override this method to draw your own node. More...

local	draw ()
	Override this method to draw your own node. More...

virtual Rect	getBoundingBox () const
	Returns a "local" axis aligned bounding box of the node. More...

virtual CC_DEPRECATED_ATTRIBUTE Rect	boundingBox () const
local	boundingBox ()
virtual void	setEventDispatcher (EventDispatcher *dispatcher)
virtual EventDispatcher *	getEventDispatcher () const
local	getEventDispatcher ()
virtual void	setZOrder (int zOrder)
	Sets the Z order which stands for the drawing order, and reorder this node in its parent's children array. More...

virtual void	_setZOrder (int z)
var	_setZOrder ( var z)
local	_setZOrder ( local z)
virtual int	getZOrder () const
	Gets the Z order of this node. More...

var	getZOrder ()
	Gets the Z order of this node. More...

local	getZOrder ()
	Gets the Z order of this node. More...

virtual void	setVertexZ (float vertexZ)
	Sets the real OpenGL Z vertex. More...

local	setVertexZ ( local vertexZ)
	Sets the real OpenGL Z vertex. More...

virtual float	getVertexZ () const
	Gets OpenGL Z vertex of this node. More...

var	getVertexZ ()
	Gets OpenGL Z vertex of this node. More...

local	getVertexZ ()
	Gets OpenGL Z vertex of this node. More...

virtual void	setScaleX (float scaleX)
	Changes the scale factor on X axis of this node. More...

virtual float	getScaleX () const
	Returns the scale factor on X axis of this node. More...

var	getScaleX ()
	Returns the scale factor on X axis of this node. More...

local	getScaleX ()
	Returns the scale factor on X axis of this node. More...

virtual void	setScaleY (float scaleY)
	Changes the scale factor on Y axis of this node. More...

local	setScaleY ( local scaleY)
	Changes the scale factor on Y axis of this node. More...

virtual float	getScaleY () const
	Returns the scale factor on Y axis of this node. More...

virtual void	setScale (float scale)
	Changes both X and Y scale factor of the node. More...

local	setScale ( local scale)
	Changes both X and Y scale factor of the node. More...

virtual float	getScale () const
	Gets the scale factor of the node, when X and Y have the same scale factor. More...

virtual void	setScale (float scaleX, float scaleY)
	Changes both X and Y scale factor of the node. More...

local	setScale ( local scaleX, local scaleY)
	Changes both X and Y scale factor of the node. More...

virtual const Point &	getPosition () const
	Gets the position (x,y) of the node in OpenGL coordinates. More...

virtual void	setPosition (float x, float y)
	Sets position in a more efficient way. More...

local	setPosition ( local x, local y)
	Sets position in a more efficient way. More...

virtual void	getPosition (float x, float y) const
	Gets position in a more efficient way, returns two number instead of a Point object. More...

var	getPosition ( var x, var y)
	Gets position in a more efficient way, returns two number instead of a Point object. More...

local	getPosition ( local x, local y)
	Gets position in a more efficient way, returns two number instead of a Point object. More...

virtual void	setPositionX (float x)
	Gets/Sets x or y coordinate individually for position. More...

virtual float	getPositionX (void) const
virtual void	setPositionY (float y)
local	setPositionY ( local y)
virtual float	getPositionY (void) const
local	getPositionY ()
virtual void	setSkewX (float fSkewX)
	Changes the X skew angle of the node in degrees. More...

local	setSkewX ( local fSkewX)
	Changes the X skew angle of the node in degrees. More...

virtual float	getSkewX () const
	Returns the X skew angle of the node in degrees. More...

virtual void	setSkewY (float fSkewY)
	Changes the Y skew angle of the node in degrees. More...

local	setSkewY ( local fSkewY)
	Changes the Y skew angle of the node in degrees. More...

virtual float	getSkewY () const
	Returns the Y skew angle of the node in degrees. More...

virtual const Point &	getAnchorPoint () const
	Returns the anchor point in percent. More...

virtual const Point &	getAnchorPointInPoints () const
	Returns the anchorPoint in absolute pixels. More...

virtual const Size &	getContentSize () const
	Returns the untransformed size of the node. More...

local	getContentSize ()
	Returns the untransformed size of the node. More...

virtual bool	isVisible () const
	Determines if the node is visible. More...

virtual void	setRotation (float rotation)
	Sets the rotation (angle) of the node in degrees. More...

local	setRotation ( local rotation)
	Sets the rotation (angle) of the node in degrees. More...

virtual float	getRotation () const
	Returns the rotation of the node in degrees. More...

virtual void	setRotationX (float rotationX)
	Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew. More...

local	setRotationX ( local rotationX)
	Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew. More...

virtual float	getRotationX () const
	Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...

virtual void	setRotationY (float rotationY)
	Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

var	setRotationY ( var rotationY)
	Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

local	setRotationY ( local rotationY)
	Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

virtual float	getRotationY () const
	Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

virtual void	setOrderOfArrival (int orderOfArrival)
	Sets the arrival order when this node has a same ZOrder with other children. More...

local	setOrderOfArrival ( local orderOfArrival)
	Sets the arrival order when this node has a same ZOrder with other children. More...

virtual int	getOrderOfArrival () const
	Returns the arrival order, indecates which children is added previously. More...

local	getOrderOfArrival ()
	Returns the arrival order, indecates which children is added previously. More...

CC_DEPRECATED_ATTRIBUTE void	setGLServerState (int serverState)
CC_DEPRECATED_ATTRIBUTE int	getGLServerState () const
virtual void	ignoreAnchorPointForPosition (bool ignore)
	Sets whether the anchor point will be (0,0) when you position this node. More...

virtual bool	isIgnoreAnchorPointForPosition () const
	Gets whether the anchor point will be (0,0) when you position this node. More...

virtual void	addChild (Node *child)
	Adds a child to the container with z-order as 0. More...

var	addChild ( var child)
	Adds a child to the container with z-order as 0. More...

local	addChild ( local child)
	Adds a child to the container with z-order as 0. More...

virtual void	addChild (Node *child, int zOrder)
	Adds a child to the container with a z-order. More...

var	addChild ( var child, var zOrder)
	Adds a child to the container with a z-order. More...

local	addChild ( local child, local zOrder)
	Adds a child to the container with a z-order. More...

virtual void	addChild (Node *child, int zOrder, int tag)
	Adds a child to the container with z order and tag. More...

var	addChild ( var child, var zOrder, var tag)
	Adds a child to the container with z order and tag. More...

local	addChild ( local child, local zOrder, local tag)
	Adds a child to the container with z order and tag. More...

Node *	getChildByTag (int tag)
	Gets a child from the container with its tag. More...

var	getChildByTag ( var tag)
	Gets a child from the container with its tag. More...

local	getChildByTag ( local tag)
	Gets a child from the container with its tag. More...

virtual Array *	getChildren ()
	Return an array of children. More...

virtual const Array *	getChildren () const
var	getChildren ()
local	getChildren ()
long	getChildrenCount () const
	Get the amount of children. More...

var	getChildrenCount ()
	Get the amount of children. More...

local	getChildrenCount ()
	Get the amount of children. More...

virtual void	setParent (Node *parent)
	Sets the parent node. More...

local	setParent ( local parent)
	Sets the parent node. More...

virtual Node *	getParent ()
	Returns a pointer to the parent node. More...

virtual const Node *	getParent () const
virtual void	removeFromParent ()
	Removes this node itself from its parent node with a cleanup. More...

virtual void	removeFromParentAndCleanup (bool cleanup)
	Removes this node itself from its parent node. More...

local	removeFromParent ( local cleanup)
	Removes this node itself from its parent node. More...

virtual void	removeChild (Node *child, bool cleanup=true)
	Removes a child from the container. More...

var	removeChild ( var child, var true)
	Removes a child from the container. More...

local	removeChild ( local child, local true)
	Removes a child from the container. More...

virtual void	removeChildByTag (int tag, bool cleanup=true)
	Removes a child from the container by tag value. More...

local	removeChildByTag ( local tag, local true)
	Removes a child from the container by tag value. More...

virtual void	removeAllChildren ()
	Removes all children from the container with a cleanup. More...

virtual void	removeAllChildrenWithCleanup (bool cleanup)
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...

var	removeAllChildren ( var cleanup)
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...

local	removeAllChildren ( local cleanup)
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...

virtual void	reorderChild (Node *child, int zOrder)
	Reorders a child according to a new z value. More...

var	reorderChild ( var child, var zOrder)
	Reorders a child according to a new z value. More...

local	reorderChild ( local child, local zOrder)
	Reorders a child according to a new z value. More...

virtual void	sortAllChildren ()
	Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...

virtual GridBase *	getGrid ()
	Returns a grid object that is used when applying effects. More...

local	getGrid ()
	Returns a grid object that is used when applying effects. More...

virtual const GridBase *	getGrid () const
local	getGrid ()
virtual void	setGrid (GridBase *grid)
	Changes a grid object that is used when applying effects. More...

virtual int	getTag () const
	Returns a tag that is used to identify the node easily. More...

virtual void	setTag (int tag)
	Changes the tag that is used to identify the node easily. More...

local	setTag ( local tag)
	Changes the tag that is used to identify the node easily. More...

virtual void *	getUserData ()
	Returns a custom user data pointer. More...

virtual const void *	getUserData () const
virtual void	setUserData (void *userData)
	Sets a custom user data pointer. More...

virtual Object *	getUserObject ()
	Returns a user assigned Object. More...

virtual const Object *	getUserObject () const
virtual void	setUserObject (Object *userObject)
	Returns a user assigned Object. More...

local	setUserObject ( local userObject)
	Returns a user assigned Object. More...

virtual GLProgram *	getShaderProgram ()
	Return the shader program currently used for this node. More...

virtual const GLProgram *	getShaderProgram () const
local	getShaderProgram ()
virtual void	setShaderProgram (GLProgram *shaderProgram)
	Sets the shader program for this node. More...

local	setShaderProgram ( local shaderProgram)
	Sets the shader program for this node. More...

virtual void	onEnterTransitionDidFinish ()
	Event callback that is invoked when the Node enters in the 'stage'. More...

virtual void	onExitTransitionDidStart ()
	Event callback that is called every time the Node leaves the 'stage'. More...

virtual void	setActionManager (ActionManager *actionManager)
	Sets the ActionManager object that is used by all actions. More...

virtual ActionManager *	getActionManager ()
	Gets the ActionManager object that is used by all actions. More...

virtual const ActionManager *	getActionManager () const
local	getActionManager ()
Action *	runAction (Action *action)
	Executes an action, and returns the action that is executed. More...

var	runAction ( var action)
	Executes an action, and returns the action that is executed. More...

local	runAction ( local action)
	Executes an action, and returns the action that is executed. More...

void	stopAllActions ()
	Stops and removes all actions from the running action list . More...

void	stopAction (Action *action)
	Stops and removes an action from the running action list. More...

var	stopAction ( var action)
	Stops and removes an action from the running action list. More...

local	stopAction ( local action)
	Stops and removes an action from the running action list. More...

void	stopActionByTag (int tag)
	Removes an action from the running action list by its tag. More...

var	stopActionByTag ( var tag)
	Removes an action from the running action list by its tag. More...

local	stopActionByTag ( local tag)
	Removes an action from the running action list by its tag. More...

Action *	getActionByTag (int tag)
	Gets an action from the running action list by its tag. More...

unsigned int	getNumberOfRunningActions () const
	Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays). More...

local	getNumberOfRunningActions ()
	Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays). More...

CC_DEPRECATED_ATTRIBUTE unsigned int	numberOfRunningActions () const
local	numberOfRunningActions ()
virtual void	setScheduler (Scheduler *scheduler)
	Sets a Scheduler object that is used to schedule all "updates" and timers. More...

virtual Scheduler *	getScheduler ()
	Gets a Sheduler object. More...

virtual const Scheduler *	getScheduler () const
local	getScheduler ()
bool	isScheduled (SEL_SCHEDULE selector)
	Checks whether a selector is scheduled. More...

void	scheduleUpdate (void)
	Schedules the "update" method. More...

void	scheduleUpdateWithPriority (int priority)
	Schedules the "update" method with a custom priority. More...

void	unscheduleUpdate (void)
var	unscheduleUpdate ()
local	unscheduleUpdate ()
void	schedule (SEL_SCHEDULE selector, float interval, unsigned int repeat, float delay)
	Schedules a custom selector. More...

void	schedule (SEL_SCHEDULE selector, float interval)
	Schedules a custom selector with an interval time in seconds. More...

void	scheduleOnce (SEL_SCHEDULE selector, float delay)
	Schedules a selector that runs only once, with a delay of 0 or larger. More...

void	schedule (SEL_SCHEDULE selector)
	Schedules a custom selector, the scheduled selector will be ticked every frame. More...

void	unschedule (SEL_SCHEDULE selector)
	Unschedules a custom selector. More...

void	unscheduleAllSelectors (void)
	Unschedule all scheduled selectors: custom selectors, and the 'update' selector. More...

void	resume (void)
	Resumes all scheduled selectors, actions and event listeners. More...

void	pause (void)
	Pauses all scheduled selectors, actions and event listeners. More...

var	pause ()
	Pauses all scheduled selectors, actions and event listeners. More...

local	pause ()
	Pauses all scheduled selectors, actions and event listeners. More...

CC_DEPRECATED_ATTRIBUTE void	resumeSchedulerAndActions (void)
	Resumes all scheduled selectors, actions and event listeners. More...

local	resumeSchedulerAndActions ()
	Resumes all scheduled selectors, actions and event listeners. More...

CC_DEPRECATED_ATTRIBUTE void	pauseSchedulerAndActions (void)
	Pauses all scheduled selectors, actions and event listeners. More...

local	pauseSchedulerAndActions ()
	Pauses all scheduled selectors, actions and event listeners. More...

virtual void	update (float delta)
var	update ( var delta)
void	transform ()
	Performs OpenGL view-matrix transformation based on position, scale, rotation and other attributes. More...

void	transformAncestors ()
	Performs OpenGL view-matrix transformation of it's ancestors. More...

virtual void	updateTransform ()
	Calls children's updateTransform() method recursively. More...

var	updateTransform ()
	Calls children's updateTransform() method recursively. More...

local	updateTransform ()
	Calls children's updateTransform() method recursively. More...

virtual const AffineTransform &	getNodeToParentTransform () const
	Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates. More...

local	getNodeToParentTransform ()
	Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates. More...

virtual CC_DEPRECATED_ATTRIBUTE AffineTransform	nodeToParentTransform () const
local	nodeToParentTransform ()
virtual const AffineTransform &	getParentToNodeTransform () const
	Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates. More...

virtual CC_DEPRECATED_ATTRIBUTE AffineTransform	parentToNodeTransform () const
local	parentToNodeTransform ()
virtual AffineTransform	getNodeToWorldTransform () const
	Returns the world affine transform matrix. More...

local	getNodeToWorldTransform ()
	Returns the world affine transform matrix. More...

virtual CC_DEPRECATED_ATTRIBUTE AffineTransform	nodeToWorldTransform () const
local	nodeToWorldTransform ()
virtual AffineTransform	getWorldToNodeTransform () const
	Returns the inverse world affine transform matrix. More...

local	getWorldToNodeTransform ()
	Returns the inverse world affine transform matrix. More...

virtual CC_DEPRECATED_ATTRIBUTE AffineTransform	worldToNodeTransform () const
local	worldToNodeTransform ()
Point	convertToNodeSpace (const Point &worldPoint) const
	Converts a Point to node (local) space coordinates. More...

Point	convertToWorldSpace (const Point &nodePoint) const
	Converts a Point to world space coordinates. More...

var	convertToWorldSpace ( var nodePoint)
	Converts a Point to world space coordinates. More...

local	convertToWorldSpace ( local nodePoint)
	Converts a Point to world space coordinates. More...

Point	convertToNodeSpaceAR (const Point &worldPoint) const
	Converts a Point to node (local) space coordinates. More...

var	convertToNodeSpaceAR ( var worldPoint)
	Converts a Point to node (local) space coordinates. More...

local	convertToNodeSpaceAR ( local worldPoint)
	Converts a Point to node (local) space coordinates. More...

Point	convertToWorldSpaceAR (const Point &nodePoint) const
	Converts a local Point to world space coordinates.The result is in Points. More...

Point	convertTouchToNodeSpace (Touch *touch) const
	convenience methods which take a Touch instead of Point More...

Point	convertTouchToNodeSpaceAR (Touch *touch) const
	converts a Touch (world coordinates) into a local coordinate. More...

var	convertTouchToNodeSpaceAR ( var touch)
	converts a Touch (world coordinates) into a local coordinate. More...

local	convertTouchToNodeSpaceAR ( local touch)
	converts a Touch (world coordinates) into a local coordinate. More...

void	setAdditionalTransform (const AffineTransform &additionalTransform)
	Sets the additional transform. More...

var	setAdditionalTransform ( var additionalTransform)
	Sets the additional transform. More...

local	setAdditionalTransform ( local additionalTransform)
	Sets the additional transform. More...

Component *	getComponent (const char *pName)
	gets a component by its name More...

virtual bool	addComponent (Component *pComponent)
	adds a component More...

local	addComponent ( local pComponent)
	adds a component More...

virtual bool	removeComponent (const char *pName)
	removes a component by its name More...

var	removeComponent ( var pName)
	removes a component by its name More...

local	removeComponent ( local pName)
	removes a component by its name More...

virtual void	removeAllComponents ()
	removes all components More...

var	removeAllComponents ()
	removes all components More...

local	removeAllComponents ()
	removes all components More...

	Node (void)
	Default constructor. More...

virtual	~Node (void)
	Default destructor. More...

const char *	description (void) const
	Gets the description string. More...

Public Member Functions inherited from Object
	Object ()
	Constructor. More...

virtual	~Object ()
void	release ()
	Release the ownership immediately. More...

void	retain ()
	Retains the ownership. More...

Object *	autorelease ()
	Release the ownership sometime soon automatically. More...

bool	isSingleReference () const
	Returns a boolean value that indicates whether there is only one reference to the object. More...

unsigned int	retainCount () const
	Returns the object's current reference count. More...

virtual bool	isEqual (const Object *object)
	Returns a boolean value that indicates whether this object and a given object are equal. More...

virtual void	acceptVisitor (DataVisitor &visitor)
Public Member Functions inherited from RGBAProtocol
virtual	~RGBAProtocol ()
Public Member Functions inherited from IMEDelegate
virtual	~IMEDelegate ()
virtual bool	attachWithIME ()
virtual bool	detachWithIME ()

Static Public Member Functions
static EditBox *	create (const Size &size, Scale9Sprite pNormal9SpriteBg, Scale9Sprite pPressed9SpriteBg=NULL, Scale9Sprite *pDisabled9SpriteBg=NULL)
	create a edit box with size. More...

Static Public Member Functions inherited from ControlButton
static ControlButton *	create ()
static ControlButton *	create (Scale9Sprite *sprite)
static ControlButton *	create (Node label, Scale9Sprite backgroundSprite)
var	create ( var label, var backgroundSprite)
local	create ( local label, local backgroundSprite)
static ControlButton *	create (std::string title, const char *fontName, float fontSize)
var	create ( var title, var fontName, var fontSize)
local	create ( local title, local fontName, local fontSize)
Static Public Member Functions inherited from Control
static Control *	create ()

Protected Attributes
EditBoxImpl *	_editBoxImpl
EditBoxDelegate *	_delegate
InputMode	_editBoxInputMode
InputFlag	_editBoxInputFlag
EditBox::KeyboardReturnType	_keyboardReturnType
std::string	_text
std::string	_placeHolder
std::string	_fontName
std::string	_placeholderFontName
int	_fontSize
int	_placeholderFontSize
Color3B	_colText
Color3B	_colPlaceHolder
int	_maxLength
float	_adjustHeight
int	_scriptEditBoxHandler
Protected Attributes inherited from ControlButton
bool	_isPushed
var	_isPushed
local	_isPushed
bool	_parentInited
var	_parentInited
local	_parentInited
bool	_doesAdjustBackgroundImage
String *	_currentTitle
	The current title that is displayed on the button. More...

var	_currentTitle
	The current title that is displayed on the button. More...

local	_currentTitle
	The current title that is displayed on the button. More...

Color3B	_currentTitleColor
	The current color used to display the title. More...

local	_currentTitleColor
	The current color used to display the title. More...

Node *	_titleLabel
	The current title label. More...

Scale9Sprite *	_backgroundSprite
	The current background sprite. More...

Size	_preferredSize
	The prefered size of the button, if label is larger it will be expanded. More...

bool	_zoomOnTouchDown
	Adjust the button zooming on touchdown. More...

var	_zoomOnTouchDown
	Adjust the button zooming on touchdown. More...

local	_zoomOnTouchDown
	Adjust the button zooming on touchdown. More...

Point	_labelAnchorPoint
Dictionary *	_titleDispatchTable
Dictionary *	_titleColorDispatchTable
Dictionary *	_titleLabelDispatchTable
Dictionary *	_backgroundSpriteDispatchTable
int	_marginV
int	_marginH
var	_marginH
local	_marginH
Protected Attributes inherited from Control
bool	_enabled
bool	_selected
var	_selected
local	_selected
bool	_highlighted
var	_highlighted
local	_highlighted
bool	_hasVisibleParents
	True if all of the controls parents are visible. More...

var	_hasVisibleParents
	True if all of the controls parents are visible. More...

local	_hasVisibleParents
	True if all of the controls parents are visible. More...

Dictionary *	_dispatchTable
	Table of connection between the ControlEvents and their associated target-actions pairs. More...

bool	_isOpacityModifyRGB
State	_state
	The current control state constant. More...

Protected Attributes inherited from LayerRGBA
GLubyte	_displayedOpacity
GLubyte	_realOpacity
Color3B	_displayedColor
Color3B	_realColor
bool	_cascadeOpacityEnabled
bool	_cascadeColorEnabled
Protected Attributes inherited from Layer
bool	_touchEnabled
bool	_accelerometerEnabled
var	_accelerometerEnabled
local	_accelerometerEnabled
bool	_keyboardEnabled
var	_keyboardEnabled
local	_keyboardEnabled
EventListener *	_touchListener
var	_touchListener
local	_touchListener
EventListenerKeyboard *	_keyboardListener
var	_keyboardListener
local	_keyboardListener
EventListenerAcceleration *	_accelerationListener
var	_accelerationListener
local	_accelerationListener
Protected Attributes inherited from Node
float	_rotationX
	rotation angle on x-axis More...

float	_rotationY
	rotation angle on y-axis More...

var	_rotationY
	rotation angle on y-axis More...

local	_rotationY
	rotation angle on y-axis More...

float	_scaleX
	scaling factor on x-axis More...

var	_scaleX
	scaling factor on x-axis More...

local	_scaleX
	scaling factor on x-axis More...

float	_scaleY
	scaling factor on y-axis More...

var	_scaleY
	scaling factor on y-axis More...

local	_scaleY
	scaling factor on y-axis More...

float	_vertexZ
	OpenGL real Z vertex. More...

var	_vertexZ
	OpenGL real Z vertex. More...

local	_vertexZ
	OpenGL real Z vertex. More...

Point	_position
	position of the node More...

var	_position
	position of the node More...

local	_position
	position of the node More...

float	_skewX
	skew angle on x-axis More...

var	_skewX
	skew angle on x-axis More...

local	_skewX
	skew angle on x-axis More...

float	_skewY
	skew angle on y-axis More...

var	_skewY
	skew angle on y-axis More...

local	_skewY
	skew angle on y-axis More...

Point	_anchorPointInPoints
	anchor point in points More...

var	_anchorPointInPoints
	anchor point in points More...

local	_anchorPointInPoints
	anchor point in points More...

Point	_anchorPoint
	anchor point normalized (NOT in points) More...

var	_anchorPoint
	anchor point normalized (NOT in points) More...

local	_anchorPoint
	anchor point normalized (NOT in points) More...

Size	_contentSize
	untransformed size of the node More...

var	_contentSize
	untransformed size of the node More...

local	_contentSize
	untransformed size of the node More...

AffineTransform	_additionalTransform
	transform More...

var	_additionalTransform
	transform More...

local	_additionalTransform
	transform More...

AffineTransform	_transform
	transform More...

var	_transform
	transform More...

local	_transform
	transform More...

AffineTransform	_inverse
	inverse transform More...

var	_inverse
	inverse transform More...

local	_inverse
	inverse transform More...

bool	_additionalTransformDirty
	The flag to check whether the additional transform is dirty. More...

var	_additionalTransformDirty
	The flag to check whether the additional transform is dirty. More...

local	_additionalTransformDirty
	The flag to check whether the additional transform is dirty. More...

bool	_transformDirty
	transform dirty flag More...

var	_transformDirty
	transform dirty flag More...

local	_transformDirty
	transform dirty flag More...

bool	_inverseDirty
	inverse transform dirty flag More...

var	_inverseDirty
	inverse transform dirty flag More...

local	_inverseDirty
	inverse transform dirty flag More...

Camera *	_camera
	a camera More...

var	_camera
	a camera More...

local	_camera
	a camera More...

GridBase *	_grid
	a grid More...

var	_grid
	a grid More...

local	_grid
	a grid More...

int	_ZOrder
	z-order value that affects the draw order More...

var	_ZOrder
	z-order value that affects the draw order More...

local	_ZOrder
	z-order value that affects the draw order More...

Array *	_children
	array of children nodes More...

var	_children
	array of children nodes More...

local	_children
	array of children nodes More...

Node *	_parent
	weak reference to parent node More...

var	_parent
	weak reference to parent node More...

local	_parent
	weak reference to parent node More...

int	_tag
	a tag. Can be any number you assigned just to identify this node More...

var	_tag
	a tag. Can be any number you assigned just to identify this node More...

local	_tag
	a tag. Can be any number you assigned just to identify this node More...

void *	_userData
	A user assingned void pointer, Can be point to any cpp object. More...

var	_userData
	A user assingned void pointer, Can be point to any cpp object. More...

local	_userData
	A user assingned void pointer, Can be point to any cpp object. More...

Object *	_userObject
	A user assigned Object. More...

var	_userObject
	A user assigned Object. More...

local	_userObject
	A user assigned Object. More...

GLProgram *	_shaderProgram
	OpenGL shader. More...

var	_shaderProgram
	OpenGL shader. More...

local	_shaderProgram
	OpenGL shader. More...

int	_orderOfArrival
	used to preserve sequence while sorting children with the same zOrder More...

var	_orderOfArrival
	used to preserve sequence while sorting children with the same zOrder More...

local	_orderOfArrival
	used to preserve sequence while sorting children with the same zOrder More...

Scheduler *	_scheduler
	scheduler used to schedule timers and updates More...

var	_scheduler
	scheduler used to schedule timers and updates More...

local	_scheduler
	scheduler used to schedule timers and updates More...

ActionManager *	_actionManager
	a pointer to ActionManager singleton, which is used to handle all the actions More...

var	_actionManager
	a pointer to ActionManager singleton, which is used to handle all the actions More...

local	_actionManager
	a pointer to ActionManager singleton, which is used to handle all the actions More...

EventDispatcher *	_eventDispatcher
	event dispatcher used to dispatch all kinds of events More...

var	_eventDispatcher
	event dispatcher used to dispatch all kinds of events More...

local	_eventDispatcher
	event dispatcher used to dispatch all kinds of events More...

bool	_running
	is running More...

bool	_visible
	is this node visible More...

var	_visible
	is this node visible More...

local	_visible
	is this node visible More...

bool	_ignoreAnchorPointForPosition
	true if the Anchor Point will be (0,0) when you position the Node, false otherwise. More...

var	_ignoreAnchorPointForPosition
	true if the Anchor Point will be (0,0) when you position the Node, false otherwise. More...

local	_ignoreAnchorPointForPosition
	true if the Anchor Point will be (0,0) when you position the Node, false otherwise. More...

bool	_reorderChildDirty
	children order dirty flag More...

local	_reorderChildDirty
	children order dirty flag More...

bool	_isTransitionFinished
	flag to indicate whether the transition was finished More...

var	_isTransitionFinished
	flag to indicate whether the transition was finished More...

local	_isTransitionFinished
	flag to indicate whether the transition was finished More...

int	_scriptHandler
	script handler for onEnter() & onExit(), used in Javascript binding and Lua binding. More...

var	_scriptHandler
	script handler for onEnter() & onExit(), used in Javascript binding and Lua binding. More...

local	_scriptHandler
	script handler for onEnter() & onExit(), used in Javascript binding and Lua binding. More...

int	_updateScriptHandler
	script handler for update() callback per frame, which is invoked from lua & javascript. More...

var	_updateScriptHandler
	script handler for update() callback per frame, which is invoked from lua & javascript. More...

local	_updateScriptHandler
	script handler for update() callback per frame, which is invoked from lua & javascript. More...

ccScriptType	_scriptType
	type of script binding, lua or javascript More...

var	_scriptType
	type of script binding, lua or javascript More...

local	_scriptType
	type of script binding, lua or javascript More...

ComponentContainer *	_componentContainer
	Dictionary of components. More...

Protected Attributes inherited from Object
unsigned int	_reference
	count of references More...

unsigned int	_autoReleaseCount
	count of autorelease More...

Additional Inherited Members
Public Attributes inherited from Object
unsigned int	_ID
	object id, ScriptSupport need public _ID More...

int	_luaID
	Lua reference id. More...

Static Public Attributes inherited from Node
static const int	INVALID_TAG = -1
	Default tag used for all the nodes. More...

var	INVALID_TAG = -1
	Default tag used for all the nodes. More...

local	INVALID_TAG = -1
	Default tag used for all the nodes. More...

Protected Member Functions inherited from Control
Invocation *	invocationWithTargetAndActionForControlEvent (Object *target, Handler action, EventType controlEvent)
	Returns an Invocation object able to construct messages using a given target-action pair. More...

Array *	dispatchListforControlEvent (EventType controlEvent)
	Returns the Invocation list for the given control event. More...

void	addTargetWithActionForControlEvent (Object *target, Handler action, EventType controlEvent)
	Adds a target and action for a particular event to an internal dispatch table. More...

void	removeTargetWithActionForControlEvent (Object *target, Handler action, EventType controlEvent)
	Removes a target and action for a particular event from an internal dispatch table. More...

Protected Member Functions inherited from IMEDelegate
virtual bool	canAttachWithIME ()
	Decide if the delegate instance is ready to receive an IME message. More...

virtual void	didAttachWithIME ()
	When the delegate detaches from the IME, this method is called by IMEDispatcher. More...

virtual bool	canDetachWithIME ()
	Decide if the delegate instance can stop receiving IME messages. More...

virtual void	didDetachWithIME ()
	When the delegate detaches from the IME, this method is called by IMEDispatcher. More...

virtual void	insertText (const char *text, int len)
	Called by IMEDispatcher when text input received from the IME. More...

virtual void	deleteBackward ()
	Called by IMEDispatcher after the user clicks the backward key. More...

virtual const char *	getContentText ()
	Called by IMEDispatcher for text stored in delegate. More...

	IMEDelegate ()

Detailed Description

Class for edit box.

You can use this widget to gather small amounts of text from the user.

Member Enumeration Documentation

enum InputFlag

strong

The EditBox::InputFlag defines how the input text is displayed/formatted.

Enumerator
PASSWORD	Indicates that the text entered is confidential data that should be obscured whenever possible. This implies EDIT_BOX_INPUT_FLAG_SENSITIVE.
SENSITIVE	Indicates that the text entered is sensitive data that the implementation must never store into a dictionary or table for use in predictive, auto-completing, or other accelerated input schemes. A credit card number is an example of sensitive data.
INITIAL_CAPS_WORD	This flag is a hint to the implementation that during text editing, the initial letter of each word should be capitalized.
INITIAL_CAPS_SENTENCE	This flag is a hint to the implementation that during text editing, the initial letter of each sentence should be capitalized.
INTIAL_CAPS_ALL_CHARACTERS	Capitalize all characters automatically.

enum InputMode

strong

The EditBox::InputMode defines the type of text that the user is allowed to enter.

Enumerator
ANY	The user is allowed to enter any text, including line breaks.
EMAIL_ADDRESS	The user is allowed to enter an e-mail address.
NUMERIC	The user is allowed to enter an integer value.
PHONE_NUMBER	The user is allowed to enter a phone number.
URL	The user is allowed to enter a URL.
DECIMAL	The user is allowed to enter a real number value. This extends kEditBoxInputModeNumeric by allowing a decimal point.
SINGLE_LINE	The user is allowed to enter any text, except for line breaks.

enum KeyboardReturnType

strong

Enumerator
DEFAULT
DONE
SEND
SEARCH
GO

Constructor & Destructor Documentation

EditBox ( void )

Constructor.

virtual ~EditBox ( void )

virtual

Destructor.

Member Function Documentation

static EditBox* create	(	const Size &	size,
		Scale9Sprite *	pNormal9SpriteBg,
		Scale9Sprite *	pPressed9SpriteBg = `NULL`,
		Scale9Sprite *	pDisabled9SpriteBg = `NULL`
	)

static

create a edit box with size.

Returns: An autorelease pointer of EditBox, you don't need to release it only if you retain it again.

EditBoxDelegate* getDelegate ( )

int getMaxLength ( )

Gets the maximum input length of the edit box.

Returns: Maximum input length.

const char* getPlaceHolder ( void )

Get a text in the edit box that acts as a placeholder when an edit box is empty.

int getScriptEditBoxHandler ( void )

inline

get a script Handler

const char* getText ( void )

Get the text entered in the edit box.

Returns: The text entered in the edit box.

bool initWithSizeAndBackgroundSprite	(	const Size &	size,
		Scale9Sprite *	pNormal9SpriteBg
	)

Init edit box with specified size.

This method should be invoked right after constructor.

Parameters

size	The size of edit box.

virtual void keyboardDidHide ( IMEKeyboardNotificationInfo & info)

virtual

Reimplemented from IMEDelegate.

virtual void keyboardDidShow ( IMEKeyboardNotificationInfo & info)

virtual

Reimplemented from IMEDelegate.

virtual void keyboardWillHide ( IMEKeyboardNotificationInfo & info)

virtual

Reimplemented from IMEDelegate.

virtual void keyboardWillShow ( IMEKeyboardNotificationInfo & info)

virtual

Reimplemented from IMEDelegate.

virtual void onEnter ( void )

virtual

Event callback that is invoked every time when Node enters the 'stage'.

If the Node enters the 'stage' with a transition, this event is called when the transition starts. During onEnter you can't access a "sister/brother" node. If you override onEnter, you shall call its parent's one, e.g., Node::onEnter().

Reimplemented from Node.

virtual void onExit ( void )

virtual

Event callback that is invoked every time the Node leaves the 'stage'.

If the Node leaves the 'stage' with a transition, this event is called when the transition finishes. During onExit you can't access a sibling node. If you override onExit, you shall call its parent's one, e.g., Node::onExit().

Reimplemented from Node.

void registerScriptEditBoxHandler ( int handler)

Registers a script function that will be called for EditBox events.

This handler will be removed automatically after onExit() called.

-- lua sample
local function editboxEventHandler(eventType)
    if eventType == "began" then
        -- triggered when an edit box gains focus after keyboard is shown
    elseif eventType == "ended" then
        -- triggered when an edit box loses focus after keyboard is hidden.
    elseif eventType == "changed" then
        -- triggered when the edit box text was changed.
    elseif eventType == "return" then
        -- triggered when the return button was pressed or the outside area of keyboard was touched.
    end
end
local editbox = EditBox:create(Size(...), Scale9Sprite:create(...))
editbox = registerScriptEditBoxHandler(editboxEventHandler)

Parameters

handler A number that indicates a lua function.

virtual void setAnchorPoint ( const Point & anchorPoint)

virtual

Sets the anchor point in percent.

anchorPoint is the point around which all transformations and positioning manipulations take place. It's like a pin in the node where it is "attached" to its parent. The anchorPoint is normalized, like a percentage. (0,0) means the bottom-left corner and (1,1) means the top-right corner. But you can use values higher than (1,1) and lower than (0,0) too. The default anchorPoint is (0.5,0.5), so it starts in the center of the node.

Parameters

anchorPoint The anchor point of node.

Reimplemented from Node.

virtual void setContentSize ( const Size & contentSize)

virtual

Sets the untransformed size of the node.

The contentSize remains the same no matter the node is scaled or rotated. All nodes has a size. Layer and Scene has the same size of the screen.

Parameters

contentSize The untransformed size of the node.

Reimplemented from Node.

void setDelegate ( EditBoxDelegate * pDelegate)

Gets/Sets the delegate for edit box.

void setFont	(	const char *	pFontName,
		int	fontSize
	)

Set the font.

Parameters

pFontName	The font name.
fontSize	The font size.

void setFontColor ( const Color3B & color)

Set the font color of the widget's text.

void setFontName ( const char * pFontName)

Set the font name.

Parameters

pFontName The font name.

void setFontSize ( int fontSize)

Set the font size.

Parameters

fontSize The font size.

void setInputFlag ( InputFlag inputFlag)

Set the input flags that are to be applied to the edit box.

Parameters

inputFlag One of the EditBox::InputFlag constants.

void setInputMode ( InputMode inputMode)

Set the input mode of the edit box.

Parameters

inputMode One of the EditBox::InputMode constants.

void setMaxLength ( int maxLength)

Sets the maximum input length of the edit box.

Setting this value enables multiline input mode by default. Available on Android, iOS and Windows Phone.

Parameters

maxLength The maximum length.

void setPlaceHolder ( const char * pText)

Set a text in the edit box that acts as a placeholder when an edit box is empty.

Parameters

pText The given text.

void setPlaceholderFont	(	const char *	pFontName,
		int	fontSize
	)

Set the placeholder's font.

Parameters

pFontName	The font name.
fontSize	The font size.

void setPlaceholderFontColor ( const Color3B & color)

Set the font color of the placeholder text when the edit box is empty.

Not supported on IOS.

void setPlaceholderFontName ( const char * pFontName)

Set the placeholder's font name.

Parameters

pFontName The font name.

void setPlaceholderFontSize ( int fontSize)

Set the placeholder's font size.

Parameters

fontSize The font size.

virtual void setPosition ( const Point & position)

virtual

Changes the position (x,y) of the node in OpenGL coordinates.

Usually we use Point(x,y) to compose Point object. The original point (0,0) is at the left-bottom corner of screen. For example, this codesnip sets the node in the center of screen.

Size size = Director::getInstance()->getWinSize();

node->setPosition( Point(size.width/2, size.height/2) )

Parameters

position The position (x,y) of the node in OpenGL coordinates

Reimplemented from Node.

void setReturnType ( EditBox::KeyboardReturnType returnType)

Set the return type that are to be applied to the edit box.

Parameters

returnType One of the EditBox::KeyboardReturnType constants.

void setText ( const char * pText)

Set the text entered in the edit box.

Parameters

pText The given text.

virtual void setVisible ( bool visible)

virtual

Sets whether the node is visible.

The default value is true, a node is default to visible

Parameters

visible true if the node is visible, false if the node is hidden.

Reimplemented from Node.

void touchDownAction	(	Object *	sender,
		Control::EventType	controlEvent
	)

void unregisterScriptEditBoxHandler ( void )

Unregisters a script function that will be called for EditBox events.

virtual void visit ( void )

virtual

Visits this node's children and draw them recursively.

Reimplemented from Node.

Member Data Documentation

float _adjustHeight

protected

Color3B _colPlaceHolder

protected

Color3B _colText

protected

EditBoxDelegate* _delegate

protected

EditBoxImpl* _editBoxImpl

protected

InputFlag _editBoxInputFlag

protected

InputMode _editBoxInputMode

protected

std::string _fontName

protected

int _fontSize

protected

EditBox::KeyboardReturnType
_keyboardReturnType

protected

int _maxLength

protected

std::string _placeHolder

protected

std::string _placeholderFontName

protected

int _placeholderFontSize

protected

int _scriptEditBoxHandler

protected

std::string _text

protected

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x-develop/extensions/GUI/CCEditBox/CCEditBox.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
