FadeOutTRTiles action Fades out the tiles in a Top-Right direction. More...

#include <CCActionTiledGrid.h>

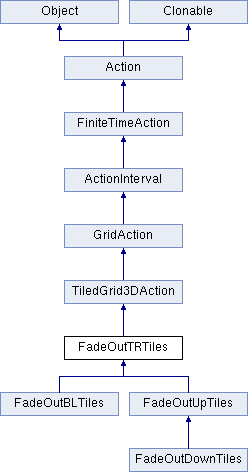

Inheritance diagram for FadeOutTRTiles:

Public Member Functions
virtual float	testFunc (const Size &pos, float time)
void	turnOnTile (const Point &pos)
void	turnOffTile (const Point &pos)
virtual void	transformTile (const Point &pos, float distance)
virtual void	update (float time) override
	called once per frame. More...

virtual FadeOutTRTiles *	clone () const override
	returns a clone of action More...

Public Member Functions inherited from TiledGrid3DAction
Quad3	getTile (const Point &position) const
	returns the tile that belongs to a certain position of the grid More...

CC_DEPRECATED_ATTRIBUTE Quad3	tile (const Point &position)
Quad3	getOriginalTile (const Point &position) const
	returns the non-transformed tile that belongs to a certain position of the grid More...

CC_DEPRECATED_ATTRIBUTE Quad3	originalTile (const Point &position)
void	setTile (const Point &position, const Quad3 &coords)
	sets a new tile to a certain position of the grid More...

virtual GridBase *	getGrid ()
	returns the grid More...

Public Member Functions inherited from GridAction
bool	initWithDuration (float duration, const Size &gridSize)
	initializes the action with size and duration More...

var	initWithDuration ( var duration, var gridSize)
	initializes the action with size and duration More...

local	initWithDuration ( local duration, local gridSize)
	initializes the action with size and duration More...

virtual GridAction *	reverse () const override
	returns a new action that performs the exactly the reverse action More...

var	reverse ()
	returns a new action that performs the exactly the reverse action More...

local	reverse ()
	returns a new action that performs the exactly the reverse action More...

virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...

var	startWithTarget ( var target)
	called before the action start. It will also set the target. More...

local	startWithTarget ( local target)
	called before the action start. It will also set the target. More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...

bool	initWithDuration (float d)
	initializes the action More...

var	initWithDuration ( var d)
	initializes the action More...

local	initWithDuration ( local d)
	initializes the action More...

void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
virtual bool	isDone (void) const override
	return true if the action has finished More...

var	isDone ()
	return true if the action has finished More...

local	isDone ()
	return true if the action has finished More...

virtual void	step (float dt) override
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

Public Member Functions inherited from FiniteTimeAction
	FiniteTimeAction ()
virtual	~FiniteTimeAction ()
float	getDuration () const
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
	Action ()
virtual	~Action ()
const char *	description () const
virtual void	stop ()
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

Node *	getTarget () const
var	getTarget ()
local	getTarget ()
void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

local	setOriginalTarget ( local originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
var	getTag ()
local	getTag ()
void	setTag (int tag)
var	setTag ( var tag)
local	setTag ( local tag)
Public Member Functions inherited from Object
	Object ()
	Constructor. More...

virtual	~Object ()
void	release ()
	Release the ownership immediately. More...

void	retain ()
	Retains the ownership. More...

Object *	autorelease ()
	Release the ownership sometime soon automatically. More...

bool	isSingleReference () const
	Returns a boolean value that indicates whether there is only one reference to the object. More...

unsigned int	retainCount () const
	Returns the object's current reference count. More...

virtual bool	isEqual (const Object *object)
	Returns a boolean value that indicates whether this object and a given object are equal. More...

virtual void	acceptVisitor (DataVisitor &visitor)
Public Member Functions inherited from Clonable
virtual	~Clonable ()
Object *	copy () const
	returns a copy of the object. More...

var	copy ()
	returns a copy of the object. More...

local	copy ()
	returns a copy of the object. More...

Static Public Member Functions
static FadeOutTRTiles *	create (float duration, const Size &gridSize)
	creates the action with the grid size and the duration More...

Static Public Member Functions inherited from TiledGrid3DAction
static TiledGrid3DAction *	create (float duration, const Size &gridSize)
	creates the action with size and duration More...

Additional Inherited Members
Public Attributes inherited from Object
unsigned int	_ID
	object id, ScriptSupport need public _ID More...

int	_luaID
	Lua reference id. More...

Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Attributes inherited from GridAction
Size	_gridSize

Detailed Description

FadeOutTRTiles action Fades out the tiles in a Top-Right direction.

Member Function Documentation

virtual FadeOutTRTiles* clone ( ) const

overridevirtual

returns a clone of action

Implements TiledGrid3DAction.

Reimplemented in FadeOutDownTiles, FadeOutUpTiles, and FadeOutBLTiles.

static FadeOutTRTiles* create	(	float	duration,
		const Size &	gridSize
	)

static

creates the action with the grid size and the duration

virtual float testFunc	(	const Size &	pos,
		float	time
	)

virtual

Reimplemented in FadeOutDownTiles, FadeOutUpTiles, and FadeOutBLTiles.

virtual void transformTile	(	const Point &	pos,
		float	distance
	)

virtual

Reimplemented in FadeOutUpTiles.

void turnOffTile ( const Point & pos)

void turnOnTile ( const Point & pos)

virtual void update ( float time)

overridevirtual

called once per frame.

time a value between 0 and 1

For example:

0 means that the action just started
0.5 means that the action is in the middle
1 means that the action is over

Reimplemented from Action.

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x-develop/cocos/2d/CCActionTiledGrid.h
