CCCatmullRomBy Class Reference

//// @ More...

#include <CCActionCatmullRom.h>

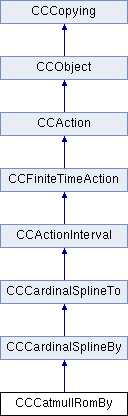

Inheritance diagram for CCCatmullRomBy:

Public Member Functions
bool	initWithDuration (float dt, CCPointArray *points)
	initializes the action with a duration and an array of points More...
Public Member Functions inherited from CCCardinalSplineBy
	CCCardinalSplineBy ()
virtual void	startWithTarget (CCNode *pTarget)
	called before the action start. It will also set the target. More...
virtual CCActionInterval *	reverse ()
	returns a reversed action More...
local	reverse ()
	returns a reversed action More...
virtual void	updatePosition (CCPoint &newPos)
Public Member Functions inherited from CCCardinalSplineTo
virtual	~CCCardinalSplineTo ()
	CCCardinalSplineTo ()
bool	initWithDuration (float duration, CCPointArray *points, float tension)
	initializes the action with a duration and an array of points More...
virtual CCCardinalSplineTo *	copyWithZone (CCZone *pZone)
virtual void	update (float time)
	called once per frame. More...
CCPointArray *	getPoints ()
void	setPoints (CCPointArray *points)
local	setPoints ( local points)
Public Member Functions inherited from CCActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...
local	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...
bool	initWithDuration (float d)
	initializes the action More...
virtual bool	isDone (void)
	returns true if the action has finished More...
var	isDone ()
	returns true if the action has finished More...
local	isDone ()
	returns true if the action has finished More...
virtual void	step (float dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...
void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
Public Member Functions inherited from CCFiniteTimeAction
	CCFiniteTimeAction ()
virtual	~CCFiniteTimeAction ()
float	getDuration (void)
	get duration in seconds of the action More...
void	setDuration (float duration)
	set duration in seconds of the action More...
Public Member Functions inherited from CCAction
	CCAction (void)
	ctor ()
	CCAction ()
virtual	~CCAction (void)
const char *	description ()
virtual void	stop (void)
	called after the action has finished. More...
var	stop ()
	called after the action has finished. More...
local	stop ()
	called after the action has finished. More...
CCNode *	getTarget (void)
void	setTarget (CCNode *pTarget)
	The action will modify the target properties. More...
var	setTarget ( var pTarget)
	The action will modify the target properties. More...
local	setTarget ( local pTarget)
	The action will modify the target properties. More...
CCNode *	getOriginalTarget (void)
local	getOriginalTarget ()
void	setOriginalTarget (CCNode *pOriginalTarget)
	Set the original target, since target can be nil. More...
int	getTag (void)
var	getTag ()
local	getTag ()
void	setTag (int nTag)
var	setTag ( var nTag)
local	setTag ( local nTag)
Public Member Functions inherited from CCObject
	CCObject (void)
virtual	~CCObject (void)
void	release (void)
void	retain (void)
CCObject *	autorelease (void)
CCObject *	copy (void)
bool	isSingleReference (void) const
unsigned int	retainCount (void) const
virtual bool	isEqual (const CCObject *pObject)
virtual void	acceptVisitor (CCDataVisitor &visitor)

Static Public Member Functions
static CCCatmullRomBy *	create (float dt, CCPointArray *points)
	creates an action with a Cardinal Spline array of points and tension More...
local	create ( local dt, local points)
	creates an action with a Cardinal Spline array of points and tension More...
Static Public Member Functions inherited from CCCardinalSplineBy
static CCCardinalSplineBy *	create (float duration, CCPointArray *points, float tension)
	creates an action with a Cardinal Spline array of points and tension More...
local	create ( local duration, local points, local tension)
	creates an action with a Cardinal Spline array of points and tension More...
Static Public Member Functions inherited from CCCardinalSplineTo
static CCCardinalSplineTo *	create (float duration, CCPointArray *points, float tension)
	creates an action with a Cardinal Spline array of points and tension More...
local	create ( local duration, local points, local tension)
	creates an action with a Cardinal Spline array of points and tension More...
Static Public Member Functions inherited from CCActionInterval
static CCActionInterval *	create (float d)
	creates the action More...
local	create ( local d)
	creates the action More...

Additional Inherited Members
Public Attributes inherited from CCObject
unsigned int	m_uID
int	m_nLuaID
Protected Attributes inherited from CCCardinalSplineBy
CCPoint	m_startPosition

Detailed Description

//// @

Member Function Documentation

static CCCatmullRomBy* create ( float  dt, CCPointArray *  points  )

static

creates an action with a Cardinal Spline array of points and tension

when this function bound to js,the input params are changed
js:var create(var dt,var pointTable)

local create ( local  dt, local  points  )

static

creates an action with a Cardinal Spline array of points and tension

when this function bound to js,the input params are changed
js:var create(var dt,var pointTable)

bool initWithDuration	(	float	dt,
		CCPointArray *	points
	)

initializes the action with a duration and an array of points

---

The documentation for this class was generated from the following file:

• /Users/cocos2d/MyWork/cocos2d-x/cocos2dx/actions/CCActionCatmullRom.h
