#include <CCActionCamera.h>

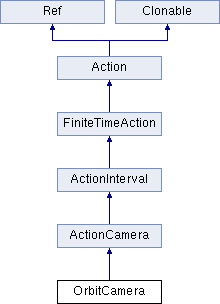

Inheritance diagram for OrbitCamera:

Public Member Functions
void	sphericalRadius (float r, float zenith, float *azimuth)
	Positions the camera according to spherical coordinates. More...

OrbitCamera *	clone () const override
	Returns a clone of action. More...

local	clone ()
	Returns a clone of action. More...

virtual void	startWithTarget (Node *target) override
	Called before the action start. More...

local	startWithTarget ( local target)
	Called before the action start. More...

virtual void	update (float time) override
	Called once per frame. More...

var	update ( var time)
	Called once per frame. More...

local	update ( local time)
	Called once per frame. More...

virtual	~OrbitCamera ()
bool	initWithDuration (float t, float radius, float deltaRadius, float angleZ, float deltaAngleZ, float angleX, float deltaAngleX)
	Initializes a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX. More...

var	initWithDuration ( var t, var radius, var deltaRadius, var angleZ, var deltaAngleZ, var angleX, var deltaAngleX)
	Initializes a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX. More...

local	initWithDuration ( local t, local radius, local deltaRadius, local angleZ, local deltaAngleZ, local angleX, local deltaAngleX)
	Initializes a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX. More...

Public Member Functions inherited from ActionCamera
	ActionCamera ()
	ctor ()
	ActionCamera ()
virtual	~ActionCamera ()
virtual ActionCamera *	reverse () const override
	Returns a new action that performs the exactly the reverse action. More...

local	reverse ()
	Returns a new action that performs the exactly the reverse action. More...

void	setEye (const Vec3 &eye)
local	setEye ( local eye)
void	setEye (float x, float y, float z)
var	setEye ( var x, var y, var z)
local	setEye ( local x, local y, local z)
const Vec3 &	getEye () const
local	getEye ()
void	setCenter (const Vec3 &center)
local	setCenter ( local center)
const Vec3 &	getCenter () const
var	getCenter ()
local	getCenter ()
void	setUp (const Vec3 &up)
local	setUp ( local up)
const Vec3 &	getUp () const
local	getUp ()
Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	How many seconds had elapsed since the actions started to run. More...

var	getElapsed ()
	How many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	How many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
	Sets the ampliture rate, extension in GridAction. More...

local	setAmplitudeRate ( local amp)
	Sets the ampliture rate, extension in GridAction. More...

float	getAmplitudeRate (void)
	Gets the ampliture rate, extension in GridAction. More...

local	getAmplitudeRate ()
	Gets the ampliture rate, extension in GridAction. More...

virtual bool	isDone (void) const override
	Return true if the action has finished. More...

local	isDone ()
	Return true if the action has finished. More...

virtual void	step (float dt) override
Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	Get duration in seconds of the action. More...

var	getDuration ()
	Get duration in seconds of the action. More...

local	getDuration ()
	Get duration in seconds of the action. More...

void	setDuration (float duration)
	Set duration in seconds of the action. More...

var	setDuration ( var duration)
	Set duration in seconds of the action. More...

local	setDuration ( local duration)
	Set duration in seconds of the action. More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	Called after the action has finished. More...

Node *	getTarget () const
	Return certain target. More...

void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
	Return a original Target. More...

var	getOriginalTarget ()
	Return a original Target. More...

local	getOriginalTarget ()
	Return a original Target. More...

void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
	Returns a tag that is used to identify the action easily. More...

var	getTag ()
	Returns a tag that is used to identify the action easily. More...

local	getTag ()
	Returns a tag that is used to identify the action easily. More...

void	setTag (int tag)
	Changes the tag that is used to identify the action easily. More...

var	setTag ( var tag)
	Changes the tag that is used to identify the action easily. More...

local	setTag ( local tag)
	Changes the tag that is used to identify the action easily. More...

virtual	~Action ()
var	~Action ()
local	~Action ()
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Releases the ownership immediately. More...

Ref *	autorelease ()
	Releases the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
	Destructor. More...

Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	Returns a copy of the Ref. More...

Static Public Member Functions
static OrbitCamera *	create (float t, float radius, float deltaRadius, float angleZ, float deltaAngleZ, float angleX, float deltaAngleX)
	Creates a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX. More...

var	create ( var t, var radius, var deltaRadius, var angleZ, var deltaAngleZ, var angleX, var deltaAngleX)
	Creates a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX. More...

local	create ( local t, local radius, local deltaRadius, local angleZ, local deltaAngleZ, local angleX, local deltaAngleX)
	Creates a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX. More...

Public Attributes
CC_CONSTRUCTOR_ACCESS	__pad0__: OrbitCamera()
Public Attributes inherited from ActionInterval
CC_CONSTRUCTOR_ACCESS	__pad0__: bool initWithDuration(float d)
Public Attributes inherited from FiniteTimeAction
CC_CONSTRUCTOR_ACCESS	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
var	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
local	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
Public Attributes inherited from Action
CC_CONSTRUCTOR_ACCESS	__pad0__: Action()

Protected Attributes
float	_radius
float	_deltaRadius
var	_deltaRadius
local	_deltaRadius
float	_angleZ
var	_angleZ
local	_angleZ
float	_deltaAngleZ
var	_deltaAngleZ
local	_deltaAngleZ
float	_angleX
var	_angleX
local	_angleX
float	_deltaAngleX
var	_deltaAngleX
local	_deltaAngleX
float	_radZ
var	_radZ
local	_radZ
float	_radDeltaZ
var	_radDeltaZ
local	_radDeltaZ
float	_radX
var	_radX
local	_radX
float	_radDeltaX
var	_radDeltaX
local	_radDeltaX
Protected Attributes inherited from ActionCamera
Vec3	_center
Vec3	_eye
var	_eye
local	_eye
Vec3	_up
var	_up
local	_up
Protected Attributes inherited from ActionInterval
float	_elapsed
var	_elapsed
local	_elapsed
bool	_firstTick
var	_firstTick
local	_firstTick
Protected Attributes inherited from Action
Node *	_originalTarget
Node *	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

local	_referenceCount
	count of references More...

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Member Functions inherited from ActionCamera
void	restore ()
var	restore ()
local	restore ()
void	updateTransform ()
var	updateTransform ()
local	updateTransform ()
Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

	Ref ()
	Constructor. More...

Detailed Description

OrbitCamera action.

Orbits the camera around the center of the screen using spherical coordinates.

Constructor & Destructor Documentation

virtual ~OrbitCamera ( )

virtual

Member Function Documentation

OrbitCamera* clone ( ) const

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from ActionCamera.

var clone ( )

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from ActionCamera.

local clone ( )

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from ActionCamera.

static OrbitCamera* create	(	float	t,
		float	radius,
		float	deltaRadius,
		float	angleZ,
		float	deltaAngleZ,
		float	angleX,
		float	deltaAngleX
	)

static

Creates a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX.

Parameters

t	Duration in seconds.
radius	The start radius.
deltaRadius	The delta radius.
angelZ	The start Angel in Z.
deltaAngleZ	The delta angle in Z.
angelX	The start Angel in X.
deltaAngleX	The delta angle in X.

Returns: An OrbitCamera.

var create	(	var	t,
		var	radius,
		var	deltaRadius,
		var	angleZ,
		var	deltaAngleZ,
		var	angleX,
		var	deltaAngleX
	)

static

Creates a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX.

Parameters

t	Duration in seconds.
radius	The start radius.
deltaRadius	The delta radius.
angelZ	The start Angel in Z.
deltaAngleZ	The delta angle in Z.
angelX	The start Angel in X.
deltaAngleX	The delta angle in X.

Returns: An OrbitCamera.

local create	(	local	t,
		local	radius,
		local	deltaRadius,
		local	angleZ,
		local	deltaAngleZ,
		local	angleX,
		local	deltaAngleX
	)

static

Creates a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX.

Parameters

t	Duration in seconds.
radius	The start radius.
deltaRadius	The delta radius.
angelZ	The start Angel in Z.
deltaAngleZ	The delta angle in Z.
angelX	The start Angel in X.
deltaAngleX	The delta angle in X.

Returns: An OrbitCamera.

bool initWithDuration	(	float	t,
		float	radius,
		float	deltaRadius,
		float	angleZ,
		float	deltaAngleZ,
		float	angleX,
		float	deltaAngleX
	)

Initializes a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX.

var initWithDuration	(	var	t,
		var	radius,
		var	deltaRadius,
		var	angleZ,
		var	deltaAngleZ,
		var	angleX,
		var	deltaAngleX
	)

Initializes a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX.

local initWithDuration	(	local	t,
		local	radius,
		local	deltaRadius,
		local	angleZ,
		local	deltaAngleZ,
		local	angleX,
		local	deltaAngleX
	)

Initializes a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX.

void sphericalRadius	(	float *	r,
		float *	zenith,
		float *	azimuth
	)

Positions the camera according to spherical coordinates.

Parameters

r	The spherical radius.
zenith	The spherical zenith.
azimuth	The spherical azimuth.

var sphericalRadius	(	var	r,
		var	zenith,
		var	azimuth
	)

Positions the camera according to spherical coordinates.

Parameters

r	The spherical radius.
zenith	The spherical zenith.
azimuth	The spherical azimuth.

local sphericalRadius	(	local	r,
		local	zenith,
		local	azimuth
	)

Positions the camera according to spherical coordinates.

Parameters

r	The spherical radius.
zenith	The spherical zenith.
azimuth	The spherical azimuth.

virtual void startWithTarget ( Node * target )

overridevirtual

Called before the action start.

It will also set the target.

Parameters

target A certain target.

Reimplemented from ActionCamera.

var startWithTarget ( var target )

overridevirtual

Called before the action start.

It will also set the target.

Parameters

target A certain target.

Reimplemented from ActionCamera.

local startWithTarget ( local target )

overridevirtual

Called before the action start.

It will also set the target.

Parameters

target A certain target.

Reimplemented from ActionCamera.

virtual void update ( float time )

overridevirtual

Called once per frame.

time a value between 0 and 1.

For example:

0 Means that the action just started.
0.5 Means that the action is in the middle.
1 Means that the action is over.

Parameters

time	A value between 0 and 1.

Reimplemented from Action.

var update ( var time )

overridevirtual

Called once per frame.

time a value between 0 and 1.

For example:

0 Means that the action just started.
0.5 Means that the action is in the middle.
1 Means that the action is over.

Parameters

time	A value between 0 and 1.

Reimplemented from Action.

local update ( local time )

overridevirtual

Called once per frame.

time a value between 0 and 1.

For example:

0 Means that the action just started.
0.5 Means that the action is in the middle.
1 Means that the action is over.

Parameters

time	A value between 0 and 1.

Reimplemented from Action.

Member Data Documentation

CC_CONSTRUCTOR_ACCESS __pad0__

float _angleX

protected

var _angleX

protected

local _angleX

protected

float _angleZ

protected

var _angleZ

protected

local _angleZ

protected

float _deltaAngleX

protected

var _deltaAngleX

protected

local _deltaAngleX

protected

float _deltaAngleZ

protected

var _deltaAngleZ

protected

local _deltaAngleZ

protected

float _deltaRadius

protected

var _deltaRadius

protected

local _deltaRadius

protected

float _radDeltaX

protected

var _radDeltaX

protected

local _radDeltaX

protected

float _radDeltaZ

protected

var _radDeltaZ

protected

local _radDeltaZ

protected

float _radius

protected

float _radX

protected

var _radX

protected

local _radX

protected

float _radZ

protected

var _radZ

protected

local _radZ

protected

The documentation for this class was generated from the following file:

/Users/minggo/SourceCode/cocos2d-x/cocos/2d/CCActionCamera.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
