Scales a Node object to a zoom factor by modifying it's scale attribute. More...

#include <CCActionInterval.h>

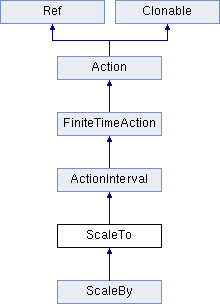

Inheritance diagram for ScaleTo:

Public Member Functions
virtual ScaleTo *	clone () const override
	returns a clone of action More...

var	clone ()
	returns a clone of action More...

local	clone ()
	returns a clone of action More...

virtual ScaleTo *	reverse (void) const override
	returns a new action that performs the exactly the reverse action More...

var	reverse ()
	returns a new action that performs the exactly the reverse action More...

local	reverse ()
	returns a new action that performs the exactly the reverse action More...

virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...

var	startWithTarget ( var target)
	called before the action start. It will also set the target. More...

local	startWithTarget ( local target)
	called before the action start. It will also set the target. More...

virtual void	update (float time) override
var	update ( var time)
local	update ( local time)
bool	initWithDuration (float duration, float sx, float sy)
	initializes the action with and X factor and a Y factor More...

var	initWithDuration ( var duration, var sx, var sy)
	initializes the action with and X factor and a Y factor More...

local	initWithDuration ( local duration, local sx, local sy)
	initializes the action with and X factor and a Y factor More...

bool	initWithDuration (float duration, float sx, float sy, float sz)
	initializes the action with X Y Z factor More...

local	initWithDuration ( local duration, local sx, local sy, local sz)
	initializes the action with X Y Z factor More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

var	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
local	setAmplitudeRate ( local amp)
float	getAmplitudeRate (void)
local	getAmplitudeRate ()
virtual bool	isDone (void) const override
	return true if the action has finished More...

var	isDone ()
	return true if the action has finished More...

local	isDone ()
	return true if the action has finished More...

virtual void	step (float dt) override
Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	get duration in seconds of the action More...

var	getDuration ()
	get duration in seconds of the action More...

local	getDuration ()
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

var	setDuration ( var duration)
	set duration in seconds of the action More...

local	setDuration ( local duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

Node *	getTarget () const
var	getTarget ()
local	getTarget ()
void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
var	getOriginalTarget ()
local	getOriginalTarget ()
void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

var	setOriginalTarget ( var originalTarget)
	Set the original target, since target can be nil. More...

local	setOriginalTarget ( local originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
var	getTag ()
local	getTag ()
void	setTag (int tag)
var	setTag ( var tag)
local	setTag ( local tag)
virtual	~Action ()
var	~Action ()
local	~Action ()
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Releases the ownership immediately. More...

Ref *	autorelease ()
	Releases the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	returns a copy of the Ref. More...

var	copy ()
	returns a copy of the Ref. More...

local	copy ()
	returns a copy of the Ref. More...

Static Public Member Functions
static ScaleTo *	create (float duration, float s)
	creates the action with the same scale factor for X and Y More...

static ScaleTo *	create (float duration, float sx, float sy)
	creates the action with and X factor and a Y factor More...

var	create ( var duration, var sx, var sy)
	creates the action with and X factor and a Y factor More...

local	create ( local duration, local sx, local sy)
	creates the action with and X factor and a Y factor More...

static ScaleTo *	create (float duration, float sx, float sy, float sz)
	creates the action with X Y Z factor More...

local	create ( local duration, local sx, local sy, local sz)
	creates the action with X Y Z factor More...

Public Attributes
CC_CONSTRUCTOR_ACCESS	__pad0__: ScaleTo() {} virtual ~ScaleTo() {} bool initWithDuration(float duration
local	__pad0__: ScaleTo() {} virtual ~ScaleTo() {} bool initWithDuration(float duration
CC_CONSTRUCTOR_ACCESS float	s
Public Attributes inherited from ActionInterval
CC_CONSTRUCTOR_ACCESS	__pad0__: bool initWithDuration(float d)
local	__pad0__: bool initWithDuration(float d)
Public Attributes inherited from FiniteTimeAction
CC_CONSTRUCTOR_ACCESS	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
var	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
local	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
Public Attributes inherited from Action
CC_CONSTRUCTOR_ACCESS	__pad0__: Action()

Protected Attributes
float	_scaleX
var	_scaleX
local	_scaleX
float	_scaleY
var	_scaleY
local	_scaleY
float	_scaleZ
var	_scaleZ
local	_scaleZ
float	_startScaleX
var	_startScaleX
local	_startScaleX
float	_startScaleY
var	_startScaleY
local	_startScaleY
float	_startScaleZ
var	_startScaleZ
local	_startScaleZ
float	_endScaleX
var	_endScaleX
local	_endScaleX
float	_endScaleY
var	_endScaleY
local	_endScaleY
float	_endScaleZ
var	_endScaleZ
local	_endScaleZ
float	_deltaX
var	_deltaX
local	_deltaX
float	_deltaY
var	_deltaY
local	_deltaY
float	_deltaZ
var	_deltaZ
local	_deltaZ
Protected Attributes inherited from ActionInterval
float	_elapsed
var	_elapsed
local	_elapsed
bool	_firstTick
var	_firstTick
local	_firstTick
Protected Attributes inherited from Action
Node *	_originalTarget
Node *	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

var	_referenceCount
	count of references More...

local	_referenceCount
	count of references More...

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

	Ref ()
	Constructor. More...

Detailed Description

Scales a Node object to a zoom factor by modifying it's scale attribute.

Warning: This action doesn't support "reverse"; The physics body contained in Node doesn't support this action.

Member Function Documentation

virtual ScaleTo* clone ( ) const

overridevirtual

returns a clone of action

Reimplemented from ActionInterval.

Reimplemented in ScaleBy.

var clone ( )

overridevirtual

returns a clone of action

Reimplemented from ActionInterval.

Reimplemented in ScaleBy.

local clone ( )

overridevirtual

returns a clone of action

Reimplemented from ActionInterval.

Reimplemented in ScaleBy.

static ScaleTo* create	(	float	duration,
		float	s
	)

static

creates the action with the same scale factor for X and Y

Parameters

duration in seconds

var create	(	var	duration,
		var	s
	)

static

creates the action with the same scale factor for X and Y

Parameters

duration in seconds

local create	(	local	duration,
		local	s
	)

static

creates the action with the same scale factor for X and Y

Parameters

duration in seconds

static ScaleTo* create	(	float	duration,
		float	sx,
		float	sy
	)

static

creates the action with and X factor and a Y factor

Parameters

duration in seconds

var create	(	var	duration,
		var	sx,
		var	sy
	)

static

creates the action with and X factor and a Y factor

Parameters

duration in seconds

local create	(	local	duration,
		local	sx,
		local	sy
	)

static

creates the action with and X factor and a Y factor

Parameters

duration in seconds

static ScaleTo* create	(	float	duration,
		float	sx,
		float	sy,
		float	sz
	)

static

creates the action with X Y Z factor

Parameters

duration in seconds

var create	(	var	duration,
		var	sx,
		var	sy,
		var	sz
	)

static

creates the action with X Y Z factor

Parameters

duration in seconds

local create	(	local	duration,
		local	sx,
		local	sy,
		local	sz
	)

static

creates the action with X Y Z factor

Parameters

duration in seconds

bool initWithDuration	(	float	duration,
		float	sx,
		float	sy
	)

initializes the action with and X factor and a Y factor

Parameters

duration in seconds

var initWithDuration	(	var	duration,
		var	sx,
		var	sy
	)

initializes the action with and X factor and a Y factor

Parameters

duration in seconds

local initWithDuration	(	local	duration,
		local	sx,
		local	sy
	)

initializes the action with and X factor and a Y factor

Parameters

duration in seconds

bool initWithDuration	(	float	duration,
		float	sx,
		float	sy,
		float	sz
	)

initializes the action with X Y Z factor

Parameters

duration in seconds

var initWithDuration	(	var	duration,
		var	sx,
		var	sy,
		var	sz
	)

initializes the action with X Y Z factor

Parameters

duration in seconds

local initWithDuration	(	local	duration,
		local	sx,
		local	sy,
		local	sz
	)

initializes the action with X Y Z factor

Parameters

duration in seconds

virtual ScaleTo* reverse ( void ) const

overridevirtual

returns a new action that performs the exactly the reverse action

Reimplemented from ActionInterval.

Reimplemented in ScaleBy.

var reverse ( )

overridevirtual

returns a new action that performs the exactly the reverse action

Reimplemented from ActionInterval.

Reimplemented in ScaleBy.

local reverse ( )

overridevirtual

returns a new action that performs the exactly the reverse action

Reimplemented from ActionInterval.

Reimplemented in ScaleBy.

virtual void startWithTarget ( Node * target )

overridevirtual

called before the action start. It will also set the target.

Reimplemented from ActionInterval.

Reimplemented in ScaleBy.

var startWithTarget ( var target )

overridevirtual

called before the action start. It will also set the target.

Reimplemented from ActionInterval.

Reimplemented in ScaleBy.

local startWithTarget ( local target )

overridevirtual

called before the action start. It will also set the target.

Reimplemented from ActionInterval.

Reimplemented in ScaleBy.

virtual void update ( float time )

overridevirtual

Parameters

time	in seconds

Reimplemented from Action.

var update ( var time )

overridevirtual

Parameters

time	in seconds

Reimplemented from Action.

local update ( local time )

overridevirtual

Parameters

time	in seconds

Reimplemented from Action.

Member Data Documentation

CC_CONSTRUCTOR_ACCESS __pad0__

var __pad0__

local __pad0__

float _deltaX

protected

var _deltaX

protected

local _deltaX

protected

float _deltaY

protected

var _deltaY

protected

local _deltaY

protected

float _deltaZ

protected

var _deltaZ

protected

local _deltaZ

protected

float _endScaleX

protected

var _endScaleX

protected

local _endScaleX

protected

float _endScaleY

protected

var _endScaleY

protected

local _endScaleY

protected

float _endScaleZ

protected

var _endScaleZ

protected

local _endScaleZ

protected

float _scaleX

protected

var _scaleX

protected

local _scaleX

protected

float _scaleY

protected

var _scaleY

protected

local _scaleY

protected

float _scaleZ

protected

var _scaleZ

protected

local _scaleZ

protected

float _startScaleX

protected

var _startScaleX

protected

local _startScaleX

protected

float _startScaleY

protected

var _startScaleY

protected

local _startScaleY

protected

float _startScaleZ

protected

var _startScaleZ

protected

local _startScaleZ

protected

CC_CONSTRUCTOR_ACCESS float s

var s

local s

The documentation for this class was generated from the following file:

/Users/huabingxu/work/cocos2d-x/cocos/2d/CCActionInterval.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

Member Data Documentation
