#include <CCActionTiledGrid.h>

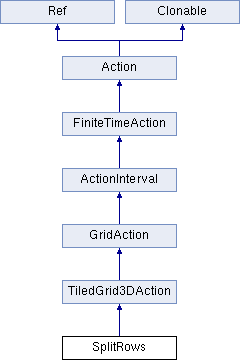

Inheritance diagram for SplitRows:

Public Member Functions
virtual SplitRows *	clone () const override
	returns a clone of action More...

virtual void	update (float time) override
	called once per frame. More...

virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...

Public Member Functions inherited from TiledGrid3DAction
Quad3	getTile (const Vec2 &position) const
	returns the tile that belongs to a certain position of the grid More...

Quad3	tile (const Vec2 &position)
Quad3	getOriginalTile (const Vec2 &position) const
	returns the non-transformed tile that belongs to a certain position of the grid More...

Quad3	originalTile (const Vec2 &position)
void	setTile (const Vec2 &position, const Quad3 &coords)
	sets a new tile to a certain position of the grid More...

virtual GridBase *	getGrid ()
	returns the grid More...

Public Member Functions inherited from GridAction
virtual GridAction *	reverse () const override
	returns a new action that performs the exactly the reverse action More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

var	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
local	setAmplitudeRate ( local amp)
float	getAmplitudeRate (void)
local	getAmplitudeRate ()
virtual bool	isDone (void) const override
	return true if the action has finished More...

var	isDone ()
	return true if the action has finished More...

local	isDone ()
	return true if the action has finished More...

virtual void	step (float dt) override
Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	get duration in seconds of the action More...

var	getDuration ()
	get duration in seconds of the action More...

local	getDuration ()
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

var	setDuration ( var duration)
	set duration in seconds of the action More...

local	setDuration ( local duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

Node *	getTarget () const
var	getTarget ()
local	getTarget ()
void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
var	getOriginalTarget ()
local	getOriginalTarget ()
void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

var	setOriginalTarget ( var originalTarget)
	Set the original target, since target can be nil. More...

local	setOriginalTarget ( local originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
var	getTag ()
local	getTag ()
void	setTag (int tag)
var	setTag ( var tag)
local	setTag ( local tag)
virtual	~Action ()
var	~Action ()
local	~Action ()
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Releases the ownership immediately. More...

Ref *	autorelease ()
	Releases the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	returns a copy of the Ref. More...

var	copy ()
	returns a copy of the Ref. More...

local	copy ()
	returns a copy of the Ref. More...

Static Public Member Functions
static SplitRows *	create (float duration, unsigned int rows)
	creates the action with the number of rows to split and the duration More...

Static Public Member Functions inherited from TiledGrid3DAction
static TiledGrid3DAction *	create (float duration, const Size &gridSize)
	creates the action with size and duration More...

Public Attributes
CC_CONSTRUCTOR_ACCESS	__pad0__: SplitRows() {} virtual ~SplitRows() {} bool initWithDuration(float duration
CC_CONSTRUCTOR_ACCESS unsigned int	rows
Public Attributes inherited from GridAction
CC_CONSTRUCTOR_ACCESS	__pad0__: GridAction() {} virtual ~GridAction() {} bool initWithDuration(float duration
CC_CONSTRUCTOR_ACCESS const Size &	gridSize
Public Attributes inherited from ActionInterval
CC_CONSTRUCTOR_ACCESS	__pad0__: bool initWithDuration(float d)
local	__pad0__: bool initWithDuration(float d)
Public Attributes inherited from FiniteTimeAction
CC_CONSTRUCTOR_ACCESS	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
var	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
local	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
Public Attributes inherited from Action
CC_CONSTRUCTOR_ACCESS	__pad0__: Action()

Protected Attributes
unsigned int	_rows
Size	_winSize
Protected Attributes inherited from GridAction
Size	_gridSize
var	_gridSize
local	_gridSize
NodeGrid *	_gridNodeTarget
var	_gridNodeTarget
local	_gridNodeTarget
Protected Attributes inherited from ActionInterval
float	_elapsed
var	_elapsed
local	_elapsed
bool	_firstTick
var	_firstTick
local	_firstTick
Protected Attributes inherited from Action
Node *	_originalTarget
Node *	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

var	_referenceCount
	count of references More...

local	_referenceCount
	count of references More...

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Member Functions inherited from GridAction
void	cacheTargetAsGridNode ()
var	cacheTargetAsGridNode ()
local	cacheTargetAsGridNode ()
Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

	Ref ()
	Constructor. More...

Detailed Description

SplitRows action.

Member Function Documentation

virtual SplitRows* clone ( ) const

overridevirtual

returns a clone of action

Reimplemented from TiledGrid3DAction.

static SplitRows* create	(	float	duration,
		unsigned int	rows
	)

static

creates the action with the number of rows to split and the duration

Parameters

duration in seconds

virtual void startWithTarget ( Node * target )

overridevirtual

called before the action start. It will also set the target.

Reimplemented from GridAction.

virtual void update ( float time )

overridevirtual

called once per frame.

time a value between 0 and 1

For example:

0 means that the action just started
0.5 means that the action is in the middle
1 means that the action is over

Reimplemented from Action.

Member Data Documentation

CC_CONSTRUCTOR_ACCESS __pad0__

unsigned int _rows

protected

Size _winSize

protected

CC_CONSTRUCTOR_ACCESS unsigned
int rows

The documentation for this class was generated from the following file:

/Users/huabingxu/work/cocos2d-x/cocos/2d/CCActionTiledGrid.h
